Help CenterHigh Brightness SMD3528 1R1G1B 244*244 P7.62 Led Screen Module
Related Products
-
Full Color Outdoor Ph10 RGB Led Display ModuleUS$ 700 - 2,500MOQ: 1 Square Meter -
Ph16 Ph20 Ph25 2R1G1B Virtual Pixel Led ModuleUS$ 600 - 3,000MOQ: 1 Square Meter
-
Led Rgb Indoor High Resolution Led PanelUS$ 1 - 100MOQ: 1 Piece
-
in Russia p6 Waterproof Led ModuleUS$ 60 - 70MOQ: 300 Pieces
-
Indoor P4mm Led Module High Refresh Rate 2000nits Full ColorUS$ 45 - 50MOQ: 3 Square Meters
Specifications
high brightness SMD3528 1R1G1B 244*244 p7.62 led screen module1.high definition
2.no gap
3.CE,ROHS
4.high brightness
high brightness SMD3528 1R1G1B 244*244 p7.62 led screen module
Why choose our company?
1.long time experience.
12 years of experience in LEDs encapsulation, and 8 years R&D and production experience in LED full color display screens.
2.High quality.
Our led are encapsutate by us . We control the led lamp quality the core of led display .That influence the life span of the screen directly. And our product have passed with CE,CCC,ROSH,FCC ,ISO2000. 80,000 no dust factory.
3.good afer-sales service.
At any time , if you have problem you could give us a call or message . we will back solution in time.
1.the led screen function
1).Our full color LED displays are widely used in commercial advertising, concert entertainment industry, financial industry, communications, power sector, traffic, stadium, plaza, school, airport, bus station etc., for advertising and displaying messages.
2).Vivid and exact picture, minimum noise, advanced test equipment, support any pc operationsystem and play a variety of information like video, word, flash, music, clock, graph etc. LED screen Cabinet design for easy install and dismantle.
-----------------------------------------------------------------------------------------------------------------

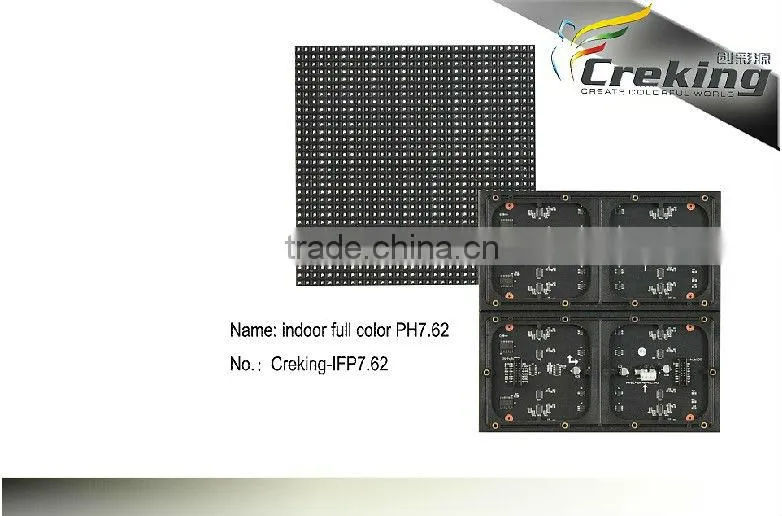

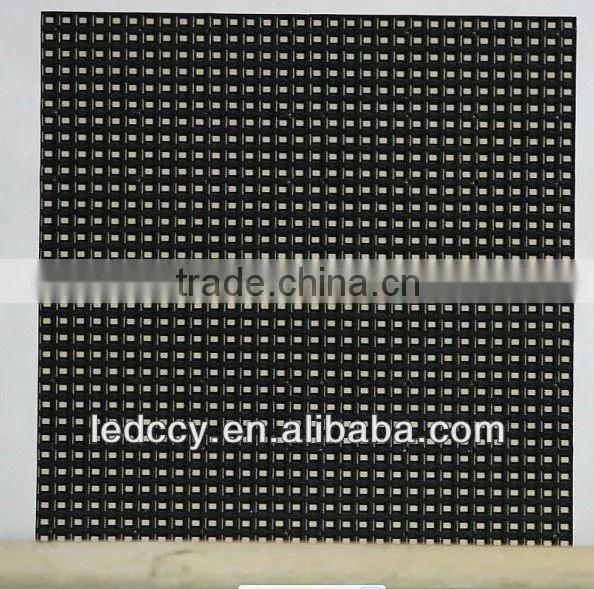

2.Led screen module:
---------------------------------------------------------------------------------------------------------------
3.led screen specifications
Product No. |
high brightness SMD3528 1R1G1B 244*244 p7.62 led screen module |
Physical pixel pitch |
7.62mm |
Physical pixels per sqm |
17,199 |
Pixel constitution |
1R1PG1PB |
Cabinet size |
732mm * 732mm |
Cabinet weight |
15kg |
Cabinet resolution |
96 * 96pixels |
Best viewing distance |
5-200meter |
Max. power consumption |
1000W |
Ave.power consumption |
250W |
Brightness |
≥2500CD/m2 |
Driving method |
1/8 scan, current driving |
Best viewing angle |
Horizontal: ≥140°; Vertical: ≥50° |
Frame frequency |
≥60Hz/s |
Refresh rate |
adjustable from 10Hz to 3000Hz |
Display color |
281 trillions |
Input voltage |
AC 110 or AC220 V ±10% ,50 to 60Hz |
MTBF |
50,000 hours |
Life-span |
100,000 hours |
Ingress protection |
Front IP65 |
Working environment |
Temperature: -20°c-+50°c; Humidity: 10%-90%RH |
4.Factory and Certifecation
5.Reception and office
6.Manufacture Equipment
We are professinal as we have a whole line of led production. from led lamp encapulation ,module produce to the whole led screen.
Automatic die bonders
Automatic wire donders
Automatic spectrum and color separation mathines
Automatic inserting line
Other Mathines. like automatic glue pouring mathine,welding production line,automatic SMT production line, Wave soldering machine,automatic taping machine ,differential scanning system ,led optic-electrical test system ,Chips detection system .etc.

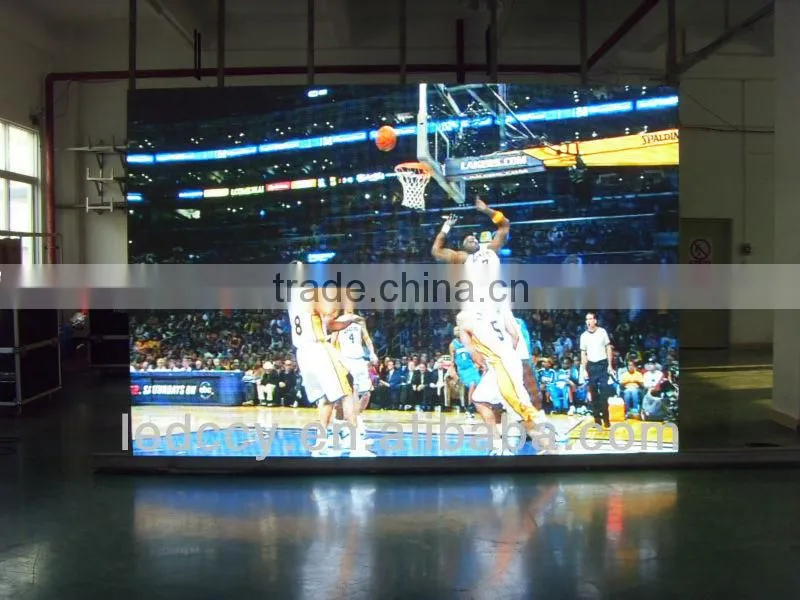

7.Products aging
Module aging : module aging is for find some problem in welding .After that , some do not welding or virtual welding will be found in here.

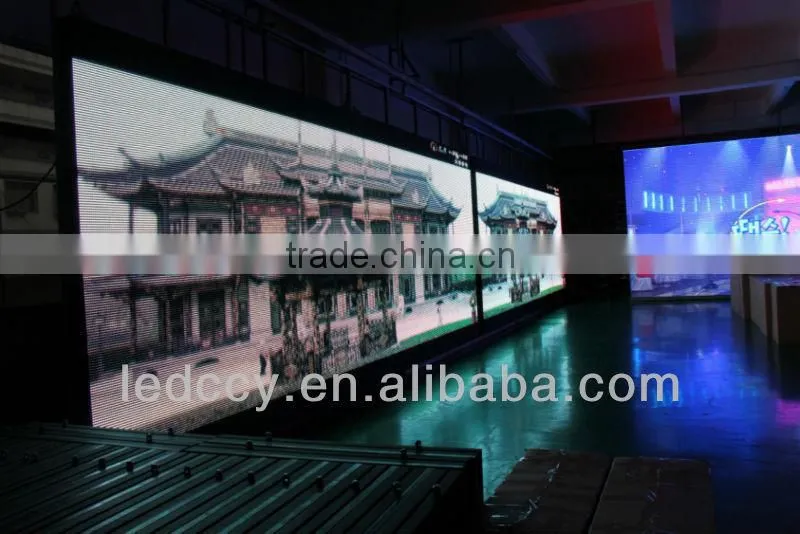

while led screen aging
