Full Color Outdoor Ph10 RGB Led Display Module

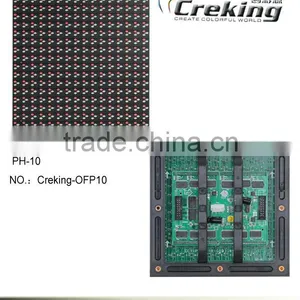

Full Color Outdoor Ph10 RGB Led Display Module thumbnail-1
Full Color Outdoor Ph10 RGB Led Display Module photo-1
US$ 700 - 2,500 MOQ: 1 Square Meter
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Creking
Model Number:
10mm
Contact Supplier Request Quote Chat Now
Shenzhen CreKing Electronics Technology Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Creking
Model Number 10mm
Usage Outdoor
Tube Chip Color Full Color
Display Function Video
Pixels 10mm
Screen Dimension Customize

Specifications

full color outdoor ph10 RGB led display module
1.wallpaper advertising product,
2 vivid image
3.CE,ROHS
panel

------------------------------------------------------------------------------------------------------------------

full color outdoor ph10 RGB led display module

1).Our full color LED displays are widely used in commercial advertising, concert entertainment industry, financial industry, communications, power sector, traffic, stadium, plaza, school, airport, bus station etc., for advertising and displaying  messages.

  2).Vivid and exact picture, minimum noise, advanced test equipment, support any pc operationsystem and play a variety of information like video, word, flash, music, clock, graph etc. LED  screen Cabinet design for easy install and dismantle.

-----------------------------------------------------------------------------------------------------------------

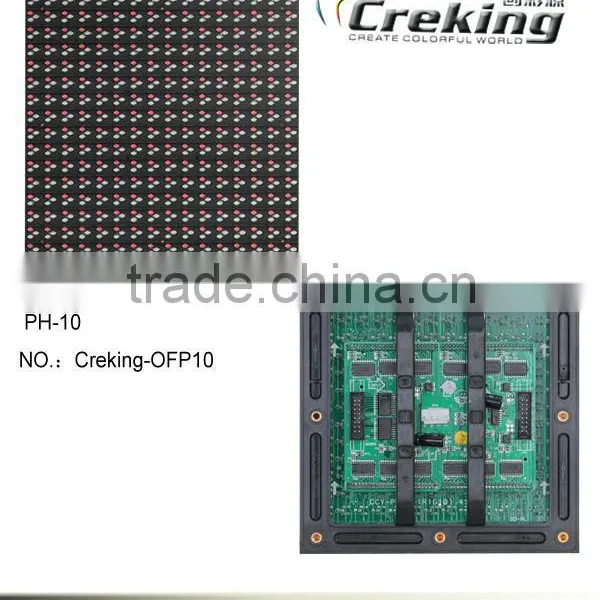

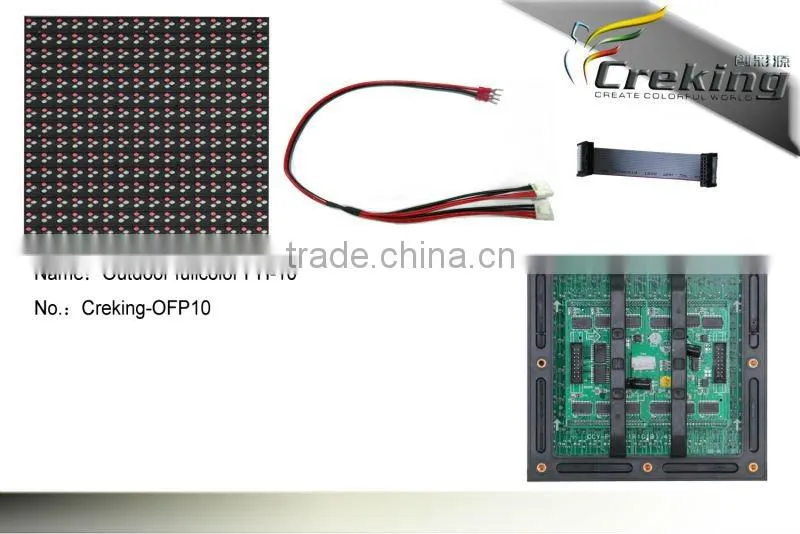

Led module:

full color outdoor ph10 RGB led display module





---------------------------------------------------------------------------------------------------------------

full color outdoor ph10 RGB led display module  feature





LED  lamps Parameters

Led chip brand

 R:Epstar G:Silan  B:Silan

Led Chip size

 R:10mil  G:12mil  B:12mil

View angle

 140°/50°

Luminance



 R:990-1210mcd

 G:1980-2420mcd

 B:495-605mcd



        Wavelength



 R:625-630nm

 G:520-525nm

 B:465-470nm







LED Modules Parameters













Enscapulation

 DIP346

 Physical pixel pitch

 10mm

 Virtual pixel pitch

 no

 Pixel configuration

 1R1G1B

 Colors

 1024*1024*1024=1073741824

 Module resolution

  16 dots *16 dots

 Module size

 160mm*160mm

 Control IC

 MBI5024

 Deconstruction

Lamp board seperate with drive board

 Module Wight

 1.9kg









 LED carbinets Parameters









 Standard Cabinet  size

960mm * 960mm*160mm

 Cabinet weight

80kg

 Cabinet resolution

96 * 96 pixels

 Module Quanity

 6pcs*6pcs=36pcs

 Cabinet Pixel

 9,216dots

 Carbinet Material

 Iron

 Power supplier

 Meanwell

Max. power consumption

 1200W

Ave.power consumption

400W











 Led display Parameters





















 Brightness

≥7600CD/m2

 Driving method

1/4 scan,constant current

 Best viewing angle

Horizontal: ≥140°; Vertical: ≥50°

 Frame frequency

≥60Hz/s

Refresh rate

adjustable from 10Hz to 3000Hz

Display color

281 trillions

 Input voltage

AC 110 or AC220 V ±10% ,50 to 60Hz

MTBF

5,000 hours

Life-span

100,000 hours

Ingress protection

Front IP65    back44

 Working environment

Temperature: -20°c-+50°c; Humidity: 10%-90%RH

 Information source

 Many kinds of signal access: can input TV signals ,DVD signals , DVI, S-VIDEO, RGB, VGA, and so on.

Protection

 Waterproof , lighting protection,  corrupt resistant

 Screen Configuration

 Screen composed of the cabinets, cabinets composed of the modules and so on.

 Information
post and management

 Can set up dynamic characters& graphics, manifest manner &content ,can automatically draw and send information

 System management
software

 Adopt the long-distance  control &management mode ,can set up the work mode,work state and power limit ,











 ------------------------------------------------------------------------------------------------------------

led display screen picture

full color outdoor ph10 RGB led display module



Factory picture

full color outdoor ph10 RGB led display module full color outdoor ph10 RGB led display module
