Home > Consumer Electronics > LED Display > Indoor LED Display > SMD 3 in 1, 1G1R1B P8 Concert Led Display Screen

SMD 3 in 1, 1G1R1B P8 Concert Led Display Screen

Negotiable MOQ: 1 Square Meter (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Hunan, China

Brand Name:

MHG

Model Number:

PH8

Contact Supplier Request Quote Chat Now

Hunan Minghe Opto Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Changsha or any port in China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hunan, China

Brand Name MHG

Model Number PH8

Usage Indoor

Tube Chip Color Full Color

Display Function Video

Pixels Other, 8mm

Screen Dimension 256*128mm

Specifications

concert led display screen
SMD 3 in 1, 1G1R1B

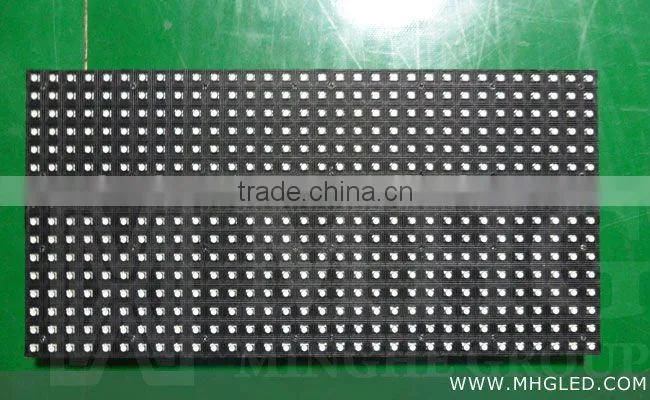

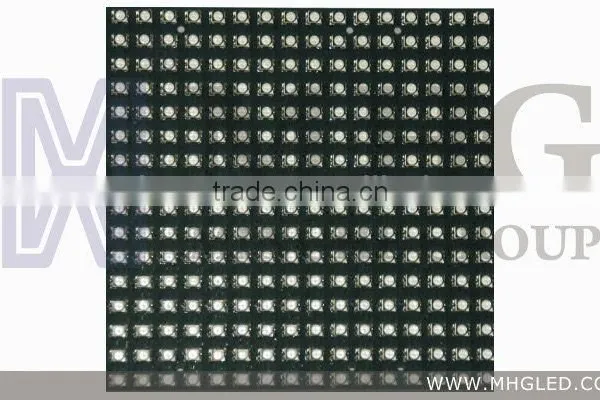

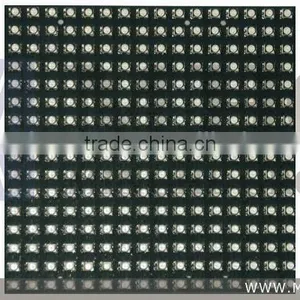

module size: 256*128mm
IP31, CE & ROHS

MHG is the biggest professional manufacturer of LED displays in China Southcentre.The manufacturing products include kinds of leds, such as led screens, led lights,varies of stage lighting fixtures and so on, which are widely used for stages,TVs,Studios, Advertisement, shopping malls etc.

P8 concert led display screen is the hot sale product of 2012. It is a kind of SMD 3in1 indoor full color LED display. It is specially designed for the indoor High Definition shows. LED lamp adopts standard 3in1 SMD technology. Every light unit is composed by red, green and blue color so the colors of the display can reach 1.07 billion kinds.

² The indoor LED display can display colorful dynamic and static images in real time with perfect display effect. Thus, this LED display is the most significant display in all indoor full color screens.

² The LED display supports usual VGA and DVI tradational video signal, also specially supports HDMI video signal and so on. In addition, it can receive and display video programs, such as TV programs, VCD or DVD, living show etc.

² The products has high reliability, saturated and uniform color, hight brightness, low consumption, long service life and with wide angel sight. So the SMD full-color 3 in 1 indoor LED display is widely used in many indoor sites, such as show rooms, coffee house, hotel, stage and so on.

Specification and Parameter

Technical DataModel	PH8
Pixel Pitch	8mm
Physical Density(pixels/m²)	15625
LED Shape & Size	SMD 3 in 1
LED Arrangement	1R1G1B
Module Size(mm)	256×128
Module Resolution	32*16
Drive Mode	Dynamic 1/8 Duty Constant Current
Brightness	≥1100cd/m²
Contrast(cd/m²)	≥2000:1
View Angle, 50% Brightness	140°/140°
Minimum View Distance	8m
Grey Scale	10bits/1024levels
Color Capacity	1.07billion
Maximum Power Consumption	780W/m²
Ave.Power Consumption	260W/m²
Operation Power Source	AC90-260V 50-60HZ
Frame Frequency	60-85HZ
Refresh Rate	240-1000HZ
Brightness Adjustment	0-100% 8 levels automatic
Gamma Correction	-5.0-5.0
Correction Scale Level	16bits
Color Temperature	5000-9300K
Brightness Correction	Pixels, Module, Cabinet Correction
Input Source Support	Composite, S-Video,Component,VGA,DVI,HDMI,SDI, HD_SDI
Control Distance	UTP CAT5E:100m;Multi-mode Fiber:50m;Single-mode Fiber:10km
Operating Temperature	-40°C - 65°C
Operating Humidity	10-90%RH
Operating Life Span	100,000Hours
MTBF	5000 Hours
Protection Ratings	IP31
Out of Control Rate	0.01%

Items pictures

Cabinet Selection

Bracket

Simple structure and installation, light weight, smooth, lower cost, suitable for SMD displays.

Simple cabinet

Simple structure, smooth, light weight, anti-rust, anti-corrosion, anti-aging, competive price.

Standard cabinet

Great mechanical strength, smooth, electrostatic powder spraying, anti-rust, anti-corrosion, anti-aging.

Hanging cabinet

Aluminum alloy material, smooth, electrostatic powder spraying, anti-rust, anti-corrosion, anti-aging, waterproof, weight less than iron cabinet.

Installation guide

MHG has an experienced and professional installing team. The professional staff cooperate intendly to ensure that every project shall be completed safely, properly and efficiently.

The modular designed cabinet is easy to assemble and maintain without tools, which meets for hanging and framing installation, adapting to indoor and outdoor environment. Different physical pitch displays(P3/P4.5/P4.8/P5.14/P6/P8/P9/P12) are available in the same cabinet size.

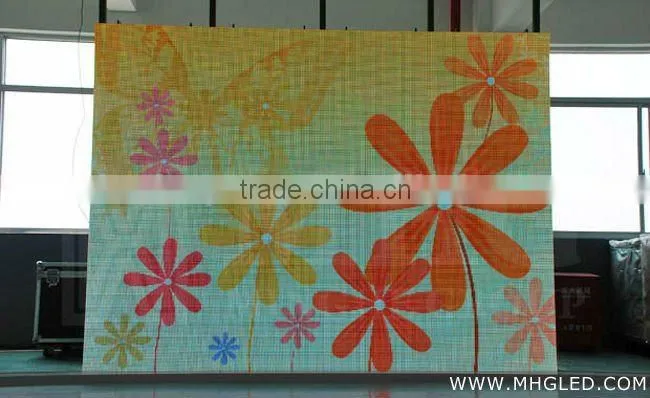

Display effect & Successful case

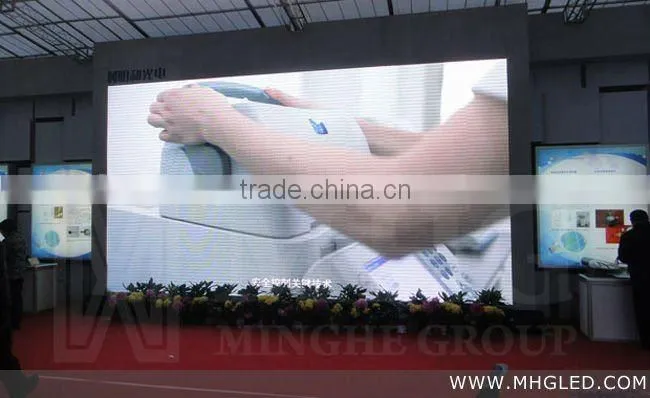

P8 LED display case: 2011 Science and Technology Achievements Transformation Fair

Main Display Size: 4032*2304mm, 9.29 m²

Package

CE & Rohs certified

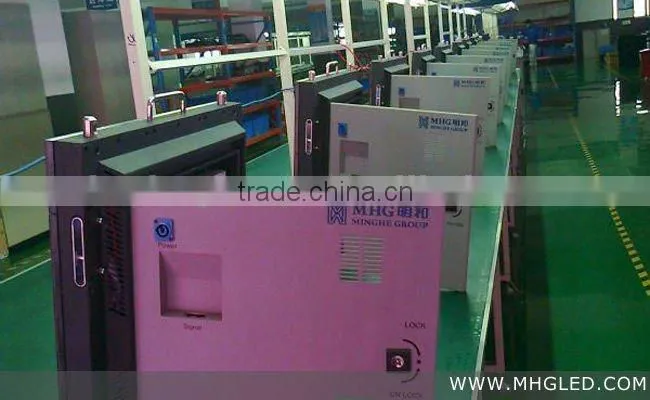

LED Display Workshop

About MHG

Established in 2001, we are a professional manufacturer of stage lights and LED display, we have 6 product lines including LED Lights, Moving heads, cool lights, effect lights, color scrollors and special LED display plant, products are normally CE & Rohs certified.

And we are the member of China Entertainment Technology Association, of Seminar of China Television Broadcasting Institution, and of Society of China Illumination. Our ISO 9001 / 2008-certified factory has more than 200 workers and over 30 R&D staffs.
