Help CenterVideo Broadcasting P16 Digital Display Board
Related Products
Specifications
full color pixel 16 led display boardSMD5050 RGB-B
Outdoor full color
CE & RoHS certified
Professional manufacturer
Video broadcasting P16 digital display board is with high resolution. And it is specially designed for outdoor LED lamp adopting standard SMD5050 encapsulation technologies. Its advantage is high brightness and well radiating. Every light unit is composed of red, blue and green color. And its showing color is up to 10.7 billion. So it can display full color dynamic and static magic perfectly. It supports VGA, DVI, HDMI, TV video, VCD or DVD etc.
P10 outdoor full color led display adopts non-linear calibration technology. And it is characterized by high reliability, high brightness, low power consumption, long life-span, and big viewing angle, so it mainly used in square, outdoor vocal concert, park, market and golf couse, etc.
Application:
government squares,
leisure squares,
exhibition center,
large entertainment squares,
bustling commercial centers,
commercial streets, etc.
Function:
video broadcasting,
information publishing,
network remote centralized controlling.
Specification and Parameter
| Technical DataModel | PH16 |
| Physical Pitch | 16mm |
| LED Type | SMD5050RGB-B |
| Module Size | 256×256mm |
| Physical Density | 3906pixels/m2 |
| Intensity | ≥6500cd |
| Optimum View Distance | 16m |
| Drive Mode | Constant Current 1/2 Scan |
| View Angle | Horizontal 160°, Vertical 120° |
| Working Environment | -20°C - +60°C |
| Input Voltage | AC220V |
| Operating Voltage | DC5V |
| Life-Span | 100,000 Hours |

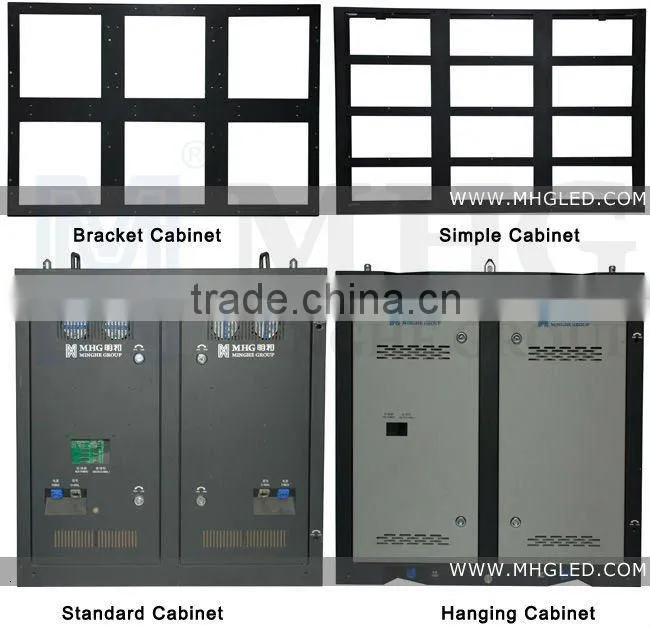

Cabinet Selection
Bracket
Simple structure and installation, light weight, smooth, lower cost, suitable for SMD displays.
Simple cabinet
Simple structure, smooth, light weight, anti-rust, anti-corrosion, anti-aging, competive price.
Standard cabinet
Great mechanical strength, smooth, electrostatic powder spraying, anti-rust, anti-corrosion, anti-aging.
Hanging cabinet
Aluminum alloy material, smooth, electrostatic powder spraying, anti-rust, anti-corrosion, anti-aging, waterproof, weight less than iron cabinet.
Installation guide
MHG has an experienced and professional installing team. The professional staff cooperate intendly to ensure that every project shall be completed safely, properly and efficiently.
The modular designed cabinet is easy to assemble and maintain without tools, which meets for hanging and framing installation, adapting to indoor and outdoor environment. Different physical pitch displays(P3/P4.5/P4.8/P5.14/P6/P8/P9/P12) are available in the same cabinet size.

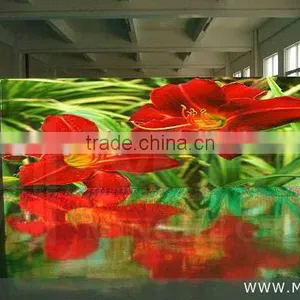

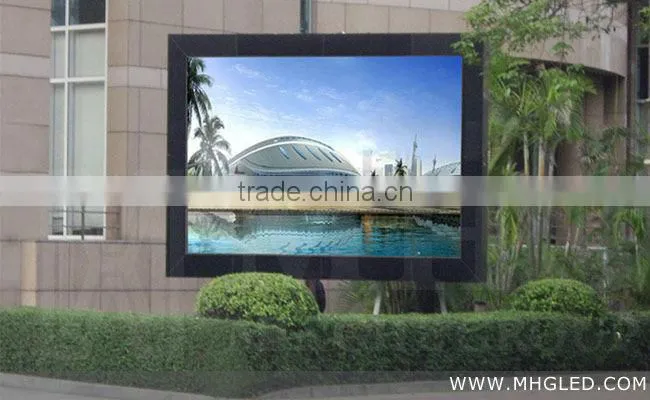

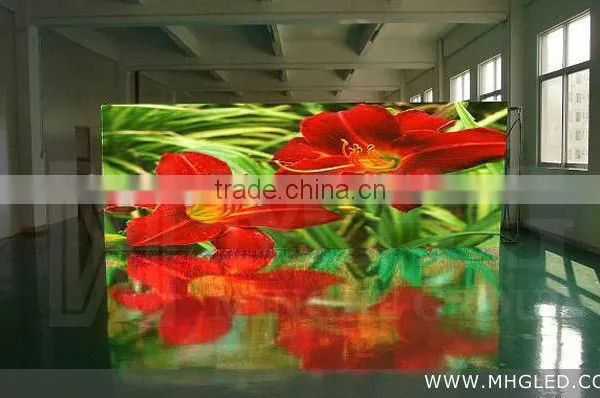

Display effect & Successful case
Package

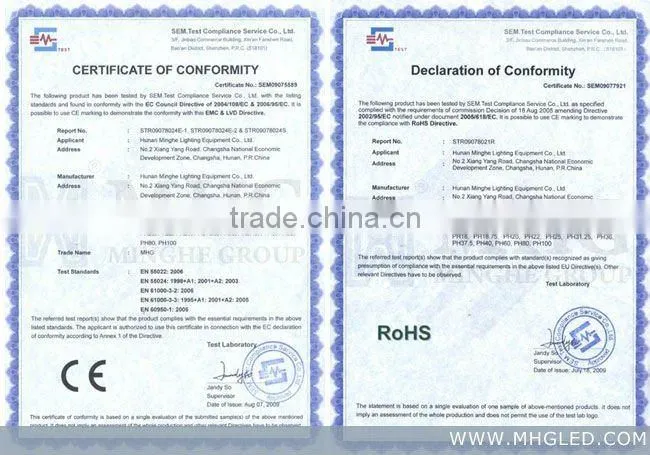

CE & Rohs certified
LED Display Workshop
About MHG
Established in 2001, we are a professional manufacturer of stage lights and LED display, we have 6 product lines including LED Lights, Moving heads, cool lights, effect lights, color scrollors and special LED display plant, products are normally CE & Rohs certified.
And we are the member of China Entertainment Technology Association, of Seminar of China Television Broadcasting Institution, and of Society of China Illumination. Our ISO 9001 / 2008-certified factory has more than 200 workers and over 30 R&D staffs.
Contact us
Company Name: Hunan Minghe Opto Tech Co., Ltd.
Street Address: NO 2. Xiang Yang Road, Changsha National Economic Development Zone,Hunan,China
Zip: 410100
Telephone: 0086-731-85252378
Fax: 0086-731-84029869
Website:
Send Inquiry to This Supplier
