Home > Electrical & Electronics > Sensor > Pressure Sensor > F3N Series Small Rectangle Proximity Sensors, IP 67, Dual LED, Can Be Customized 5VDC Inductance Proximity Switch

F3N Series Small Rectangle Proximity Sensors, IP 67, Dual LED, Can Be Customized 5VDC Inductance Proximity Switch

US$ 50 - 70 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Hunan, China

Model Number:

FN series proximity sensors

Usage:

Position Sensor

Contact Supplier Request Quote Chat Now

Hunan Detail Sensing Technology Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hunan, China

Model Number FN series proximity sensors

Usage Position Sensor

Theory Inductance Sensor

Output Switching Transducer

F3N Series Small Rectangle Proximity Sensors, IP 67, Dual LED, Can Be Customized 5VDC Inductance Proximity Switch

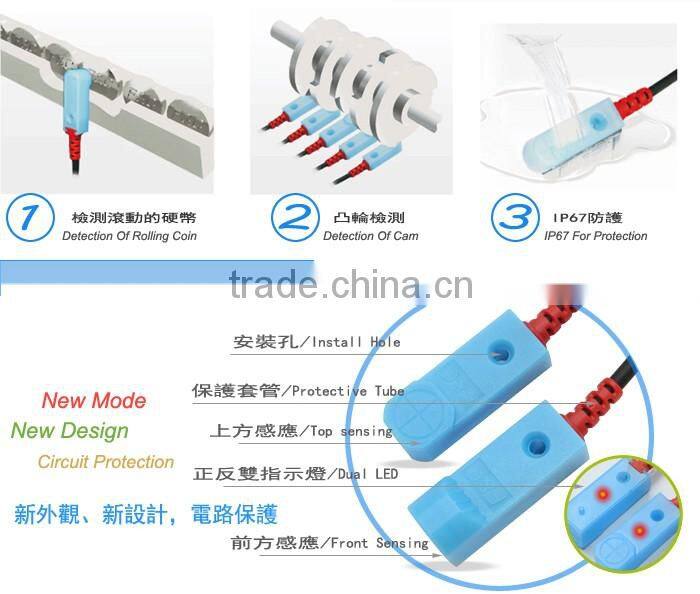

Features

small rectangle F3N series:

Low price, suitable for narrow spance install, easy installing;
Many models, top sense, front sense, two sub-wire, three sub-wire, differnet frequency for choice;
IP67, water-proof, oil-proof, dust-proo;
Can do 5VDC;

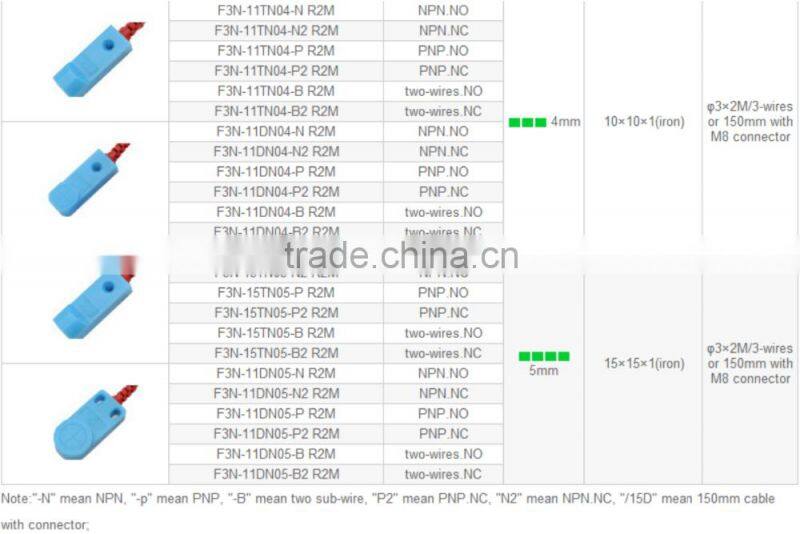

Specifications

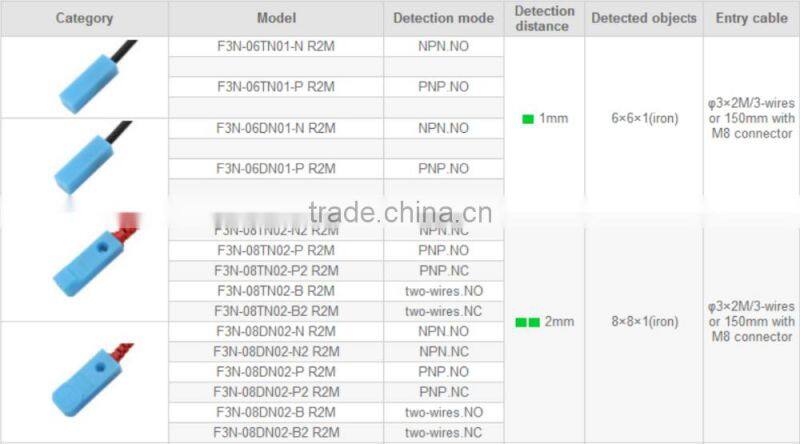

Models	F3N-06 series	F3N-08 series	F3N-11 series	F3N-15 series
Scanning distance	1mm	2mm	4mm	5mm
Recommened distance	0.8mm	1.6mm	3.2mm	4mm
Standard sensing object	6×6×1(iron)	8×8×1(iron)	10×10×1(iron)	15×15×1(iron)
Response frequency	DC:600Hz/ can be customized different frequency
Hysteresis	1O%≤sensing distance
Operating voltage	DC:10~30VDC±10%/ can do 5 VDC
Currents consumption	DC:≤8mA No—Load
Load currents	DC:30V 200mA Max
Leakage currents	DC:≤1.1mA no-Load
Residual votage	DC:≤1.0VDC No-load
Operating temperature	-20°C~+70°C
Material	ABS
Wiring method	φ3×2M/3-wires / φ3×2M/2-wires / φ4×2M/3-wires / φ4×2M/2-wires
Protection degree	IP67
