F3N 3L Square Proximity Sensors, Proximity Switch
US$ 50 - 70
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Model Number:
F3N Series proximity sensor
Usage:
Position Sensor
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
F3C 3L Cylinder Proximity Sensors, Proximity SwitchUS$ 50 - 70MOQ: 1 Piece -
FKC Series Capacitive Proximity Sensors, Proximity SwitchUS$ 50 - 70MOQ: 1 Piece
-
FSCT Series Proximity Sensors, Proximity Switch,Detected Ferrous MetalsUS$ 50 - 70MOQ: 1 Piece
-
FSNA Series Ring Shape Proximity Switches, New Ring Proximity SensorsUS$ 50 - 70MOQ: 1 Piece
-
F3N Series Small Rectangle Proximity Sensors, IP 67, Dual LED, Can Be Customized 5VDC Inductance Proximity SwitchUS$ 50 - 70MOQ: 1 Piece
Place of Origin
Hunan, China
Model Number
F3N Series proximity sensor
Usage
Position Sensor
Theory
Capacitance Sensor
Output
Switching Transducer

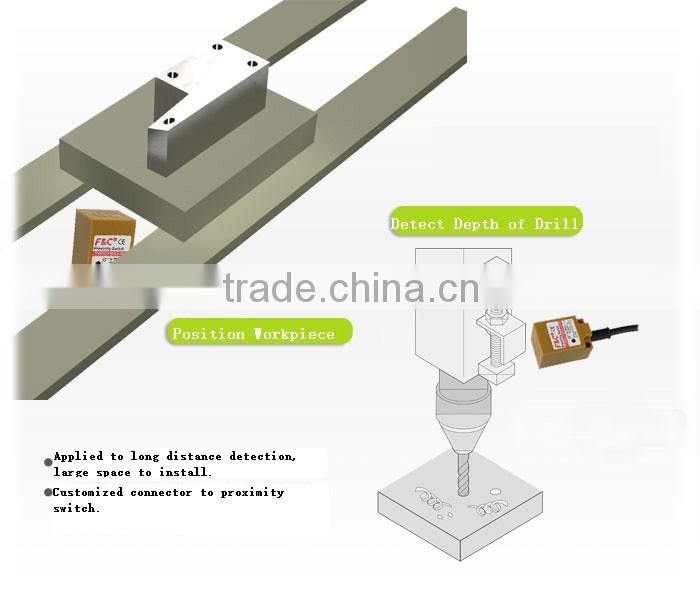

F3N Square Proximity Sensors, Proximity switch
Features
Big square proximity switches-F3N series
- Long range detectiond;
- can customize installingling hole, short circuit protection or else special funtions
Procurement

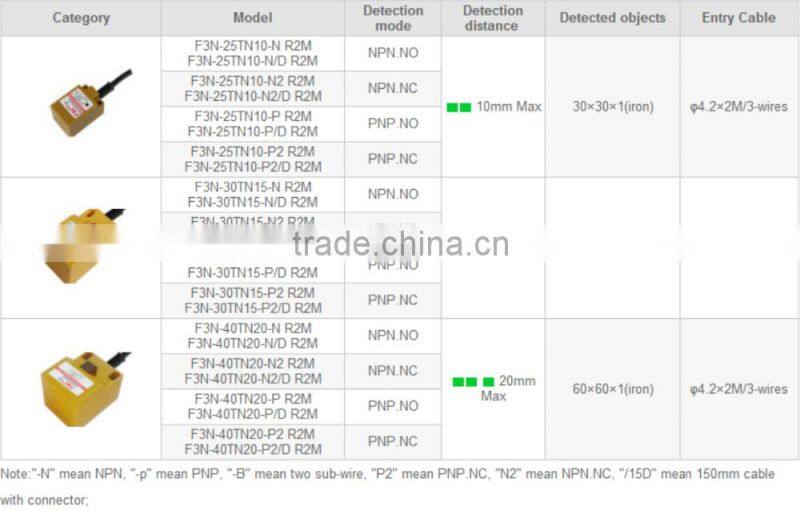

Specifications
| Models | F3N-25TN10 series |
F3N-30TN15 series |
F3N-40TN20 series |
Scanning distance |
10mm | 15mm | 20mm |
Recommened distance |
8mm | 12mm | 16mm |
Standard sensing object |
30×30×1(iron) | 45×45×1(iron) | 60×60×1(iron) |
Response friquency |
DC:600Hz | ||
Hysteresis |
1O%≤sensing distance | ||
Operating voltage |
DC:10~30VDC±10% | ||
Current consumption |
DC:≤8mA No—Load | ||
Load currents |
DC:30V 200mA Max | ||
Leakage currents |
DC:≤1.1mA no-Load | ||
Protection circuit |
Reversed supply ciruit protection,short citcuit protection output | ||
Residual votage |
DC:≤1.0VDC No-load | ||
Operating temperature |
-20°C~+70°C | ||
Material |
ABS | ||
Wiring method |
φ3×2M/3-wires | ||
Protection degree |
IP66 | ||

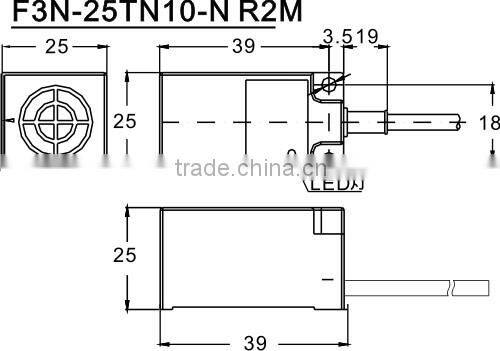

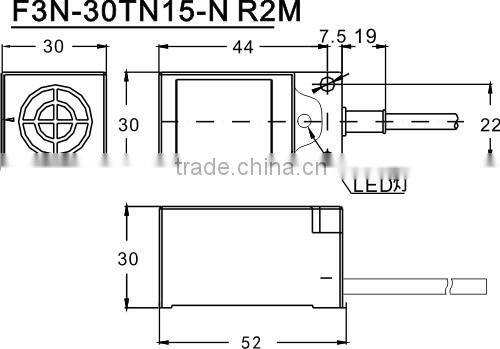

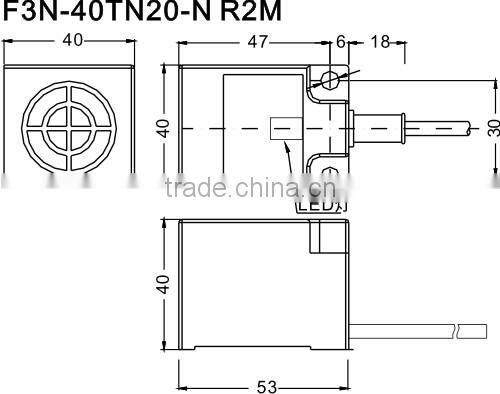

Dimensions

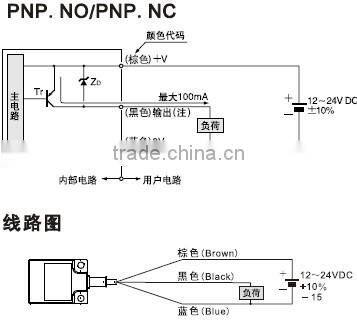

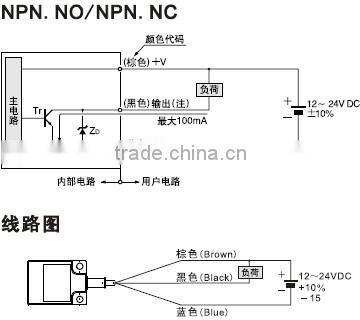

Circuit Diagrams
Packaging & Shipping
Price, Package and Service
1. Price : EXW, FOB, C&F
2. Payment: T/T in advance, PayPal, Western Union.
3. Packing : standard export packing, including instructions and certificate
4. Leading time : 3-10 working days according to order quantity
5. OEM available
6. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
7. 1 year free repair for quality warranty
