FSN/SN/FSND04/05 Series Common Proximity Sensors, Proximity switch
Features
Common type - FSN/SN/FSND04/05 series
- High performance, low price, universal
- Input voltage: 10~30VDC amplifier inside;
- output 200mA,response up to 0.1ms;
- Can do input voltage 5VDC type;
- can customize 5mm, 6mm or 8mm detecting range;
- Anti-temperature 120℃(black color shell);
- Can do M8 connector type

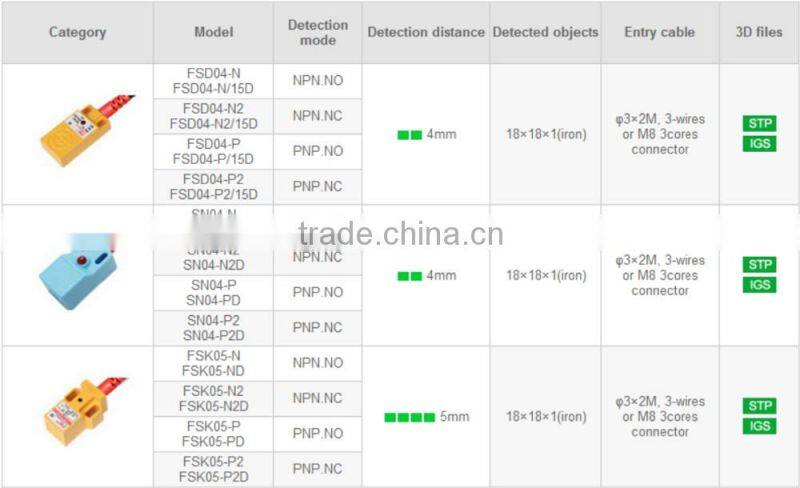

Specifications |
top sense | front sense | front sense | front sense | top sense |
Model |
FSD04 series |
SN04 series |
FSK05 series |
FSN05 series | FSD05 series |
Scanning distance |
4mm | 4mm | 5mm | 5mm | 5mm |
Recommened distance |
3.2mm | 3.2mm | 4.2mm | 4.2mm | 4.2mm |
Standard sensing object |
18×18×1(iron) | 17×17×1(iron) | 18×18×1(iron) | ||
Response friquency |
DC:600Hz 250/second | ||||
Hysteresis |
1O%≤sensing distance | ||||
Operating voltage |
DC:10~30VDC±10% | ||||
Current consumption |
DC:≤8mA No—Load | ||||
Load current |
DC:30V 200mA Max | ||||
Leakage current |
DC:≤1.1mA no-Load | ||||
Residual votage |
DC:≤1.0VDC No-load | ||||
Operating temperature |
-20°C~+70°C(anti-temperature type: 120°C) | ||||
Material |
ABS/PE | ||||
Wiring method |
φ3×2M/3-wires, M8 3cores | ||||
Protection degree |
IP67 | ||||

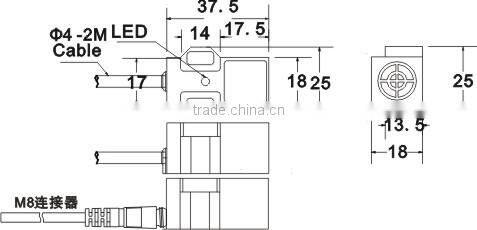

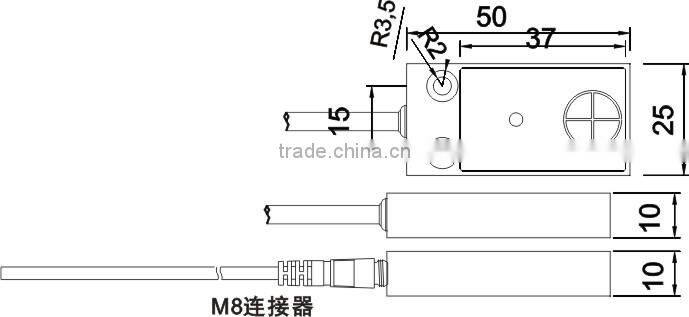

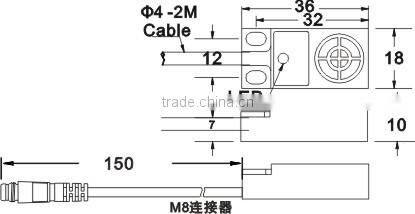

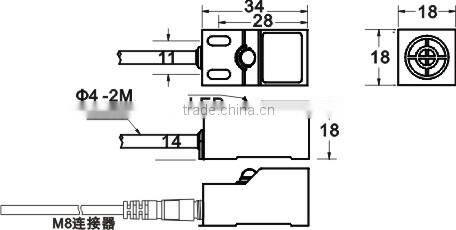

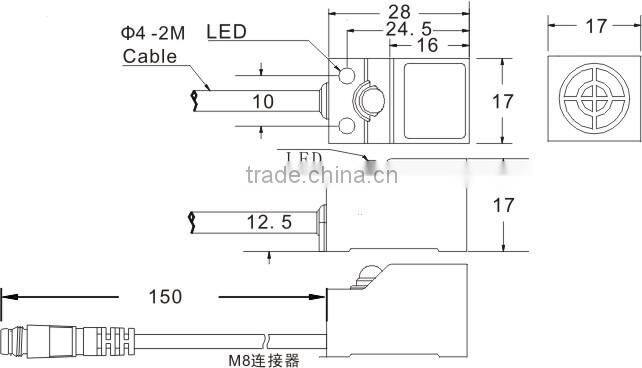

Dimensions
FSD04N-N/N2/P/P2(15D) FSK05-N/N2/PNP2 (D)
SN04-N/N2/P/P2(D) FSN05-N/N2/P/P2(D)
'
FSD05-N/AL(D)

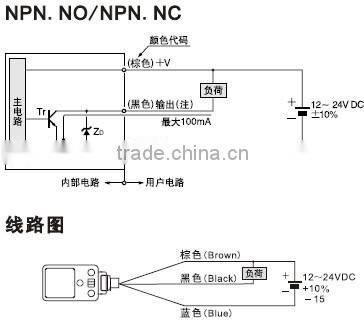

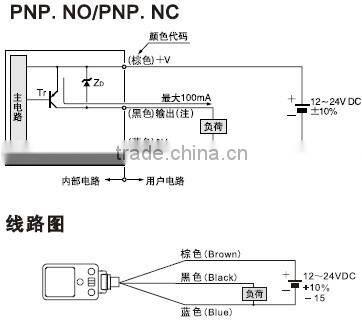

Circuit Diagrams
Price, Package and Service
1. Price : EXW, FOB, C&F
2. Payment: T/T in advance, PayPal, Western Union.
3. Packing : standard export packing, including instructions and certificate
4. Leading time : 3-10 working days according to order quantity
5. OEM available
6. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
7. 1 year free repair for quality warranty
