FKC Series Capacitive Proximity Sensors, Proximity Switch
Features
- Width: 10MM, small structures, detection range is 10MM;
- Three Visual direction, convenience checks;

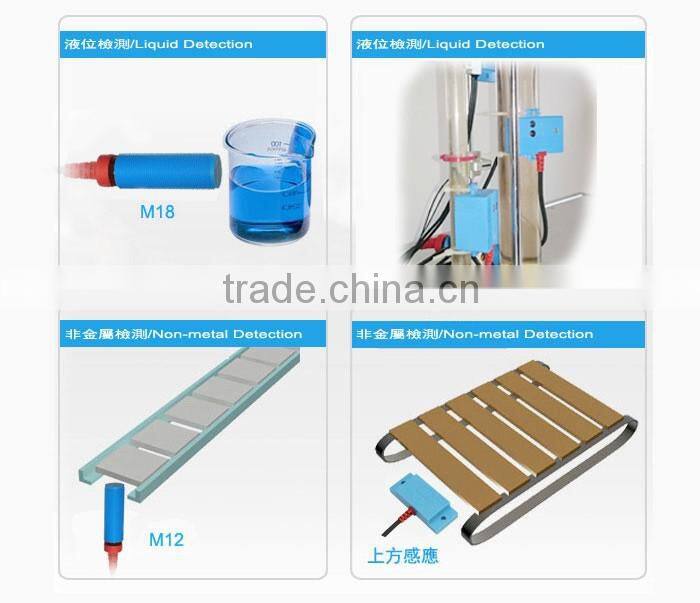

- Detection of liquid level and non-metallic objects;

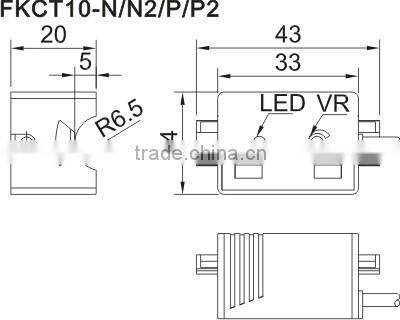

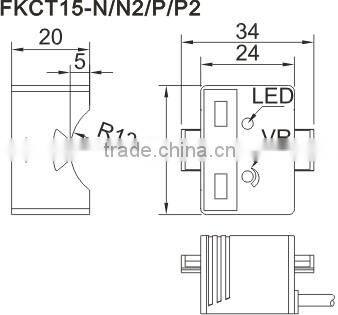

- FKCT10/15 series liquid level inspection of pipelines, provides the 13mm and 26mm2 types of detection distance.
| Models | FKC series | FKCT series |
Standard sensing object |
metal/non-metal | liquid |
Response friquency |
DC:600Hz | 20Hz |
Hysteresis |
1O%≤sensing distance | 1O%≤sensing distance |
Operating voltage |
DC:10~30VDC±10% | DC:10~30VDC±10% |
Current consumption |
DC:≤8mA No—Load | DC:≤8mA No—Load |
Load currents |
DC:30V 200mA Max | DC:30V 200mA Max |
Leakage currents |
DC:≤1.1mA no-Load | DC:≤1.1mA no-Load |
Residual votage |
DC:≤1.5VDC No-load | DC:≤1.5VDC No-load |
Operating temperature |
-20°C~+70°C | -20°C~+70°C |
Material |
ABS | PBT |
Wiring method |
φ3×2M/3-wires | φ4×2M/3-wires |
Protection degree |
IP66 | IP66 |

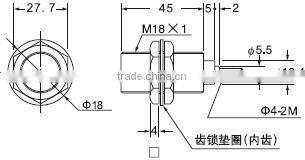

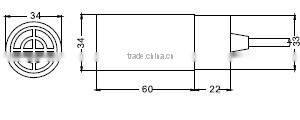

Dimensions
FKCN2210-N/N2/P/P2(/15D) FKCN1810-N/N2/P/P2(/15D)

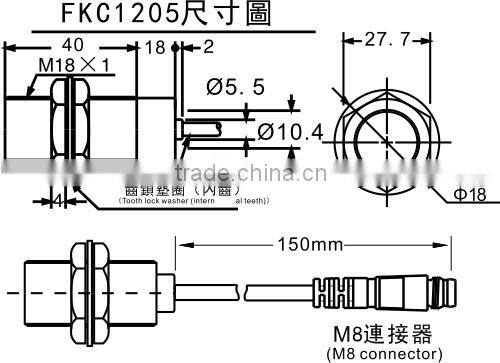

FKC3430- N/N2/P/P2(/15D) FKC1205- N/N2/P/P2(/15D)

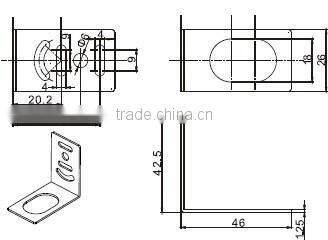

FKC1810- N/N2/P/P2 STENT INSTALL FSCN3430- N/N2/P/P2 STENT INSTALL
2210-N/N2/P/P2(/15D)

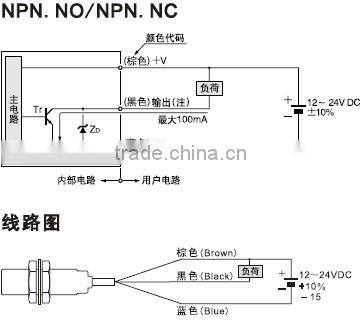

Wiring Diagram
Price, Package and Service
1. Price : EXW, FOB, C&F
2. Payment: T/T in advance, PayPal, Western Union.
3. Packing : standard export packing, including instructions and certificate
4. Leading time : 3-10 working days according to order quantity
5. OEM available
6. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
7. 1 year free repair for quality warranty
