DLC630 chinese kitchen scale , postal scale load cell

Model: DLC630

Category: single point load cell

Range: 100kg,150kg,200kg,300kg,350kg,500kg,750kg,1000kg

Dimension: 191*76*43mm

Material: Alloy aluminum

Application: Platform scale, pricing scale, electronic scale, kitchen scale, postal scale

Characteristic: platform scale weight sensor, 1000kg aluminum weight sensor

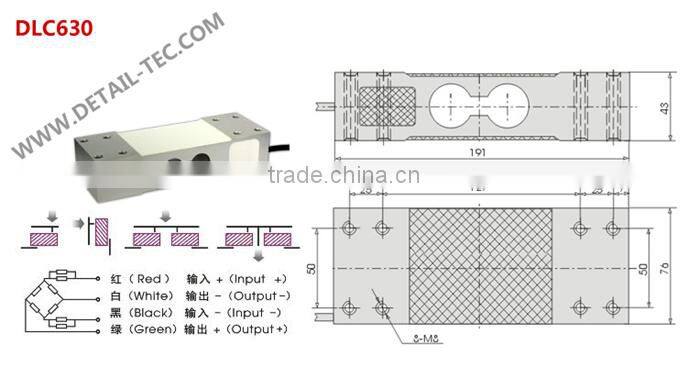

REF PIC

Specification

comprehensive error:

0.017%FS

output resistance:

350±3Ω

Rated output:

1±0.01mv/v

Insulation resistance:

≥5000MΩ(100VDC)

Non-linearity:

0.017%FS

Excitation voltage:

9~12VDC

Hysteresis:

0.017%FS

compensated temp:

-10~+40ºC

Repeatability:

0.01%FS

use temperature:

-20~+60ºC

Creep:

0.017%FS/10MIN

temp effect on zero:

 0.017%FS/10ºC

Zero balance:

±1%FS

Temp effect on span:

0.014%FS/10ºC

Input resistance:

405±10Ω

defend grade:

IP65
