DLC672 electronic price platform scale load cell

Model: DLC672

Category: single point load cell

Range: 200kg,300kg

Dimension: 130*50*45mm

Material: Alloy aluminum

Application: Platform scale, pricing scale, electronic scale, postal scale

Characteristic: Platform scale load cell

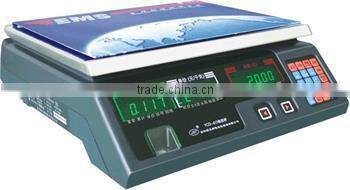

REF PIC

Specification

comprehensive error:

0.02%FS

output resistance:

350±3Ω

Rated output:

2±0.01mv/v

Insulation resistance:

≥5000MΩ(100VDC)

Non-linearity:

0.02%FS

Excitation voltage:

9~12VDC

Hysteresis:

0.02%FS

compensated temp:

-10~+40ºC

Repeatability:

0.01%FS

use temperature:

-20~+60ºC

Creep:

0.02%FS/10MIN

temp effect on zero:

 0.02%FS/10ºC

Zero balance:

±2%FS

Temp effect on span:

0.02%FS/10ºC

Input resistance:

405±10Ω

defend grade:

IP65
