DLC632 electronic price platform scale , electronic price computing scales load cell
|

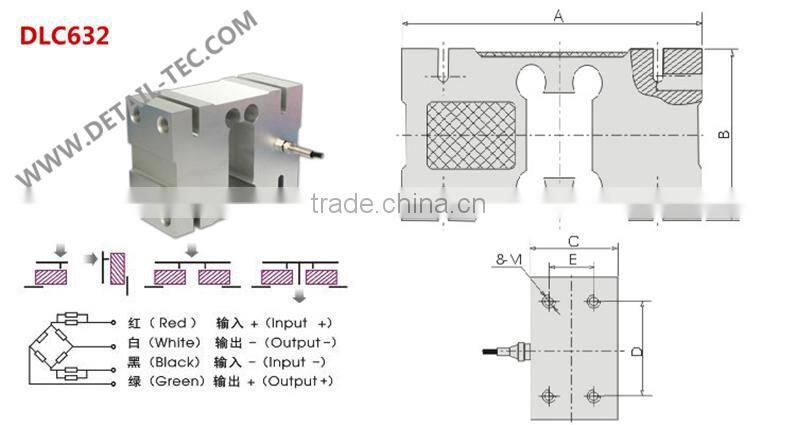

Model: DLC632 Category: single point load cell Range: 50, 100, 150, 200, 300, 350, 500, 750, 1000, 2000, 3000KG Dimension: 156*75*44mm Material: Alloy aluminum Application: Platform scale, pricing scale, electronic scale, kitchen scale Characteristic: platform scale weight sensor, 1000kg aluminum weight sensor | ||||||
| ||||||
other dimension | ||||||
Load(kg) |
50~200 |
250~500 |
750~2500 |
|||
Platform size |
600mmx600mm |
600mmx600mm |
1200mmx1200mm |
|||
A |
156 |
146 |
176 |
|||
B |
75 |
95 |
125 |
|||
C |
44 |
60 |
76.2 |
|||
D |
50 |
70 |
95 |
|||
E |
24 |
36 |
46 |
|||
M |
M12 |
M12 |
M16 |
|||
Specification | ||||||
comprehensive error: |
0.02%FS |
output resistance: |
350±3Ω |
|||
Rated output: |
2±0.01mv/v |
Insulation resistance: |
≥5000MΩ(100VDC) |
|||
Non-linearity: |
0.02%FS |
Excitation voltage: |
9~12VDC |
|||
Hysteresis: |
0.02%FS |
compensated temp: |
-10~+40ºC |
|||
Repeatability: |
0.02%FS |
use temperature: |
-20~+60ºC |
|||
Creep: |
0.027%FS/10MIN |
temp effect on zero: |
0.03%FS/10ºC |
|||
Zero balance: |
±1%FS |
Temp effect on span: |
0.02%FS/10ºC |
|||
Input resistance: |
405±10Ω |
defend grade: |
IP65 |
|||
Why you choose our company?
1.Competitive Price and good quality
2.7 days free replace and 1 year free repair for quality warranty
3.Short lead time (3-20 days) according to your Qty
4.Customized size and spec/OEM available
APPLICATION:

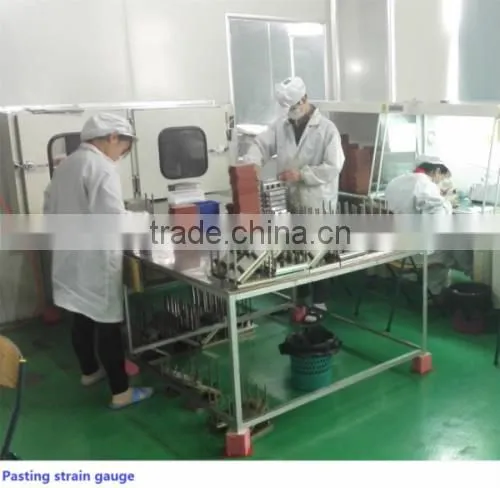

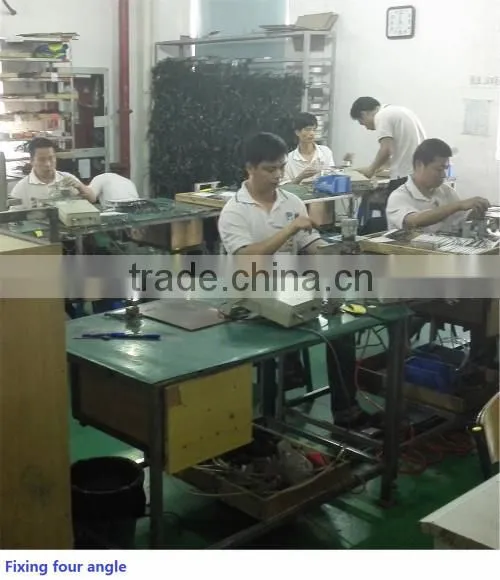

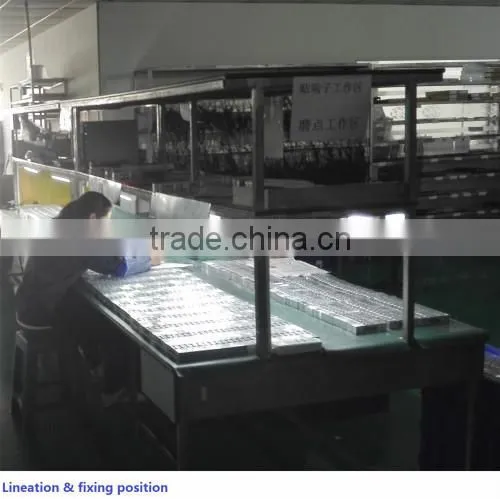

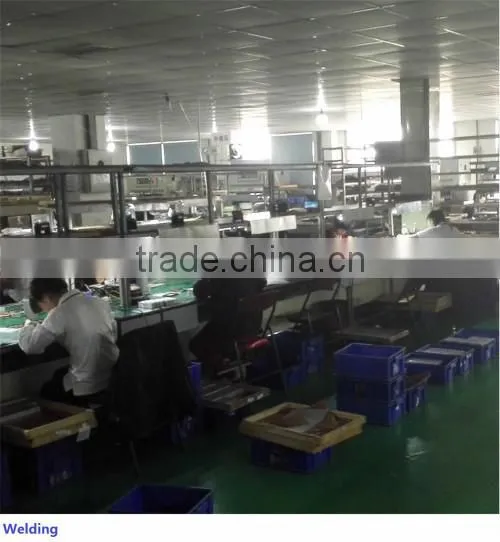

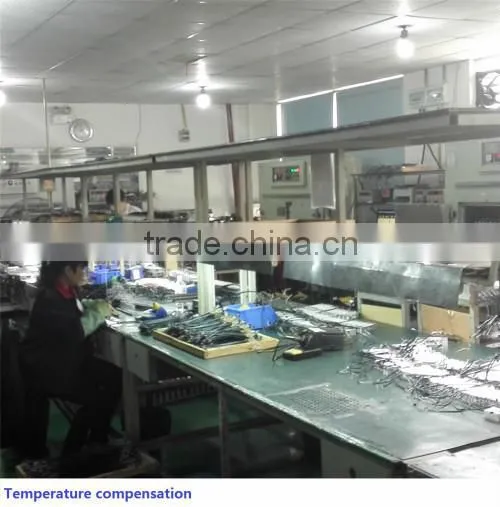

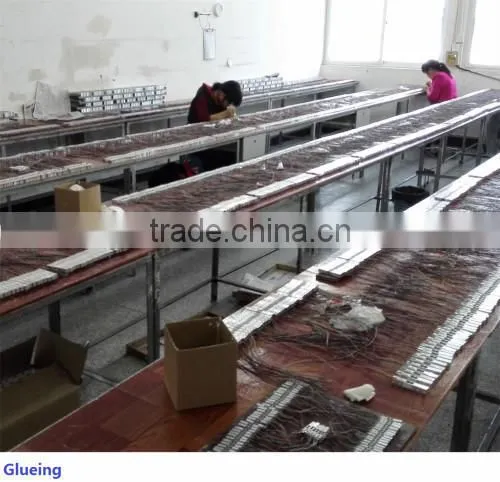

Welcome to the workshop
