DLC642 platform scale , electronic scale load cell

Model: DLC642

Category: single point load cell

Range: 100kg, 150kg, 200kg, 300kg, 350kg, 500kg

Dimension: 150*40*40mm

Material: Alloy aluminum

Application: Platform scale, pricing scale, electronic scale,postal scale

Characteristic: platform scale load cell,500kg aluminum load cell

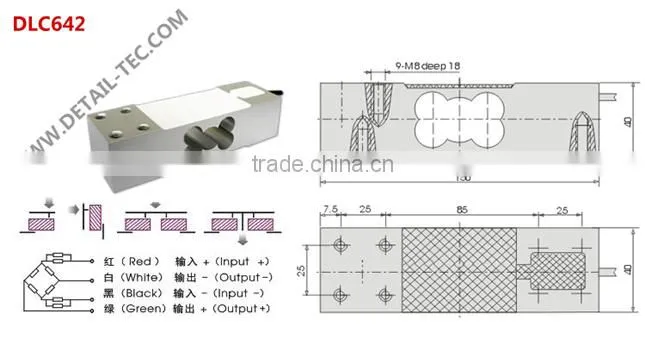

REF PIC

other model

model

dimension

Rated load

Precision

error

Rated output

DLC642B

100*30*22

100~500KG

C2

0.02%FS

C2

Specification

comprehensive error:

0.02%FS

output resistance:

350±3Ω

Rated output:

2±0.01mv/v

Insulation resistance:

≥5000MΩ(100VDC)

Non-linearity:

0.02%FS

Excitation voltage:

9~12VDC

Hysteresis:

0.02%FS

compensated temp:

-10~+40ºC

Repeatability:

0.02%FS

use temperature:

-20~+60ºC

Creep:

0.027%FS/10MIN

temp effect on zero:

0.03%FS/10ºC

Zero balance:

±1%FS

Temp effect on span:

0.02%FS/10ºC

Input resistance:

405±10Ω

defend grade:

IP65
