DLC403 90t force test equiment load cell

Model: DLC403

Category: Compression Load Cell

Range: 25t,30t,40t, 50t, 60t, 90t

Dimension: 72*192/85*225mmm

Material: Alloy steel,stainless steel

Application: Force test equipment,compression test equipment,

Characteristic: Force test sensor,compression test sensor

REF PIC

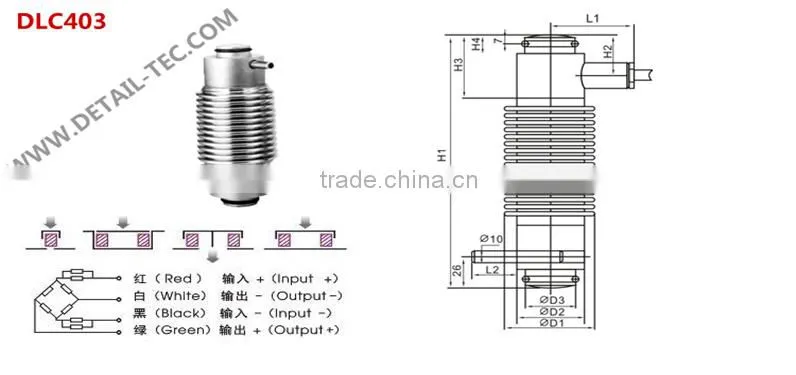

other dimension

LOAD T

L1

L2

H1

H2

H3

H4

D1

D2

D3

S MAX

25, 30

62

33

192

34

51

15

72

50

37

10.5

40

69

26

225

36

57

16

85

64

37

11

50, 60

69

26

225

36

57

16

85

64

54.4

12.5

90

69

26

225

36

57

16

85

64

54.4

9

Specification

comprehensive error:

0.03&0.05%FS

output resistance:

700±5Ω

Rated output:

1.5±0.002mv/v

Insulation resistance:

≥5000MΩ(100VDC)

Non-linearity:

0.03%FS

Excitation voltage:

9~12VDC

Hysteresis:

0.02%FS

compensated temp:

-10~+40ºC

Repeatability:

0.01%FS

use temperature:

-35~+65ºC

Creep:

0.02%FS/10MIN

temp effect on zero:

0.03%FS/10ºC

Zero balance:

±1%FS

Temp effect on span:

0.02%FS/10ºC

Input resistance:

700±10Ω

defend grade:

IP66&IP68
