DLC405G truck scale, railway scale load cell
|
Model: DLC405G Category: Compression Load Cell Range: 5t,10t,15t,20t,25t,30t Dimension: 85*178.8mm Material: Alloy steel,stainless steel Application: truck scale,railway scale,floor scale, weighbridge Characteristic: floor scale load cell, weighbridge load cell | |||
|

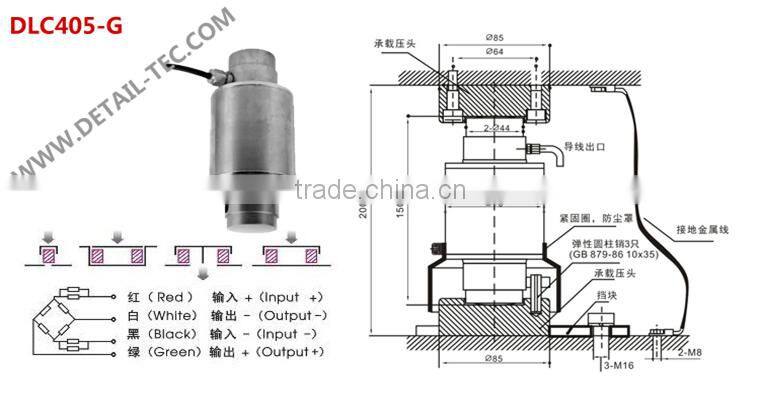

REF PIC | |||
Specification | |||
comprehensive error: |
0.02%FS |
output resistance: |
350±5&700±5Ω |
Rated output: |
2±0.003mv/v |
Insulation resistance: |
≥5000MΩ(100VDC) |
Non-linearity: |
0.03%FS |
Excitation voltage: |
9~12VDC |
Hysteresis: |
0.03%FS |
compensated temp: |
-10~+40ºC |
Repeatability: |
0.02%FS |
use temperature: |
-20~+55ºC |
Creep: |
0.02%FS/10MIN |
temp effect on zero: |
0.02%FS/10ºC |
Zero balance: |
±1%FS |
Temp effect on span: |
0.02%FS/10ºC |
Input resistance: |
350±5&700±10Ω |
defend grade: |
IP66&IP68 |
Why you choose our company?
1.Competitive Price and good quality
2.7 days free replace and 1 year free repair for quality warranty
3.Short lead time (7-25 days) according to your Qty
4.Customized size and spec/OEM available

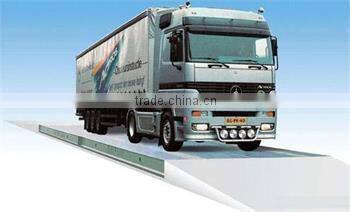

APPLICATION:
