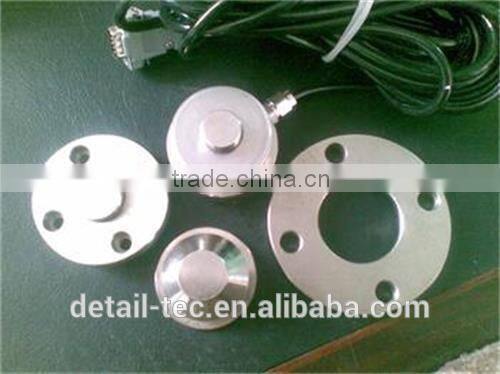

DLC410 hopper scale,warehouse scale load cell
|
Model: DLC410 Category: Compression Load Cell Range: 1t,2.2t,3.3t,4.7t,10t,15t,22t,33t,47t,68t,100t,150t Dimension: 60*43/130*75/150*100 Material: Alloy steel,stainless steel Application: hopper scale,warehouse scale,silo scale Characteristic: compression weighing sensor, tank weighing sensor | |||||||||||||||

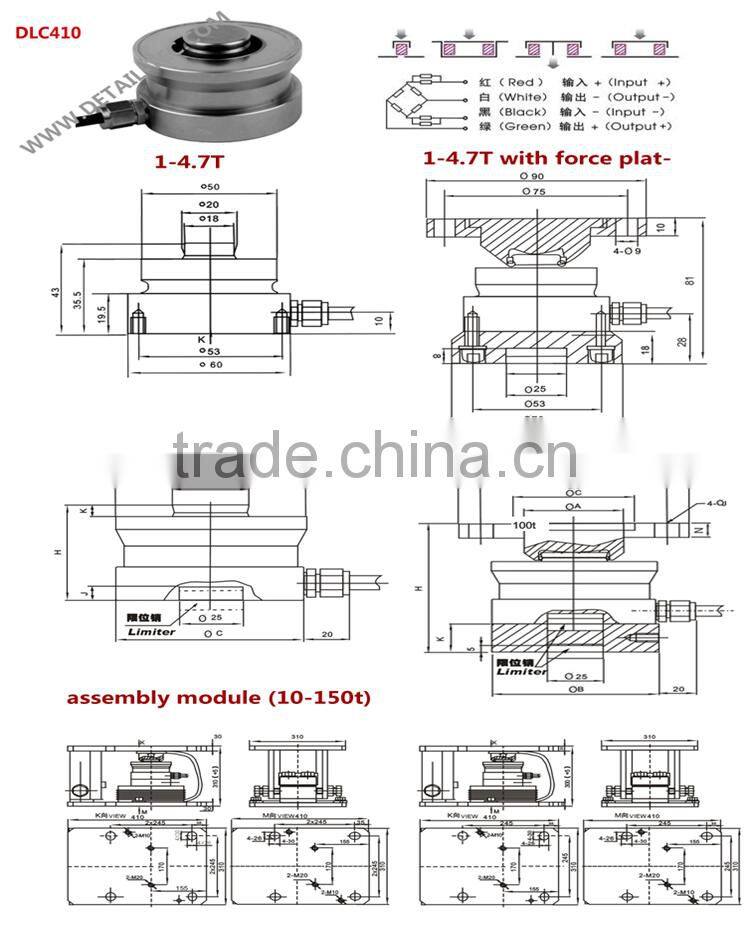

Load cell dimension | |||||||||||||||
LOAD |
A |
B |
C |
NA |
NA |
H |
J |
K |
N |
||||||
10-22 |
75 |
30 |
75 |
NA |
NA |
50 |
7 |
6.5 |
10 |
||||||
33 |
95 |
40 |
95 |
NA |
NA |
65 |
7 |
10 |
12 |
||||||
47 |
130 |
60 |
130 |
NA |
NA |
75 |
7 |
14 |
20 |
||||||
68 |
130 |
60 |
130 |
NA |
NA |
85 |
7 |
14 |
20 |
||||||
100 |
130 |
70 |
150 |
NA |
NA |
90 |
7 |
16 |
22 |
||||||
150 |
150 |
70 |
150 |
NA |
NA |
100 |
7 |
16 |
22 |
||||||

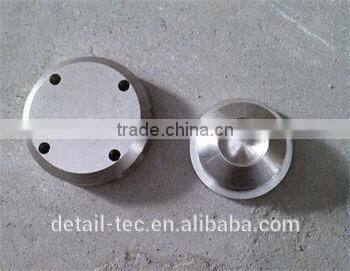

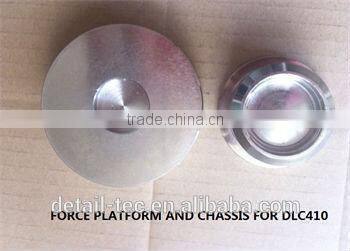

Load cell with force platform dimension | |||||||||||||||
LOAD |
A |
B |
C |
D |
E |
H |
J |
K |
N |
||||||
10-22 |
45 |
75 |
55 |
80 |
100 |
95 |
11.5 |
20 |
10 |
||||||
33 |
58 |
95 |
68 |
95 |
120 |
120 |
13 |
25 |
12 |
||||||
47 |
80 |
130 |
92 |
130 |
170 |
140 |
17.5 |
30 |
20 |
||||||
68 |
80 |
130 |
92 |
130 |
170 |
150 |
17.5 |
30 |
20 |
||||||
100 |
100 |
150 |
110 |
150 |
200 |
177 |
25 |
40 |
22 |
||||||
150 |
100 |
150 |
110 |
150 |
200 |
187 |
25 |
40 |
22 |
||||||
Specification | |||||||||||||||
comprehensive error: |
0.05%FS |
output resistance: |
1402±5Ω |
||||||||||||
Rated output: |
2.85±0.005mv/v |
Insulation resistance: |
≥5000MΩ(100VDC) |
||||||||||||
Non-linearity: |
0.05%FS |
Excitation voltage: |
9~12VDC |
||||||||||||
Hysteresis: |
0.05%FS |
compensated temp: |
-10~+40℃ |
||||||||||||
Repeatability: |
0.03%FS |
use temperature: |
-20~+55℃ |
||||||||||||
Creep: |
0.03%FS/10MIN |
temp effect on zero: |
0.05%FS/10℃ |
||||||||||||
Zero balance: |
±1%FS |
Temp effect on span: |
0.05%FS/10℃ |
||||||||||||
Input resistance: |
1450±10Ω |
defend grade: |
IP66 & IP68 |
||||||||||||
|
REF PIC | |||||||||||||||
Price, Package and Service
1. Price : EXW, FOB, C&F
2. Payment: T/T in advance, PayPal, Western Union.
3. Packing : standard export packing, including instructions and certificate
4. Leading time : 3-20 working days according to order quantity
5. OEM available
6. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
7. 7 days free replace & 1 year free repair for quality warranty
APPLICATION:
