DLC409 tension test equipment load cell

Model: DLC409

Category: Compression Load Cell

Range: 40t,50t,60t,100t,150t,200t,300t

Dimension: 197*160/240*230/305*326/415*358mm

Material: Alloy steel,stainless steel

Application: big capacity tension test equipment

Characteristic: 150t tension sensor, 150t compression sensor

REFPIC

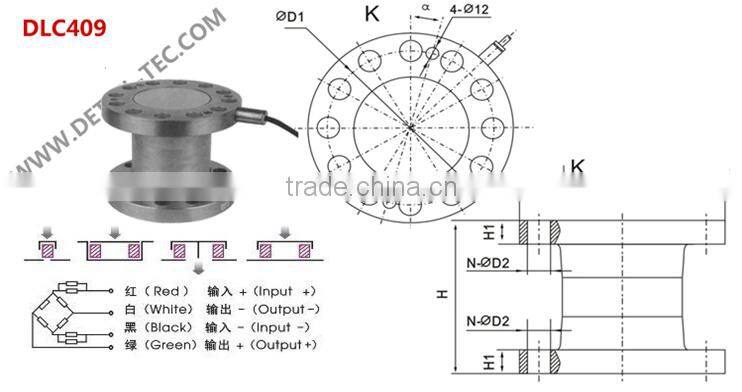

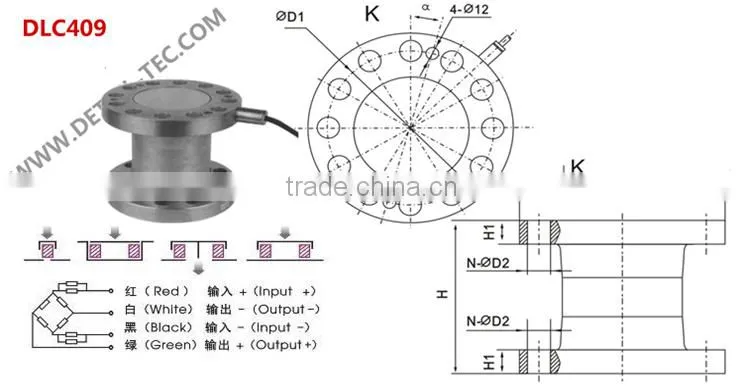

other dimension

LOAD

H

H1

D

D1

NX D2

a

40, 60

160

25

197

160

12x D22

15 Degree

100

230

40

240

200

12x D26

15 Degree

150-200

326

57

305

250

12X D33

15 Degree

300

358

69

415

360

18 X D33

10 Degree

Specification

comprehensive error:

0.1%FS

output resistance:

702±5Ω

Rated output:

2.0±0.005mv/v

Insulation resistance:

≥5000MΩ(100VDC)

Non-linearity:

0.05%FS

Excitation voltage:

9~12VDC

Hysteresis:

0.05%FS

compensated temp:

-10~+40℃

Repeatability:

0.03%FS

use temperature:

-20~+55℃

Creep:

0.03%FS/10MIN

temp effect on zero:

0.05%FS/10℃

Zero balance:

±1%FS

Temp effect on span:

0.05%FS/10℃

Input resistance:

750±10Ω

defend grade:

IP66 & IP68
