DLC401L axle-load scale, compression measurement load cell
|
Model: DLC401L Category: Compression Load Cell Range: 1t,2t,3t,5t,10t,15t,20t Dimension: 88*64/106*76/130*88mm Material: Alloy steel,stainless steel Application: axle-load scale,floor scale,warehouse scale, compression measurement Characteristic: floor scale load cell,warehouse scale load cell | ||||||||||
|

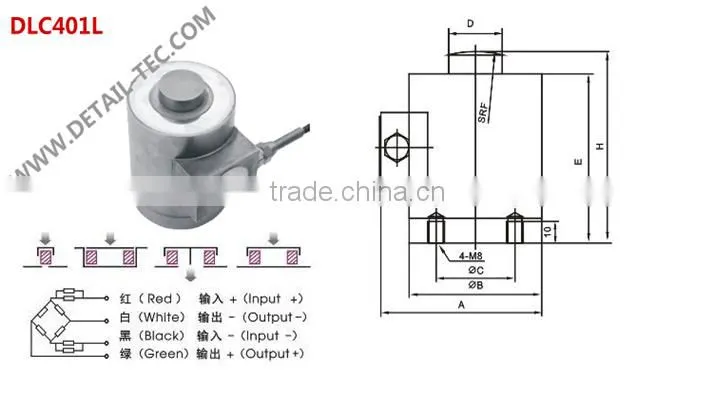

REF PIC | ||||||||||
other dimension | ||||||||||
LOAD T |
H |
A |
B |
C |
D |
E |
F |
|||
1,2,3,5 |
88 |
78 |
D64 |
D38 |
D26 |
78 |
80 |
|||
10 |
106 |
88 |
D76 |
D46 |
D34 |
95 |
120 |
|||
15, 20 |
130 |
107 |
D88 |
D56 |
D34 |
118 |
120 |
|||
Specification | ||||||||||
comprehensive error: |
0.02%FS |
output resistance: |
352±5Ω |
|||||||
Rated output: |
2±0.002mv/v |
Insulation resistance: |
≥5000MΩ(100VDC) |
|||||||
Non-linearity: |
0.02%FS |
Excitation voltage: |
9~15VDC |
|||||||
Hysteresis: |
0.02%FS |
compensated temp: |
-10~+40℃ |
|||||||
Repeatability: |
0.01%FS |
use temperature: |
-40~+80℃ |
|||||||
Creep: |
0.02%FS/10MIN |
temp effect on zero: |
0.03%FS/10℃ |
|||||||
Zero balance: |
±1%FS |
Temp effect on span: |
0.02%FS/10℃ |
|||||||
Input resistance: |
400±5Ω |
defend grade: |
IP68 |
|||||||
Price, Package and Service
1. Price : EXW, FOB, C&F
2. Payment: T/T in advance, PayPal, Western Union.
3. Packing : standard export packing, including instructions and certificate
4. Leading time : 7-20 working days according to order quantity
5. OEM available
6. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
7. 7 days free replace & 1 year free repair for quality warranty
