DLC302 crane scale load cell
|
Model: DLC302 Category: Tension load cell Range: 1~5kg,10~50kg,100kg,150~500kg Dimension: 70*10*60/50.8*12.7*63.5/64*23*82mm Material: Alloy steel,stainless steel Application: hanging scales,crane scale, tension and compression test Characteristic: micro tension sensor, micro compression sensor | |||||||
|

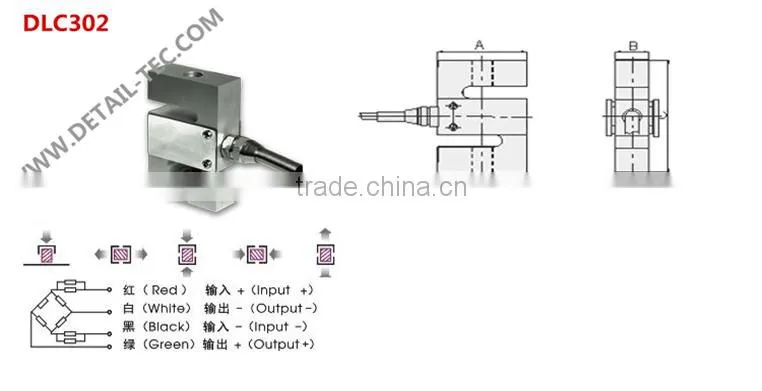

REF PIC | |||||||
other dimension | |||||||
kg |
A |
B |
C |
M |
|||
1--5 |
58 |
8 |
56 |
M4 |
|||
10--50 |
50.8 |
12.7 |
65.3 |
M8 |
|||
100 |
50.8 |
19.1 |
76.2 |
M12 |
|||
150--500 |
64 |
23 |
82 |
M12 |
|||
Specification | |||||||
comprehensive error: |
0.03%FS |
output resistance: |
350±5Ω |
||||
Rated output: |
2±0.002mv/v |
Insulation resistance: |
≥5000MΩ(100VDC) |
||||
Non-linearity: |
0.03%FS |
Excitation voltage: |
9~12VDC |
||||
Hysteresis: |
0.03%FS |
compensated temp: |
-10~+40ºC |
||||
Repeatability: |
0.02%FS |
use temperature: |
-20~+65ºC |
||||
Creep: |
0.03%FS/10MIN |
temp effect on zero: |
0.03%FS/10ºC |
||||
Zero balance: |
±1%FS |
Temp effect on span: |
0.02%FS/10ºC |
||||
Input resistance: |
350±5Ω |
defend grade: |
IP66 |
||||
APPLICATION:
Why you choose our company?
1.Competitive Price and good quality
2.7 days free replace and 1 year free repair for quality warranty
3.Short lead time (3-10 days) according to your Qty
4.Customized size and spec/OEM available
Welcome to the workshop
I am Dita, thank you for visiting our website. Any inquiries, please contact us freely.
We will reply to you within 24 hours.
