DLC323 crane scale, hanging scale load cell

Model: DLC323

Category: Tension load cell

Range: 3t,5t

Dimension: 229*58*50mm

Material: Alloy steel,stainless steel

Application: crane scale,hopper scale,packing scale,overload limiter

Characteristic: crane scale weighing sensor, hanging scale weighing sensor

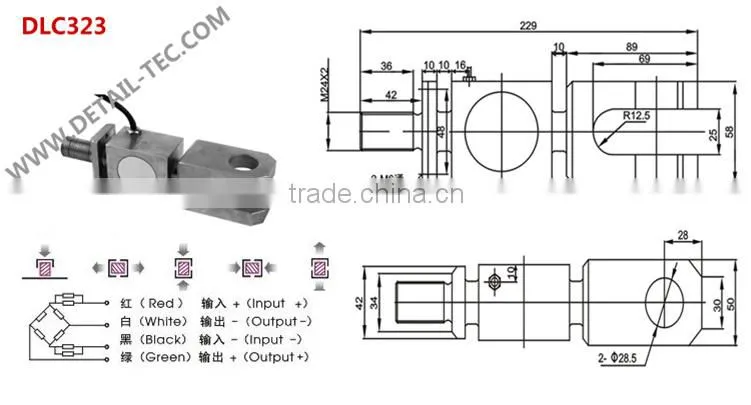

REF PIC

Specification

comprehensive error:

0.05%FS

output resistance:

352±5Ω

Rated output:

1.8±0.005mv/v

Insulation resistance:

≥5000MΩ(100VDC)

Non-linearity:

0.05%FS

Excitation voltage:

9~12VDC

Hysteresis:

0.05%FS

compensated temp:

-10~+40℃

Repeatability:

0.03%FS

use temperature:

-20~+55℃

Creep:

0.03%FS/10MIN

temp effect on zero:

0.05%FS/10℃

Zero balance:

±1%FS

Temp effect on span:

0.05%FS/10℃

Input resistance:

380±10Ω

defend grade:

IP66 & IP68
