Product Details
Place of Origin: | Hunan, China | Brand Name: | DETAIL | Model Number: | DLC301 |
Usage: | Pressure Sensor | Theory: | Resistance Sensor | Output: | Analog Sensor |
Product Description

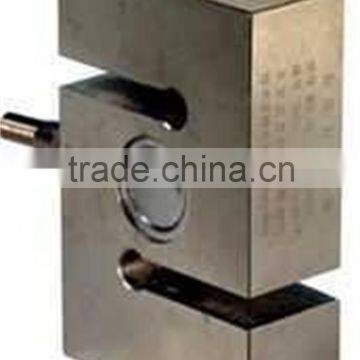

DLC301 crane scale load cell
Model: DLC301 Category: Tension load cell Range: 100kg,150kg,200kg,250kg,300kg,500kg,1000kg,2000kg,5000kg Dimension: 50.8*12.7*64/50.8*19*76/76.2*25.4*108mm Material: Alloy steel,stainless steel Application: hanging scales,crane scale, tension and compression test Characteristic: hanging scale load cell,crane scale load cell | |||||||

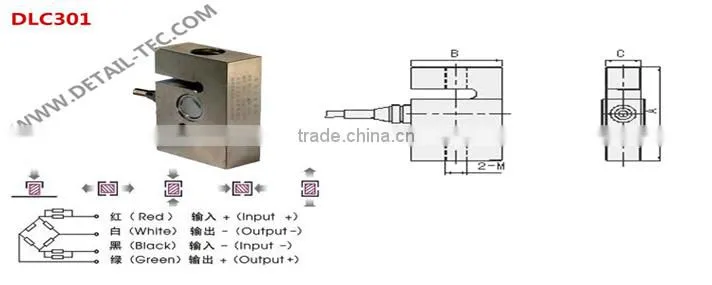

REF PIC | |||||||
other dimension | |||||||
| rated KG | A | B | C | M | ||
301 | 10~50 | 50.8 | 12.7 | 64 | M8 | ||
100~500 | 50.8 | 19 | 76 | M12*1.75 | |||
750~1500 | 50.8 | 25.4 | 76 | M12*1.75 | |||
2000~5000 | 76.2 | 25.4 | 108 | M18*1.5 | |||
301B | 250~500 LB | 50.8 | 19 | 76 | 1/2-20UNF | ||
301C | 20~100 | 50 | 12.5 | 62 | M6 | ||
150~1000 | 50 | 25 | 62 | M12*1.25 | |||
1500~3000 | 75 | 27 | 100 | M20*1.5 | |||
5000 | 90 | 40 | 140 | M24*2 | |||
301S | 1000~3000 | 60 | 30 | 80 | M16 | ||
Specification | |||||||
comprehensive error: | 0.03%FS | output resistance: | 350±5Ω | ||||
Rated output: | 2±0.02mv/v | Insulation resistance: | ≥5000MΩ(100VDC) | ||||
Non-linearity: | 0.03%FS | Excitation voltage: | 9~12VDC | ||||
Hysteresis: | 0.03%FS | compensated temp: | -10~+40ºC | ||||
Repeatability: | 0.02%FS | use temperature: | -20~+65ºC | ||||
Creep: | 0.03%FS/10MIN | temp effect on zero: | 0.03%FS/10ºC | ||||
Zero balance: | ±1%FS | Temp effect on span: | 0.02%FS/10ºC | ||||
Input resistance: | 350±5Ω | defend grade: | IP66 |
APPLICATION:
Why you choose our company?
1.Competitive Price and good quality
2.7 days free replace and 1 year free repair for quality warranty
3.Short lead time (3-10 days) according to your Qty
4.Customized size and spec/OEM available
Welcome to the workshop
I am Dita, thank you for visiting our website. Any inquiries, please contact us freely.
We will reply to you within 24 hours.
