DLC325 crane scale load cell
|
Model: DLC325 Category: Tension load cell Range: 1.5t Dimension: 142*60*36mm Material: Alloy steel,stainless steel Application: crane scale,hopper scale,overload limiter Characteristic: hanging basket load cell, Hanging scale load cell | |||
|

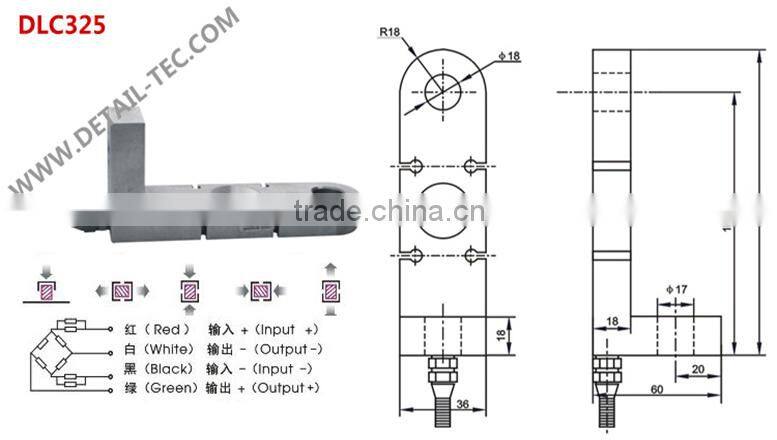

REF PIC | |||
Specification | |||
comprehensive error: |
0.05%FS |
output resistance: |
352±5Ω |
Rated output: |
1.8±0.005mv/v |
Insulation resistance: |
≥5000MΩ(100VDC) |
Non-linearity: |
0.05%FS |
Excitation voltage: |
9~12VDC |
Hysteresis: |
0.05%FS |
compensated temp: |
-10~+40℃ |
Repeatability: |
0.03%FS |
use temperature: |
-20~+55℃ |
Creep: |
0.03%FS/10MIN |
temp effect on zero: |
0.05%FS/10℃ |
Zero balance: |
±1%FS |
Temp effect on span: |
0.05%FS/10℃ |
Input resistance: |
380±10Ω |
defend grade: |
IP66 & IP68 |
