DLC217 truck scale, static hopper scale load cell
|
Model: DLC217 Category: button load cell Range: 5t,10t,20t,30t,40t,50t Dimension: 60*100/70*110mm Material: Alloy steel,stainless steel Application: truck scale,static hopper scale, compression test Characteristic: static hopper scale load cell, truck scale load cell | |||||||||||||||
|

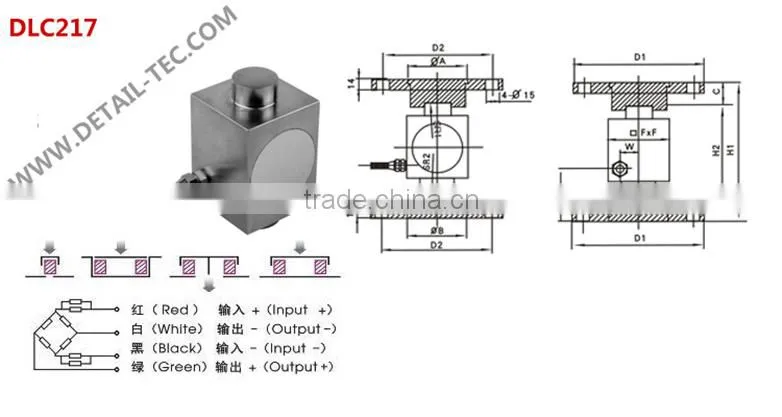

REF PIC | |||||||||||||||
other dimension | |||||||||||||||
LOAD |
H1 |
H2 |
H3 |
W |
D1 |
D2 |
C |
A |
B |
F |
SR1 |
SR2 |
|||
5-30T |
140 |
100 |
50 |
13.5 |
D130 |
D105 |
20 |
64 |
60 |
56 |
150 |
150 |
|||
40-50T |
168 |
110 |
63 |
20 |
D155 |
D130 |
29 |
70 |
70 |
74 |
180 |
180 |
|||
Specification | |||||||||||||||
comprehensive error: |
0.05%FS |
output resistance: |
352±5Ω |
||||||||||||
Rated output: |
2.0±0.005mv/v |
Insulation resistance: |
≥5000MΩ(100VDC) |
||||||||||||
Non-linearity: |
0.05%FS |
Excitation voltage: |
9~12VDC |
||||||||||||
Hysteresis: |
0.05%FS |
compensated temp: |
-10~+40℃ |
||||||||||||
Repeatability: |
0.03%FS |
use temperature: |
-20~+55℃ |
||||||||||||
Creep: |
0.03%FS/10MIN |
temp effect on zero: |
0.05%FS/10℃ |
||||||||||||
Zero balance: |
±1%FS |
Temp effect on span: |
0.05%FS/10℃ |
||||||||||||
Input resistance: |
400±10Ω |
defend grade: |
IP66 & IP68 |
||||||||||||
APPLICATION:
Welcome to the workshop
Q1:Can I have a sample for testing?
A: Yes, you can have samples from us.
The cost of samples will be higher than the cargo.
Q2:How can I get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
Q3:Do you have inspection procedures for all load cells?
A:100% self-inspection before packing.
I am Dita, thank you for visiting our website. Any inquiries, please contact us freely.
We will reply you within 24 hours.
