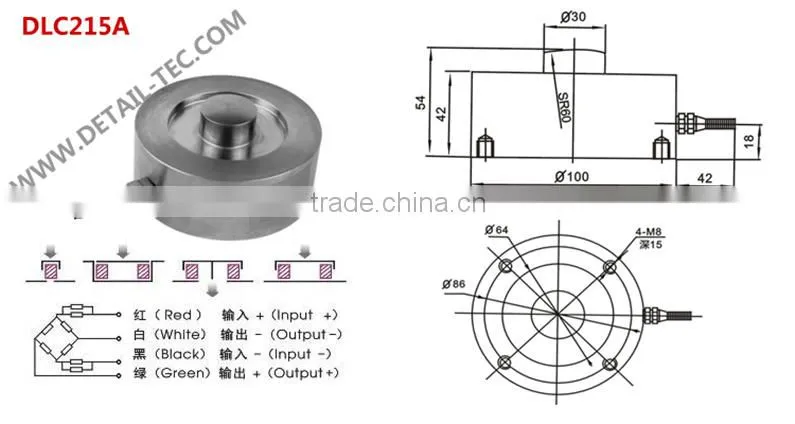

DLC215A hopper scale, packing scale load cell
|
Model: DLC215A Category:button load cell Range: 1t,2t,3t,5t,7.5t Dimension: 100*54mm Material: Alloy steel,stainless steel Application: hopper scale,tank scale, compression test, canned scale Characteristic: canned scale load cell,tank scale load cell | |||
|
REF PIC | |||
Specification | |||
comprehensive error: |
0.05%FS |
output resistance: |
703±5Ω |
Rated output: |
2.0±0.005mv/v |
Insulation resistance: |
≥5000MΩ(100VDC) |
Non-linearity: |
0.05%FS |
Excitation voltage: |
9~12VDC |
Hysteresis: |
0.05%FS |
compensated temp: |
-10~+40℃ |
Repeatability: |
0.03%FS |
use temperature: |
-20~+55℃ |
Creep: |
0.03%FS/10MIN |
temp effect on zero: |
0.05%FS/10℃ |
Zero balance: |
±1%FS |
Temp effect on span: |
0.05%FS/10℃ |
Input resistance: |
750±10Ω |
defend grade: |
IP66 & IP68 |
APPLICATION:
Welcome to the workshop
Q1:Can I have a sample for testing?
A: Yes, you can have samples from us.
The cost of samples will be higher than the cargo.
Q2:How can I get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
Q3:Do you have inspection procedures for all load cells?
A:100% self-inspection before packing.
