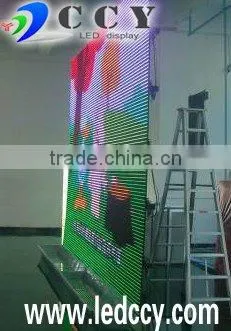

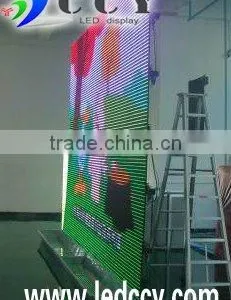

CCY Bar Led Sign Indoor Three Colors

US$ 800 - 1,000 MOQ: 1 Unit

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

CCY

Model Number:

CCY-OFC-P31.25mm

Shenzhen CreKing Electronics Technology Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name CCY

Model Number CCY-OFC-P31.25mm

Usage Outdoor

Tube Chip Color Full Color

Display Function Graphics

Pixels Other, 31.25mm

Specifications

bar led sign
1) Quick installation
2) Easy operation
3) Low power and consumption

CCY bar led sign

No.	Item	Technique Parameter
1	Pixel pitch	31.25mm
2	Pixel Density	1024 Dot/m²
3	Module Dimension	500mm500mm60mm
4	Led driver/scan mode	Static constant current driver
5	Best viewing distance	25M-300M
6	Grey scale	Red,Green,Blue, per 4096grade
7	Brightness	3000-4000cd/m2
8	Viewing angle	Horizontal:1200º/Vertical:60º
9	Exchange frame speed	60HZ
10	refresh frame frequency	≥600HZ
11	Maximum power consumption	300W/m²
12	Average power consumption	75W/m²
13	Life span	≥100,000 hours
14	Blind spot rate	1/100000(Disperse distributing)
15	Working environment	-20°c~50°c
16	Operating voltage	AC220V OR 110V, ±10%,50Hz
17	Screen body weight	4kg/pcs
18	MTBF	≥10,000 Hours
19	Intension of resisting electricity	50HZ/1500V /1min
20	Temperature	Metal≤40K, Insulation≤65K
21	Input signal	S-Video:VGA:RGB:Composite Video:SDI etc.
22	Control mode	WIN,XP PC+ control software and hardware+ display software and hardware
