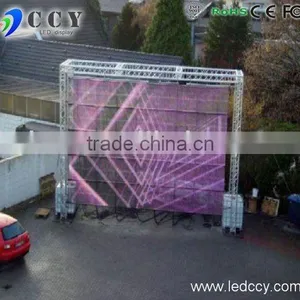

full color outdoor curtain led backlight P31.25
- 10000 Square Meter / Square Meters per Month
- Shenzhen Hongkong
- T/T Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | CCY | Model Number: | outdoor curtain led backlight P31.25 |
Usage: | Outdoor | Tube Chip Color: | Full Color | Display Function: | Video |
Pixels: | Other, 31.25 |
Packaging Details
carton package free, and provide wooden box and flight box package.
Product Description
Specifications
We have 10 years' experience in led backlight industry, we packing the led chip ourselves. Our team provide good service
2. led backlight module specification
No. | Item | Parameter |
1 | Pixel Pitch | 31.25mm |
2 | Pixel Density | 1024 Dot/m² |
4 | LED configuration | (1R1G1B) |
5 | Module Dimension | 500mm*500mm*60mm |
6 | Module pixel | 16dots*16dots |
7 | Driver voltage | DC5V |
2.3 Screen body specification
No. | Item | Technique Parameter |
1 | Cabinet Pixel | 16 dots(L)*16 dots(H)=256 dots |
2 | Number of cabinet | pcs |
3 | Screen body area | sqm |
4 | Led driver/scan mode | Static constant current driver |
5 | Best viewing distance | 25M-300M |
6 | Grey scale | Red,Green,Blue, per 4096grade |
7 | Brightness | 3000-4000cd/m2 |
8 | Viewing angle | Horizontal:1200º/Vertical:60º |
9 | Exchange frame speed | 60HZ |
10 | refresh frame frequency | ≥600HZ |
12 | Average power consumption | 75W/m2 |
13 | Life span | ≥100,000 hours |
14 | Blind spot rate | 1/100000(Disperse distributing) |
15 | Working environment | -20 ~50 Degrees Celsius |
16 | Operating voltage | AC220V OR 110V, ±10%,50Hz |
17 | Screen body weight | 4kg/pcs |
18 | MTBF | ≥10,000 Hours |
19 | Intension of resisting electricity | 50HZ/1500V /1min |
20 | Temperature | Metal≤40K, Insulation≤65K |
21 | Input signal | S-Video;VGA;RGB;Composite Video;SDI etc. |
22 | Control mode | WIN,XP PC+ control software and hardware+ display software and hardware |
Company Profile
Shenzhen CreKing Electronics Technology Ltd. is a novel hi-tech company engaged in the manufacture of LED light source devices and LED display screens.
With a plant area of 8,000 square meters, our company integrates the research, development and manufacture of the LED light source devices, as well as the manufacture and sale of the LED display screens. Our company has gathered experts with influence in the trade line, professional technicians and a skilled production team. With a long history in manufacture of LED display screens, our company has professional techniques and rich production experience. Since the launch in market, our products have won wide recognition and good comments.
With the business concept of "Focus on Customers, Survive by Quality, Develop by Credit", our company wins customers and markets by our sincere heart, advanced technology, high-quality products and satisfactory service.
