Home > Consumer Electronics > LED Display > Indoor LED Display > DIP Full-color /outdoor Led Display(P14)
DIP Full-color /outdoor Led Display(P14)
US$ 1,000 - 2,000
MOQ: 1 Cubic Meter
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
MHG
Model Number:
PH14(outdoor DIP Full-color)
Payment & Shipping
Payment Methods:
Port of Shipment:
Changsha
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PH7.62 LED Display Indoor SMD 3 in 1US$ 500 - 1,500MOQ: 10 Cubic Meters -
SMD Full-color 3 In1 Indoor Screen(PH6)US$ 500 - 1,500MOQ: 1 Cubic Meter
-
Double Color PH16 Led DisplayUS$ 1,000 - 1,500MOQ: 1 Cubic Meter
-
Moving Head Light(M-YL2)US$ 200 - 1,000MOQ: 10 Cubic Meters
-
Led Cube Display -p4.5 mmUS$ 1,000 - 7,800MOQ: 1 Piece
Place of Origin
Hunan, China
Brand Name
MHG
Model Number
PH14(outdoor DIP Full-color)
Usage
Outdoor
Tube Chip Color
Full Color
Display Function
Video
Pixels
Other, 14mm
Screen Dimension
Customized Size
Established in 2003, the member of China Entertainment Association,is a professional manufacturer of LED display,stage lighting. All of our products passed the ISO9001:2000 ,3C,CE,FCC,ROHS,LVD ...certifications .
MHG LED DISPLAY SMT WORKSHOP:
MHG‘s HONOR CERTIFICATIONS

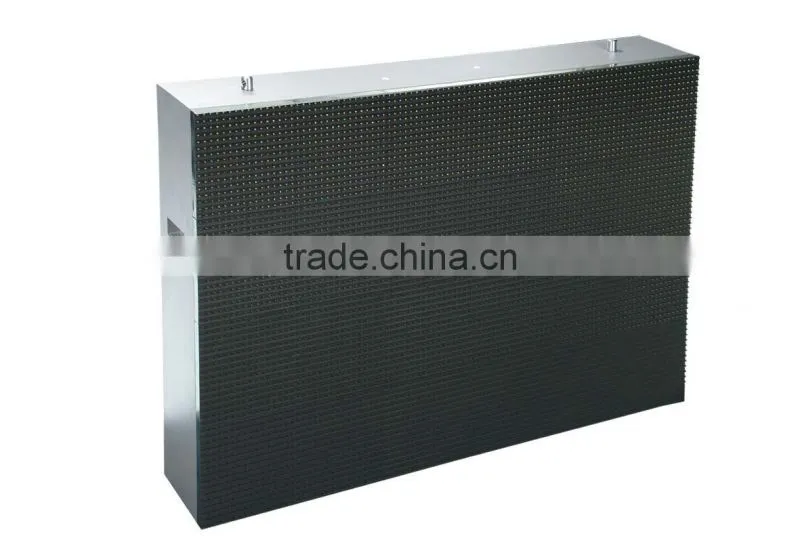

MHG PH14 Outdoor full color LED Display
1.Measured by the China ETA Quality Inspection of outdoor full color display for temperature impact test,normally under the temperature at -40 °C to +65 °C
2.This modle Widely used in advertising, sports, industrial enterprises, transportation, stations, terminals, airports, construction, education system and other public places until now.
Specifications:
| LED DISPLAY TYPE | PH14 DIP FULL COLOR SERIES OUTDOOR | ||
| Pixel pitch | 14mm | Frame frequency | 60-85HZ |
| Physical density | 5102 pixels/m2 | Refresh rate | 240-1000HZ |
| LED configuration | 3mm Oval lamp | Brightnessd adjustment | 0-100% 8 levels automatic |
| Physical density | 2R1G1B | Gamma correction | -5.0-5.0 |
| Module size | 244*122mm | Correction scale level | 16bits |
| Module resolution | 16*8 | Color temperature | 5000-9300k |
| Drive mode | Dynamic 1/2 Duty constant current |
Brightness correction | Pixel,module, cabinet correction |
| Brightness | ≥6000cd/m2 | Contrast | ≥2000:1 |
| Control distance | UTP CAT5E:100m,muti-mode fiber:500m single-mode fiber:10km |
Input source support | composite,S-video,component, VGA,DVI,HDMI,SDI,HD SDI |
| View angle | 110./50. | Operating temperature | -40-65.C |
| Minimum view distance | 14m | Operating humidity | 10-90% RH |
| Grey scale | 10bits/1024 levels | Operating life span | 100,000 Hours |
| Color capacity | 1.07 billion | MTBF | 5000 hours |
| Maximum power consumption | 1000w/M2 | Protection ratings | IP65 (front side) IP54(Back side) |
| Ave power consumption | 250w/M2 | Out of control rate | 0.01% |
| Operationg power source | AC90-260V 50-60 HZ | ||
LED DISPLAY CABINENT:

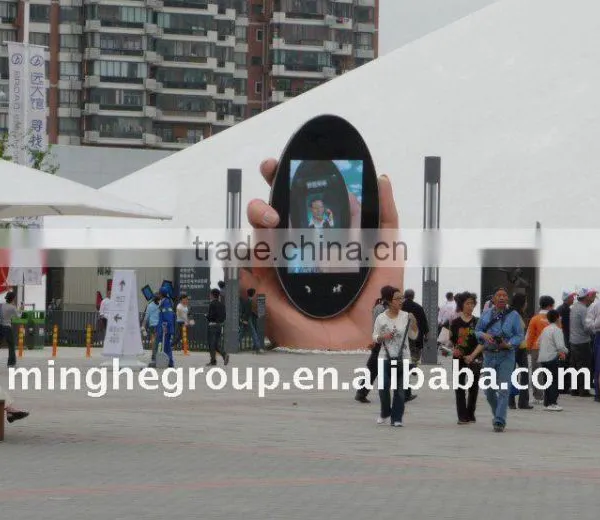

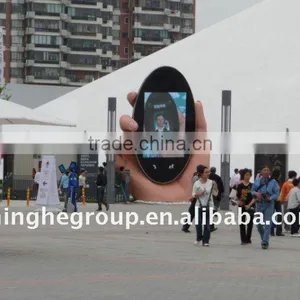

MHG SUCCESSFUL CASES:
