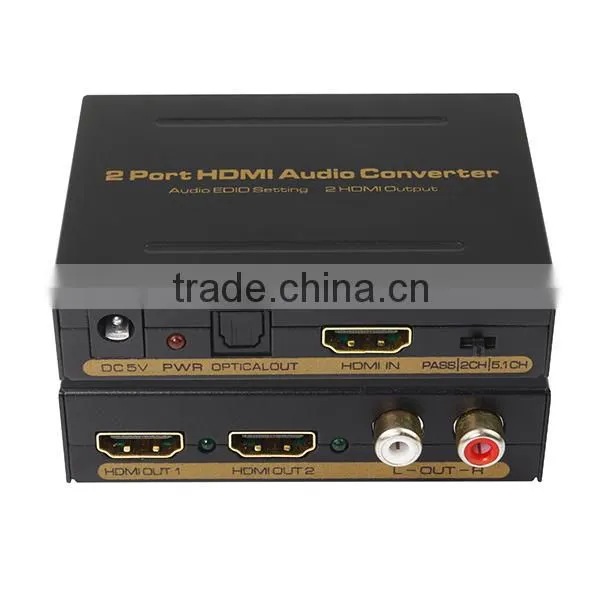

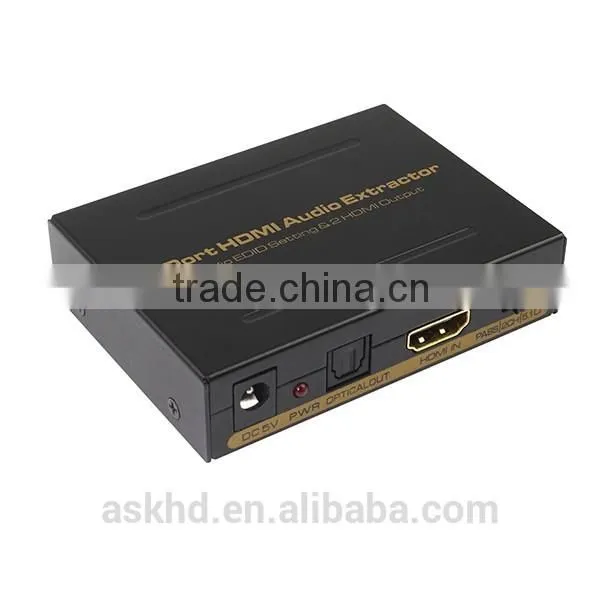

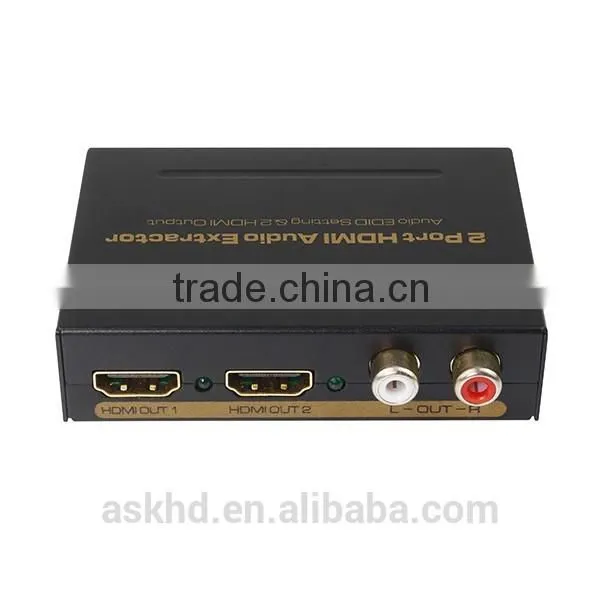

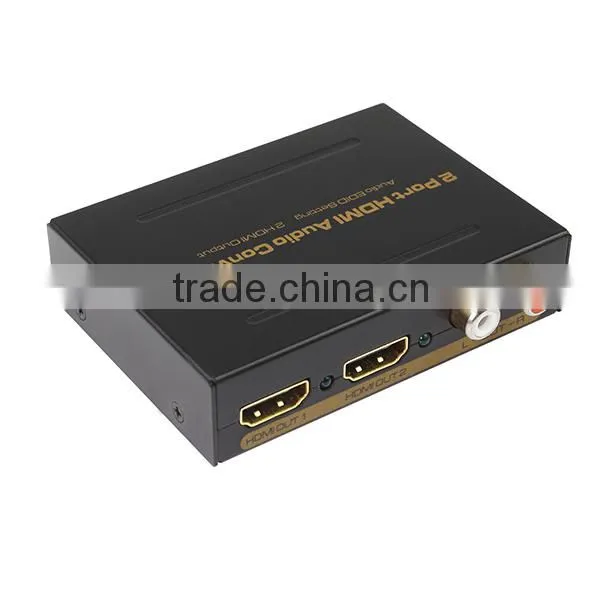

The 2 Port HDMI Audio Converter can allow two HD Display/TV connected to one HDMI Source and also can extract audio signals from your HDMI source. You can take your original HDMI audio signal and convert it to digital optical or 2 channel analog audio output. This product supports Dolby digital AC-3, DTS, LPCM and other digital audio format output. It is one perfect audio converter for your DVD, Blue-Ray DVD, PS3, X360BOX, HD Player, PC etc.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
INTRODUCTION
FEATURES:
l 1X HDMI input and 2X HDMI output,can sync separation HDMI audio signal. Supports 1x SPDIF optical digital audio output, 2 channel RCA analog audio output
l Support HDMI input up to 1080P/60Hz, supports 3D (24/30fs)
l Support SPDIF digital audio format: Dolby digital (AC3), DTS, LPCM, and support 5.1CH
l Supports 3 modes of EDID management for audio formats, can switch among built-in EDID (2CH/5.1CH) and external EDID (TV).
l LED indication: when source or sink is working, LED relative to is light.
l Uses 24bit /192KHz DAC
l No loss of quality
l Installs in minutes
l DC5V/1A power adapter
PACKAGE CONTENTS:
1. Main unit 1pcs
2. AC power adapter 1pcs
3. User manual 1pcs
SPECIFICATIONS: HDSP0002M1
HDMI resolution …………………………........................................ up to 1080P/50/60fs(3D 24/30fs)
Support video color format …………………………. .24bit/deep color 30bit,36bit
HDMI Audio Format………………..DTS-HD/Dolby-TrueHD/LPCM 2/5.1/7.1CH/DTS/Dolby-AC3/DSD
SPDIF Digital audio format…………………………………………Dolby Digital (AC3)/DTS/LPCM 2CH
HDMI Max bandwidth…………………………………………………………. ...225MHz
HDMI Max baud rate…………………… 6.75Gbps
Input/Output TMDS signal ………… .0.5~1.5Volts p-p(TTL)
Input/Output DDC signal …………………………………… . 5Volts p-p (TTL)
DAC sample frequency range………………………………………………………………….32~192 KHz
DAC Bit rate range………………………………………………………………………………….16~24 Bit
Analog output level(1kHz@0dB)...............................................................................................1V RMS
SNR @ 0dB(CCIR/ARM)………………………………………………………………………………≥90dB
Distortion………………………………………………………………………………………………...≤0.1%
Frequency response…………………………………………………………………………….20Hz~20KHz
HDMI input cable distance…………………………………………≤15m AWG26 HDMI standard cable
HDMI output cable distance………………………………………..≤20m AWG26 HDMI standard cable
Max working current ……………………………………………… .600mA
Power adapter format Input ……... . AC 100V~240V 50HZ/60Hz, DC5V/1A
Operating Temperature range …….. . -10 to +55°C
Storage Temperature range……………………………………………………………………. -20 to +60°C
Operating Humidity range ………………… 10 to 90%RH (No Condensation)
Storage Humidity range…………………… 5 to 95%RH (No Condensation)
Case Dimension (L x W x H) ……………………………… . 85x62x21 (mm)
Weight ……. . 130g
