Specifications
Uses 24bit /192KHz DACSupport SPDIF digital audio format: Dolby digital (AC3), DTS, LPCM, and support 5.1CH
FEATURES:

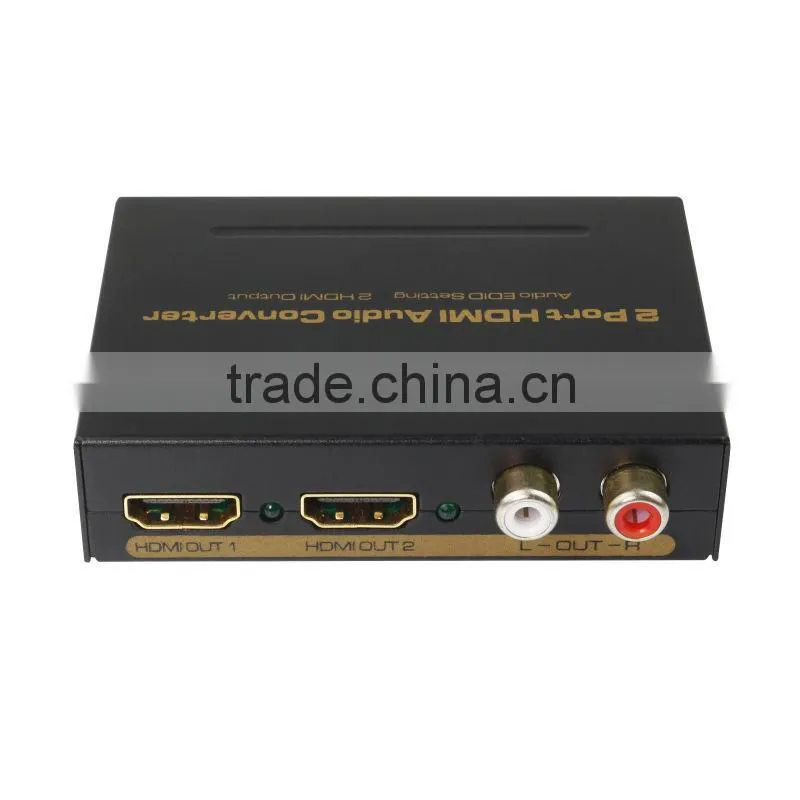

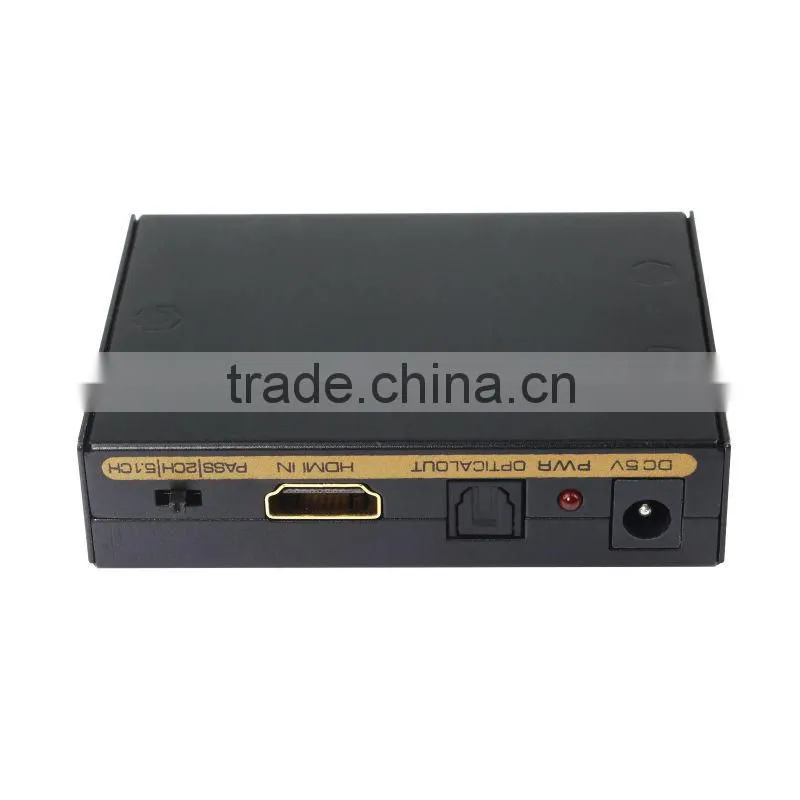

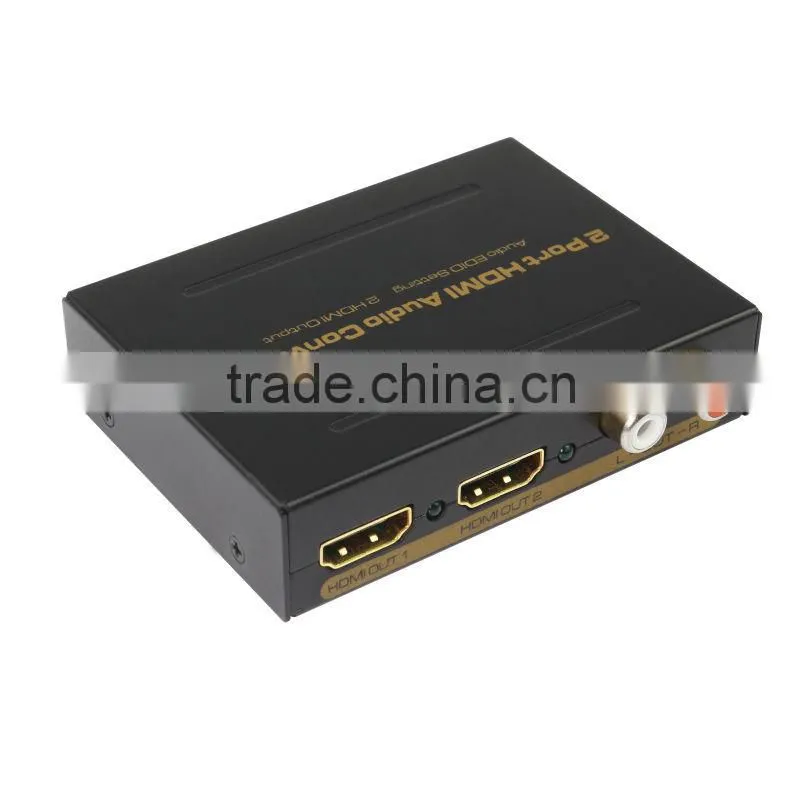

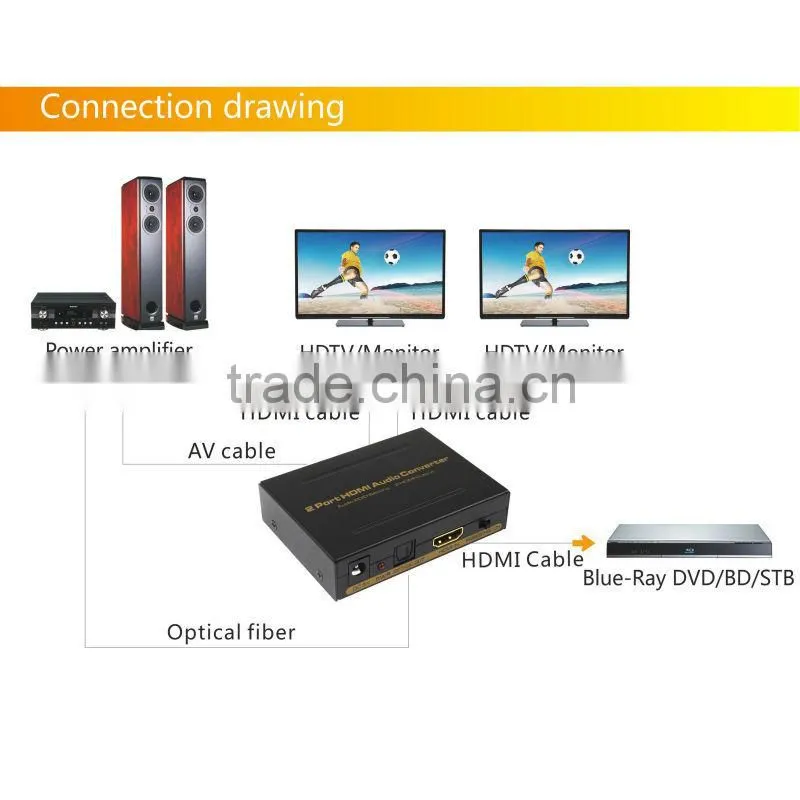

l 1X HDMI input and 2X HDMI output,can sync separation HDMI audio signal. Supports 1x SPDIF optical digital audio output, 2 channel RCA analog audio output
l Support HDMI input up to 1080P/60Hz, supports 3D (24/30fs)
l Support SPDIF digital audio format: Dolby digital (AC3), DTS, LPCM, and support 5.1CH
l Supports 3 modes of EDID management for audio formats, can switch among built-in EDID (2CH/5.1CH) and external EDID (TV).
l LED indication: when source or sink is working, LED relative to is light.
l Uses 24bit /192KHz DAC
l No loss of quality
l Installs in minutes

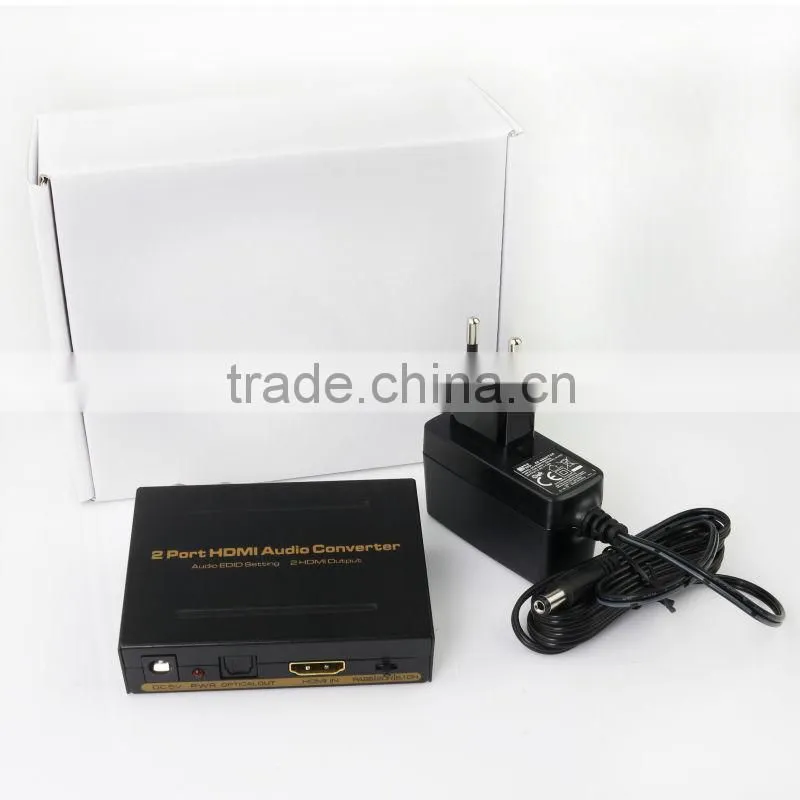

l DC5V/1A power adapter
SPECIFICATIONS: HDSP0002M1
HDMI resolution …………………………........................................ up to 1080P/50/60fs(3D 24/30fs)
Support video color format …………………………..…..…………………….24bit/deep color 30bit,36bit
HDMI Audio Format………………..DTS-HD/Dolby-TrueHD/LPCM 2/5.1/7.1CH/DTS/Dolby-AC3/DSD
SPDIF Digital audio format…………………………………………Dolby Digital (AC3)/DTS/LPCM 2CH
HDMI Max bandwidth………………………………………………………….……………………...225MHz
HDMI Max baud rate…………………….………………….………………….……………………6.75Gbps
Input/Output TMDS signal ………….……………………………….……………….0.5~1.5Volts p-p(TTL)
Input/Output DDC signal ……………………………………………..……………………. 5Volts p-p (TTL)
DAC sample frequency range………………………………………………………………….32~192 KHz
DAC Bit rate range………………………………………………………………………………….16~24 Bit
Analog output level(1kHz@0dB)...............................................................................................1V RMS
SNR @ 0dB(CCIR/ARM)………………………………………………………………………………≥90dB
Distortion………………………………………………………………………………………………...≤0.1%
Frequency response…………………………………………………………………………….20Hz~20KHz
HDMI input cable distance…………………………………………≤15m AWG26 HDMI standard cable
HDMI output cable distance………………………………………..≤20m AWG26 HDMI standard cable
Max working current …………………………………………………………….……….…….….….600mA
Power adapter format Input ……......….….…….…….…….…. AC 100V~240V 50HZ/60Hz, DC5V/1A
Operating Temperature range ……..…………….……………………………………………. -10 to +55°C
Storage Temperature range……………………………………………………………………. -20 to +60°C
Operating Humidity range ………………………….….……….……….10 to 90%RH (No Condensation)
Storage Humidity range………………………….….……….……………5 to 95%RH (No Condensation)
Case Dimension (L x W x H) ………………………………….…………………………. 85x62x21 (mm)
Weight …….…………………………….………………………………………….……………………. 130g
