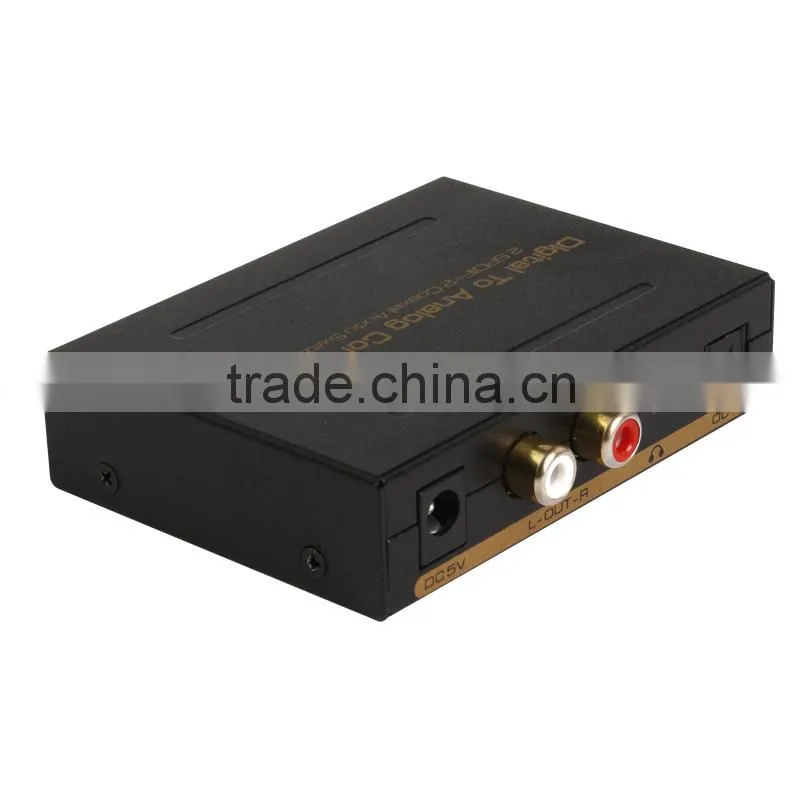

Help CenterDigital to Analog Converter
Related Products
-
Coax to Hdmi Converter BoxNegotiableMOQ: 50 Sets -
Compare Component Video or YPbPr to HDMI ConverterNegotiableMOQ: 200 Sets
-
Ypbpr to Hdmi Converter Box Manufacturer (3D)NegotiableMOQ: 200 Sets
-
USB2.0/3.0 Docking StationNegotiableMOQ: 200 Sets
-
Digital to Analog Audio Converter (DAC) 2RCANegotiableMOQ: 200 Sets
Specifications
Uses 192KHZ/24bit DACSupport LPCM digital audio converted to analog audio output
FEATURES:

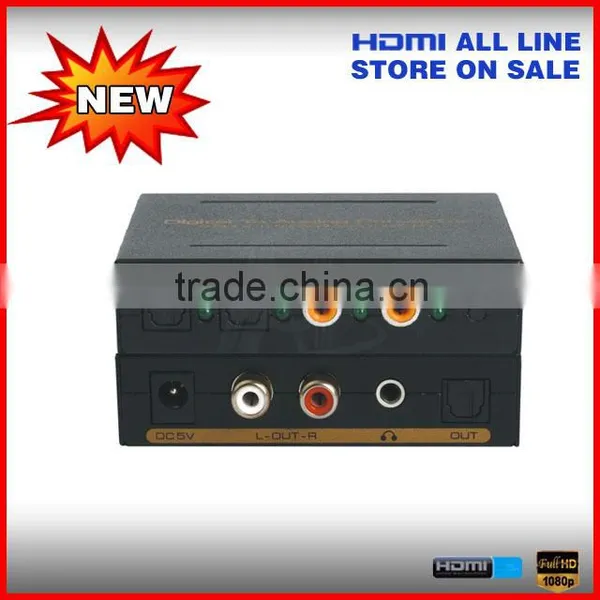

l 4-Ports SPDIF (2×Toslink and 2×Coaxial) digital audio input, switch to 1-Port SPDIF/Toslink output
and one L/R analog audio output and one headphone output
l Uses 192KHZ/24bit DAC
l Support digital audio formats: Dolby AC3, DTS, THX, HDCD, LPCM for SPDIF output
l Support LPCM digital audio converted to analog audio output
l Automatic identification input digital audio signal format, when non-LPCM input, analog output mute
l Input status indication. When no audio or error data input, the input port indicator starts to flash
l A key switch, easy operation
l Headphone amplifier output, can drive the general 3.5mm earphone
l High tone quality, low noise
l Power-off memory
l DC5V/1A power adapter
SPECIFICATIONS: ADSW0006M1
Analog Audio Output Support audio format ………………….…….…….….….……………… PCM/LPCM
DAC sample frequency range…………………………………………………………………. 32~192 KHz
DAC Bit rate range…………………………………………………………………………………..16~24 Bit
Digital input level………………………………………………………………………………..0.1~1Volts p-p
L/R output level(1kHz@0dB).....................................................................................................1V RMS
Headphone output power (1kHz@0dB RL=32)……………………………………………………….30mW
SNR @ 0dB(CCIR/ARM)………………………………………………………………………………….90dB
Distortion……………………………………………………………………………………………………0.1%
Frequency response……………………………………………………………………………..20Hz~20KHz
Max working current …………………………………………………………….……….…….….……100mA
Power adapter format Input ……......….….…….…….…….….. AC 100V~240V 50HZ/60Hz, DC5V/1A
Operating Temperature range ……..…………….………………………………………………-10 to +55°C
Storage Temperature range………………………………………………………………………-20 to +60°C
Operating Humidity range ………………………….….……….………...10 to 90%RH (No Condensation)
Storage Humidity range………………………….….……….……………..5 to 95%RH (No Condensation)
Case Dimension (L x W x H) ………………………………….……………………………..85x62x21 (mm)
Weight …….…………………………….………………………………………….……………………….130g
