Flexible UHMWPE Suction Hose Pipe
US$ 2 - 200
MOQ: 100 Meters
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
MAX
Model Number:
UHMWPE PIPE
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sale Wear Resistant UHMWPE Slurry Discharge PipeUS$ 2 - 200MOQ: 100 Meters -
OD315mm UHMWPE Slurry Pipe for Dredging ProjectUS$ 20 - 280MOQ: 100 Meters
-
High Working Pressure 2.0Mpa UHMWPE Dredging Pipe, DredgerUS$ 20 - 300MOQ: 100 Meters
-
High Corrosion Resistance UHMWPE Pipe Used in Coal Tailing Mining and CementUS$ 15 - 500MOQ: 100 Meters
-
Large Diameter UHMWPE Composite PipeUS$ 15 - 500MOQ: 100 Meters
Place of Origin
Henan, China
Brand Name
MAX
Model Number
UHMWPE PIPE
Material
Other, UHMWPE powder
Specification
65mm-800mm
Length
6m, 12m or as required
Thickness
8mm-38mm
Standard
GB Standard
What is UHMWPE:
Ultra-high molecular weight polyethylene (UHMWPE) is a kind of engineering thermoplastics with more than 2 million viscosity-average molecular weight, under the polymerization of ethylene, butadiene monomer in the catalyst.
UHMWPE pipe features:
1. Anti-abrasion:the abrasion value of UHMWPE pipe is 1/4 of steel pipe,1/3 of HDPE pipe under same working condition.
2. Water hammer resistance:UHMWPE pipes have strong enduring capability to the impacts from various sands,mud and slurries.
3. Corrosive resistance:With higher structure stability ,UHMWPE pipes are corrosive resistant to sea waters.No electro chemical corrosion,no need anti-corrosive coating.
4. Self-lubrication:The roughness of UHMWPE pipe is 0.00022mm.The pressure loss of UHMWPE pipe is 1/10 of steel pipes ,1/7 of nylon pipes.Over 20% of transfer efficiency will be increased.
5. Non-scaling:The internal wall is very smooth,preventing the fouling on the wall and no influence to the production efficiency.
6. Light weight:The density of UHMWPE pipe is only 1/8 of steel pipe.It is easy to move and install,especially suitable for the working sites at he lifting machines could not work.
7. Easy connection:flanges are available to connect the pipes,no need washers .The installation will be very easy and fast.
8. Anti-aging:the UHMWPE pipes will not be aging in 50 years under hot sunlight,and it could work over 100 years if buried underground.
9. Environment friendly: UHMWPE pipe is nontoxic,no bacteria,and no pollution to environment.
10. Low carbon:the discharge of carbon dioxide during UHMWPE pipe production is only 15% of steel pipe production.
1. Anti-abrasion:the abrasion value of UHMWPE pipe is 1/4 of steel pipe,1/3 of HDPE pipe under same working condition.
2. Water hammer resistance:UHMWPE pipes have strong enduring capability to the impacts from various sands,mud and slurries.
3. Corrosive resistance:With higher structure stability ,UHMWPE pipes are corrosive resistant to sea waters.No electro chemical corrosion,no need anti-corrosive coating.
4. Self-lubrication:The roughness of UHMWPE pipe is 0.00022mm.The pressure loss of UHMWPE pipe is 1/10 of steel pipes ,1/7 of nylon pipes.Over 20% of transfer efficiency will be increased.
5. Non-scaling:The internal wall is very smooth,preventing the fouling on the wall and no influence to the production efficiency.
6. Light weight:The density of UHMWPE pipe is only 1/8 of steel pipe.It is easy to move and install,especially suitable for the working sites at he lifting machines could not work.
7. Easy connection:flanges are available to connect the pipes,no need washers .The installation will be very easy and fast.
8. Anti-aging:the UHMWPE pipes will not be aging in 50 years under hot sunlight,and it could work over 100 years if buried underground.
9. Environment friendly: UHMWPE pipe is nontoxic,no bacteria,and no pollution to environment.
10. Low carbon:the discharge of carbon dioxide during UHMWPE pipe production is only 15% of steel pipe production.
Application Areas of UHMWPE Pipe:
UHMWPE pipe is widely used in metallurgical mines, electric power, petroleum, natural gas, textiles, paper making, food, chemical industry, machinery, electrical and other industries.
Main characteristics of UHMWPE Mine Pipe:
1. Extremely high wear resistance;
2. Very high impact resistance;
3. Corrosion resistance;
4. Good self-lubrication;
5. The unique resistance to low temperature;
6. Not easy to form dirt;
7. Long life-span;
8. Easy installation.
UHMWPE Slurry Pipe Advantages:
UHMWPE Slurry Pipe Advantages:
1.Extremely High Wear Resistance
2. High Impact Resistant
3.High Corrosion Resistant
4.Good Self-Lubrication
5. High Flow-Rate
6.Resistant to Scale and Scale Build up
7.Unique Resistance to Low Temperature
8. Non-Toxic
9. Flexible
10. Easy to Handle
Besides, UHMWPE pipe can absorb energy, absorb noise, It is UV Resistant and can be colored.
The UHMWPE Mine PIPE specification:
| Diameter MM | 0.6Mpa | 0.8Mpa | 1.0Mpa | 1.25Mpa | 1.6Mpa | 2.0Mpa |
| Thick(MM) | Thick(MM) | Thick(MM) | Thick(MM) | Thick(MM) | Thick(MM) | |
| 65 | 8 | 9 | ||||
| 96 | 9 | 10 | ||||
| 110 | 8 | 10 | ||||
| 130 | 8 | 10 | 12 | |||
| 159 | 10 | 12 | 15 | |||
| 168 | 8 | 10 | 13 | 16 | ||
| 205 | 8 | 10 | 12 | 15 | 18 | |
| 219 | 9 | 11 | 13 | 16 | 20 | |
| 236 | 10 | 12 | 14 | 18 | 22 | |
| 250 | 10 | 12 | 15 | 19 | 23 | |
| 273 | 9 | 11 | 13 | 16 | 21 | 25 |
| 280 | 9 | 11 | 14 | 17 | 21 | 26 |
| 300 | 10 | 12 | 15 | 18 | 23 | 27 |
| 315 | 10 | 12 | 15 | 19 | 24 | 29 |
| 325 | 10 | 13 | 16 | 19 | 24 | 30 |
| 350 | 11 | 14 | 17 | 21 | 26 | 32 |
| 377 | 12 | 15 | 18 | 22 | 28 | 35 |
| 400 | 12 | 16 | 19 | 24 | 30 | 36 |
| 415 | 13 | 16 | 20 | 25 | 31 | |
| 426 | 13 | 17 | 20 | 25 | 32 | |
| 536 | 16 | 21 | 26 | 23 | ||
| 560 | 16 | 22 | 27 | 33 | ||
| 630 | 19 | 25 | 30 | 37 | ||
| 652 | 20 | 26 | 32 | 38 | ||
| 710 | 21 | 27 | 34 | |||
| 800 | 23 | 31 | 38 |

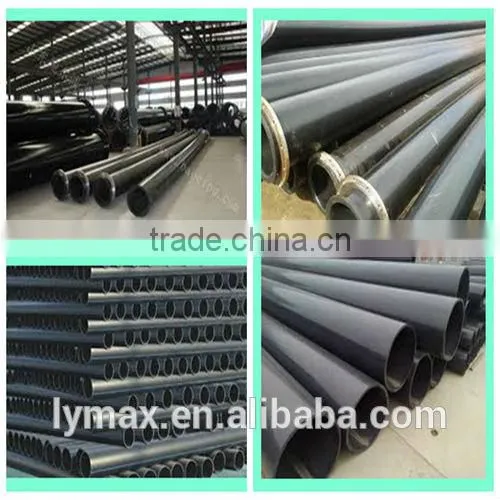

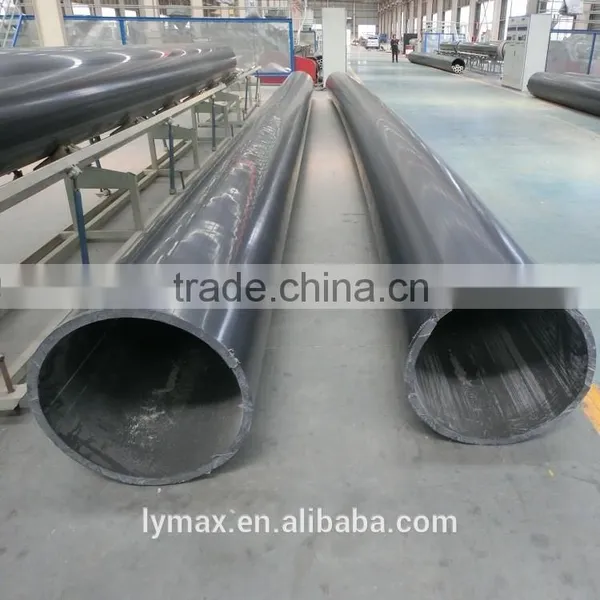

The UHMWPE Pipe Photo:
