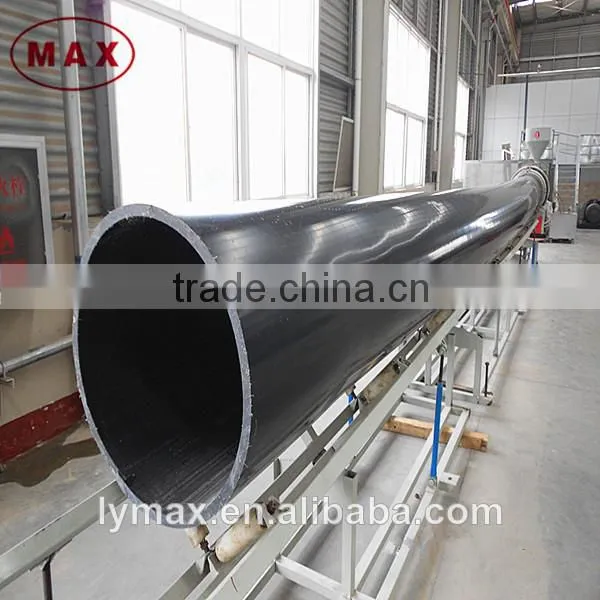

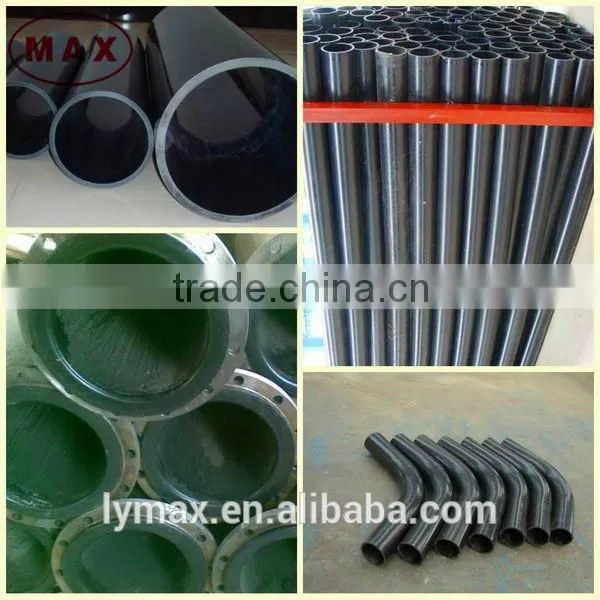

Large Diameter UHMWPE Composite Pipe
Brief Introduction
UHMWPE is a thermoplastic engineering plastic with a viscosity-average molecular weigh greater than 1.5×106, and is made by polymerization of ethylene under the action of a catalyst. Its molecular weight has reached over 5 million, its five properties of abrasion, impact and corrosion resistance, self-lubrication, and absorption of impact energy are the best among the available plastics. It is called globally “marvelous plastics” UHMWPE, a new star of materials, will present a vigorous life and play an important part in many regions of the national economy.
Characteristics
1. Outstanding impact strength even at very low temperature.
Advantages
1.Extremely High Wear Resistance
2. High Impact Resistant
3.High Corrosion Resistant
4.Good Self-Lubrication
5. High Flow-Rate
6.Resistant to Scale and Scale Build up
7.Unique Resistance to Low Temperature
8. Non-Toxic
9. Flexible
10. Easy to Handle
Besides, UHMWPE pipe can absorb energy, absorb noise, It is UV Resistant and can be colored.
Applications
1.To transport sand and mud and slurry in river/habor/sea water dredging industry.
2.To transport mine tailings and slurry ,metallurgical mines,in the mining industry
3.To transport powder and coal ash in thermal power plant
4.To transport pulverized coal and coal-water slurry of coal preparation plant in the coal industry
5.To transport mud and corrosive media with slag in the chemical industry
6.To transport crud oil,petroleum, food and natural gas
Specifications
| Diameter MM | 0.6Mpa | 0.8Mpa | 1.0Mpa | 1.25Mpa | 1.6Mpa | 2.0Mpa |
| Thick(MM) | Thick(MM) | Thick(MM) | Thick(MM) | Thick(MM) | Thick(MM) | |
| 65 | 8 | 9 | ||||
| 96 | 9 | 10 | ||||
| 110 | 8 | 10 | ||||
| 130 | 8 | 10 | 12 | |||
| 159 | 10 | 12 | 15 | |||
| 168 | 8 | 10 | 13 | 16 | ||
| 205 | 8 | 10 | 12 | 15 | 18 | |
| 219 | 9 | 11 | 13 | 16 | 20 | |
| 236 | 10 | 12 | 14 | 18 | 22 | |
| 250 | 10 | 12 | 15 | 19 | 23 | |
| 273 | 9 | 11 | 13 | 16 | 21 | 25 |
| 280 | 9 | 11 | 14 | 17 | 21 | 26 |
| 300 | 10 | 12 | 15 | 18 | 23 | 27 |
| 315 | 10 | 12 | 15 | 19 | 24 | 29 |
| 325 | 10 | 13 | 16 | 19 | 24 | 30 |
| 350 | 11 | 14 | 17 | 21 | 26 | 32 |
| 377 | 12 | 15 | 18 | 22 | 28 | 35 |
| 400 | 12 | 16 | 19 | 24 | 30 | 36 |
| 415 | 13 | 16 | 20 | 25 | 31 | |
| 426 | 13 | 17 | 20 | 25 | 32 | |
| 536 | 16 | 21 | 26 | 23 | ||
| 560 | 16 | 22 | 27 | 33 | ||
| 630 | 19 | 25 | 30 | 37 | ||
| 652 | 20 | 26 | 32 | 38 | ||
| 710 | 21 | 27 | 34 | |||
| 800 | 23 | 31 | 38 |
