Hot Sale Wear Resistant UHMWPE Slurry Discharge Pipe

FOB Price

US$ 2 - 200 / Meter

100 Meters(Min. Order)

Port Qingdao Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China	Brand Name	MAX
Model Number	UHMWPE PIPE	Material	Other, UHMWPE powder
Specification	65mm-800mm	Length	6m, 12m or as required
Thickness	8mm-38mm	Standard	GB Standard

Product Description

What is UHMWPE:

Ultra-high molecular weight polyethylene (UHMWPE) is a kind of engineering thermoplastics with more than 2 million viscosity-average molecular weight, under the polymerization of ethylene, butadiene monomer in the catalyst.

UHMWPE pipe features:
1. Anti-abrasion:the abrasion value of UHMWPE pipe is 1/4 of steel pipe,1/3 of HDPE pipe under same working condition.
2. Water hammer resistance:UHMWPE pipes have strong enduring capability to the impacts from various sands,mud and slurries.
3. Corrosive resistance:With higher structure stability ,UHMWPE pipes are corrosive resistant to sea waters.No electro chemical corrosion,no need anti-corrosive coating.
4. Self-lubrication:The roughness of UHMWPE pipe is 0.00022mm.The pressure loss of UHMWPE pipe is 1/10 of steel pipes ,1/7 of nylon pipes.Over 20% of transfer efficiency will be increased.
5. Non-scaling:The internal wall is very smooth,preventing the fouling on the wall and no influence to the production efficiency.
6. Light weight:The density of UHMWPE pipe is only 1/8 of steel pipe.It is easy to move and install,especially suitable for the working sites at he lifting machines could not work.
7. Easy connection:flanges are available to connect the pipes,no need washers .The installation will be very easy and fast.
8. Anti-aging:the UHMWPE pipes will not be aging in 50 years under hot sunlight,and it could work over 100 years if buried underground.
9. Environment friendly: UHMWPE pipe is nontoxic,no bacteria,and no pollution to environment.
10. Low carbon:the discharge of carbon dioxide during UHMWPE pipe production is only 15% of steel pipe production.

Application Areas of UHMWPE Pipe:

UHMWPE pipe is widely used in metallurgical mines, electric power, petroleum, natural gas, textiles, paper making, food, chemical industry, machinery, electrical and other industries.

Main characteristics of UHMWPE Mine Pipe:

1. Extremely high wear resistance;

2. Very high impact resistance;

3. Corrosion resistance;

4. Good self-lubrication;

5. The unique resistance to low temperature;

6. Not easy to form dirt;

7. Long life-span;

8. Easy installation.
UHMWPE Slurry Pipe Advantages:

1.Extremely High Wear Resistance
2. High Impact Resistant
3.High Corrosion Resistant
4.Good Self-Lubrication
5. High Flow-Rate
6.Resistant to Scale and Scale Build up
7.Unique Resistance to Low Temperature
8. Non-Toxic
9. Flexible
10. Easy to Handle
Besides, UHMWPE pipe can absorb energy, absorb noise, It is UV Resistant and can be colored.

The UHMWPE Mine PIPE specification:

Diameter MM	0.6Mpa	0.8Mpa	1.0Mpa	1.25Mpa	1.6Mpa	2.0Mpa
	Thick(MM)	Thick(MM)	Thick(MM)	Thick(MM)	Thick(MM)	Thick(MM)
	Thick(MM)	Thick(MM)	Thick(MM)	Thick(MM)	Thick(MM)	Thick(MM)
65					8	9
96					9	10
110					8	10
130				8	10	12
159				10	12	15
168			8	10	13	16
205		8	10	12	15	18
219		9	11	13	16	20
236		10	12	14	18	22
250		10	12	15	19	23
273	9	11	13	16	21	25
280	9	11	14	17	21	26
300	10	12	15	18	23	27
315	10	12	15	19	24	29
325	10	13	16	19	24	30
350	11	14	17	21	26	32
377	12	15	18	22	28	35
400	12	16	19	24	30	36
415	13	16	20	25	31
426	13	17	20	25	32
536	16	21	26	23
560	16	22	27	33
630	19	25	30	37
652	20	26	32	38
710	21	27	34
800	23	31	38

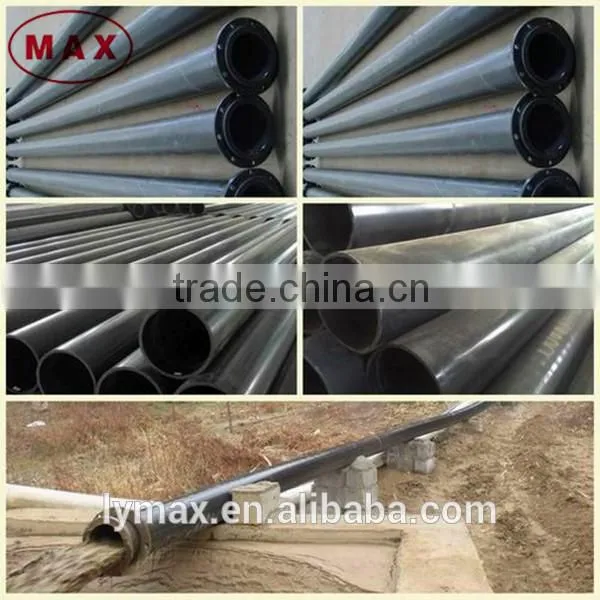

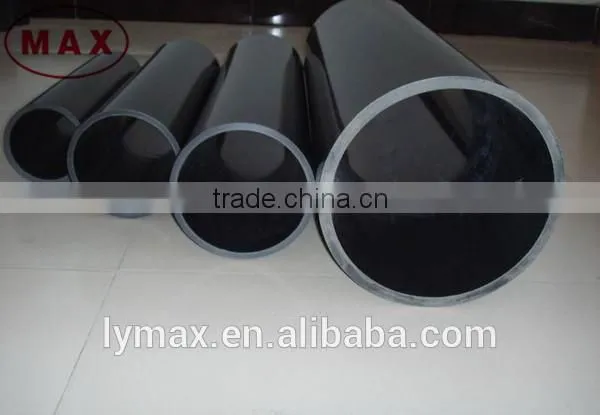

The UHMWPE Pipe Photo:
