12 Inch Flexible Pump Used Rubber Water Hose With Steel Flanges
US$ 30.5 - 560
MOQ: 50 Meters
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
MAX
Model Number:
Rubber Hose Pipe
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai etc
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
300mm Diameter Suction & Discharge Rubber Hose Pipe With Pn10 FlangesUS$ 30.5 - 560MOQ: 50 Meters -
Flanged Joint 8 Inch Flexible Hose for Sand Dredging PumpUS$ 30.5 - 560MOQ: 50 Meters
-
150 PSI Water Pump Used Fixed Flange Joint Flexible Hose DN250mmUS$ 30.5 - 560MOQ: 50 Meters
-
6 Meters Long Suction Hose Pipe for Water PumpingUS$ 30.5 - 560MOQ: 50 Meters
-
Large Diameter 600mm Sand and Water Suction Hose Pipe PriceUS$ 30.5 - 560MOQ: 50 Meters
Place of Origin
Henan, China
Brand Name
MAX
Model Number
Rubber Hose Pipe
12 inch flexible pump used rubber water hose with steel flanges
Rubber Hose Pipe Applications:
1. Used for mud piping of dredge.
2. Widely used for sucking or discharging of mud,water, oil, air, and Powered in Industry, agriculture, factory, mining and building etc.
1. Used for mud piping of dredge.
2. Widely used for sucking or discharging of mud,water, oil, air, and Powered in Industry, agriculture, factory, mining and building etc.
Rubber Hose Pipe Materials:
Tube: Smooth NR/ synthetic rubber, generally color is black
Reinforcement: one or multilayer spiral fabric reinforcements, steel wire spiral layer,
Cover: Oil, abration and weather-resistant wrapped synthetic rubber.
suction Hose Pipe Structure:
1. The inner rubber liner is composed of wear-proof natural rubber and synthetic rubber
2. The reinforcement layer is composed of high strength rubber dipped chemical fiber and reinforced by spiral metal wire.
3. The rubber cover is composed of natural rubber and synthetic rubber.
4. The surface of the hose takes the shape of corrugated
Performance:
1. Rubber hose pipes are used with dredgers for silt/gravels conveyance.
2. Pipe wall thickness range: from 20mm up to 50mm.
3. The suitable working temperature: from -20°C to +50°C.
4. Abrasion-resistant and bending –resistant.
5. It is convenient to install, flexible to use and safe.
Suction Hose Pipe Specification Table
Ship type | Dredging hose I.D. | Thickness of the steel ring | Number of tyre cord layer | Length |
200m3 /H | 400mm | 35mm | 12 | 1400mm |
350m3/H | 560 mm | 35 mm | 12 | 1500mm |
Beaver1600 | 500 mm | 35mm | 12 | 1500mm |
Beaver3800 | 650 mm | 40mm | 15 | 1500mm |
Beaver4600 | 700 mm | 40mm | 15 | 1500mm |
Note: other size can be customized
Hose Pipe Physical Index:
Testing Item | National Standard of Hose Lining | Standard of the Company |
Tensile Strength at Break (MPa) | >12 | >150 |
Elongation at Break % | >400 | >500 |
Akron Abrasion cm3/1.6km | 1 | <0.8 |
Shore Hardness |
| 63±3 |
Application Temperature °C |
| -40~+60 |

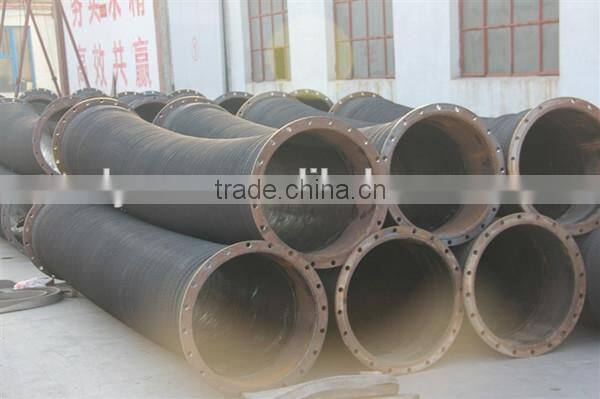

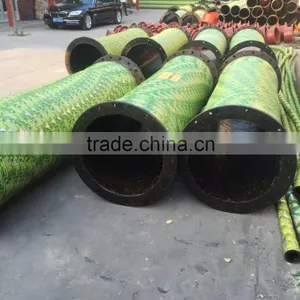

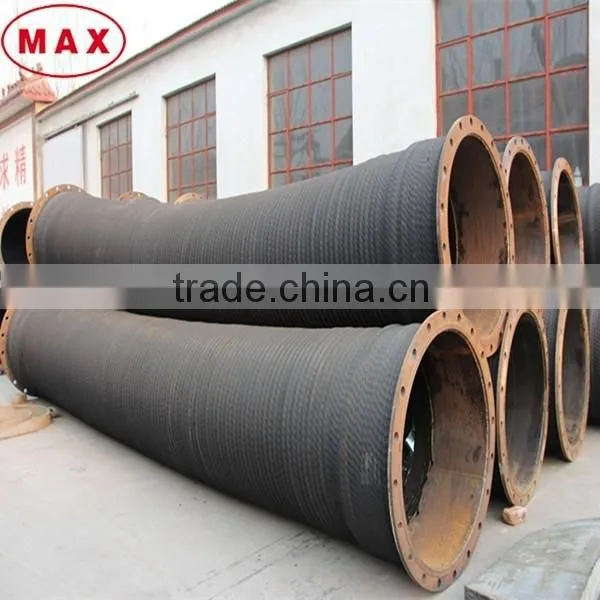

Finished Products

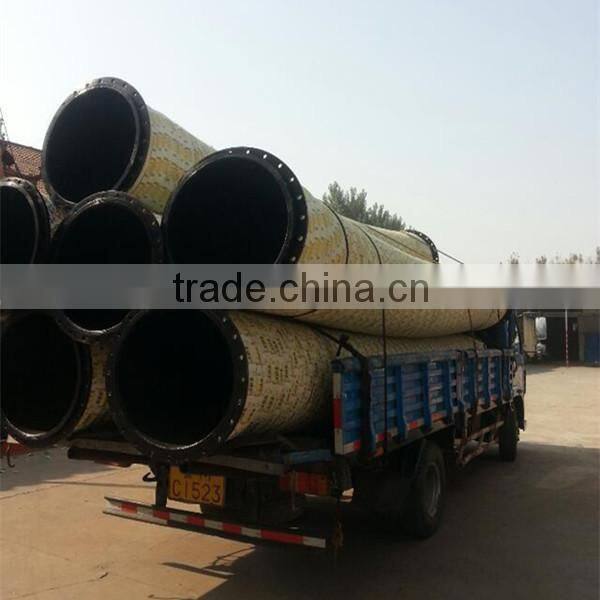

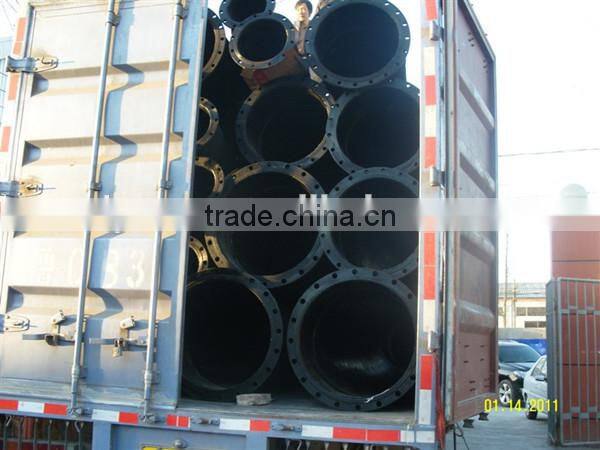

Loading & Transport
Widely Application for Water Pump & Dredging Operation
