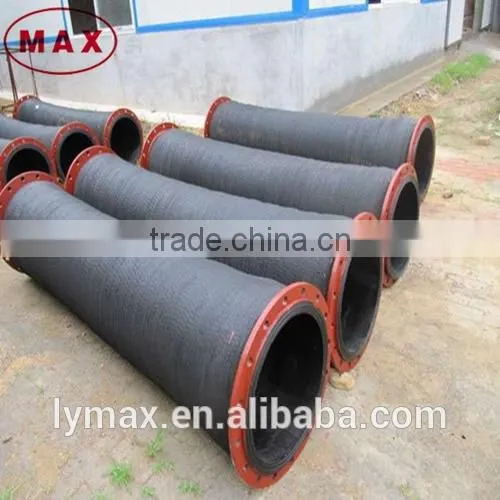

Flexible Rubber Suction Hose Pipe 600mm, Flanged Suction Hose Pipe
US$ 30.5 - 560
MOQ: 50 Meters
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
MAX
Model Number:
Rubber Hose Pipe
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai etc
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Used Rubber Slurry Hose Pipe With Fixed FlangesUS$ 30.5 - 560MOQ: 50 Meters -
600mm Dia. Flexible Rubber Slurry Hose for Sand DiachargeUS$ 30.5 - 560MOQ: 50 Meters
-
Flanged Rubber Slurry Hose Pipe for Sand, Mud DischargeUS$ 30.5 - 560MOQ: 50 Meters
-
Wear Resistance Rubber Slurry Hose With FlangesUS$ 30.5 - 560MOQ: 50 Meters
-
Professional Manufacture of Large Diameter Rubber Slurry Pipe for Sand DischargeUS$ 30.5 - 560MOQ: 50 Meters
Place of Origin
Henan, China
Brand Name
MAX
Model Number
Rubber Hose Pipe
Specifications
suction hose pipeWire braided flexible rubber hose pipe
Lifespan more than 50 years
Non-toxic,dose not scale
Flexible rubber suction hose pipe 600mm, flanged suction hose pipe
Rubber Hose Pipe Applications:
1. Used for mud piping of dredge.
2. Widely used for sucking or discharging of mud,water, oil, air, and Powered in Industry, agriculture, factory, mining and building etc.
1. Used for mud piping of dredge.
2. Widely used for sucking or discharging of mud,water, oil, air, and Powered in Industry, agriculture, factory, mining and building etc.
Rubber Hose Pipe Materials:
Tube: Smooth NR/ synthetic rubber, generally color is black
Reinforcement: one or multilayer spiral fabric reinforcements, steel wire spiral layer,
Cover: Oil, abration and weather-resistant wrapped synthetic rubber.
dredging rubber Hose Pipe Structure:
1. The inner rubber liner is composed of wear-proof natural rubber and synthetic rubber
2. The reinforcement layer is composed of high strength rubber dipped chemical fiber and reinforced by spiral metal wire.
3. The rubber cover is composed of natural rubber and synthetic rubber.
4. The surface of the hose takes the shape of corrugated
Performance:
1. Rubber hose pipes are used with dredgers for silt/gravels conveyance.
2. Pipe wall thickness range: from 20mm up to 50mm.
3. The suitable working temperature: from -20°C to +50°C.
4. Abrasion-resistant and bending –resistant.
5. It is convenient to install, flexible to use and safe.
Suction Hose Pipe Specification Table
Ship type | Dredging hose I.D. | Thickness of the steel ring | Number of tyre cord layer | Length |
200m3 /H | 400mm | 35mm | 12 | 1400mm |
350m3/H | 560 mm | 35 mm | 12 | 1500mm |
Beaver1600 | 500 mm | 35mm | 12 | 1500mm |
Beaver3800 | 650 mm | 40mm | 15 | 1500mm |
Beaver4600 | 700 mm | 40mm | 15 | 1500mm |
Note: other size can be customized
Hose Pipe Physical Index:
Testing Item | National Standard of Hose Lining | Standard of the Company |
Tensile Strength at Break (MPa) | >12 | >150 |
Elongation at Break % | >400 | >500 |
Akron Abrasion cm3/1.6km | 1 | <0.8 |
Shore Hardness |
| 63±3 |
Application Temperature °C |
| -40~+60 |
