Flanged joint 8 inch flexible hose for sand dredging pump
Hose I.D.(MM) |
Length (Meter) |
Working Pressure |
200 |
1-10 |
5-30bar |
250 |
1-10 |
5-30bar |
300 |
1-10 |
5-30bar |
350 |
1-10 |
5-30bar |
400 |
1-10 |
5-30bar |
450 |
1-10 |
5-30bar |
500 |
1-10 |
5-30bar |
600 |
1-10 |
5-30bar |
650 |
1-10 |
5-30bar |
700 |
1-10 |
5-30bar |
750 |
1-10 |
5-30bar |
800 |
1-10 |
5-30bar |
850 |
1-10 |
5-30bar |
900 |
1-10 |
5-30bar |
Other size can be made upon request.
Hose Pipe Physical Index:
Testing Item |
National Standard of Hose Lining |
Standard of the Company |
Tensile Strength at Break (MPa) |
>12 |
>15 |
Elongation at Break % |
>400 |
>500 |
Akron Abrasion cm3/1.6km |
1 |
<0.8 |
Shore Hardness |
|
63±3 |
Application Temperature °C |
|
-40~+60 |

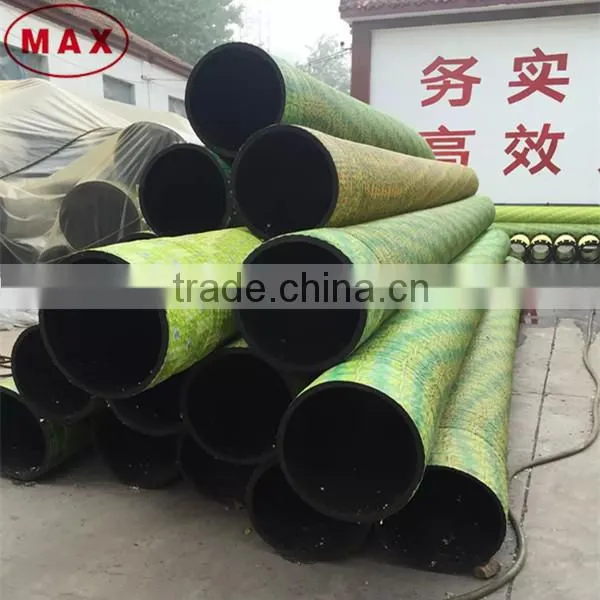

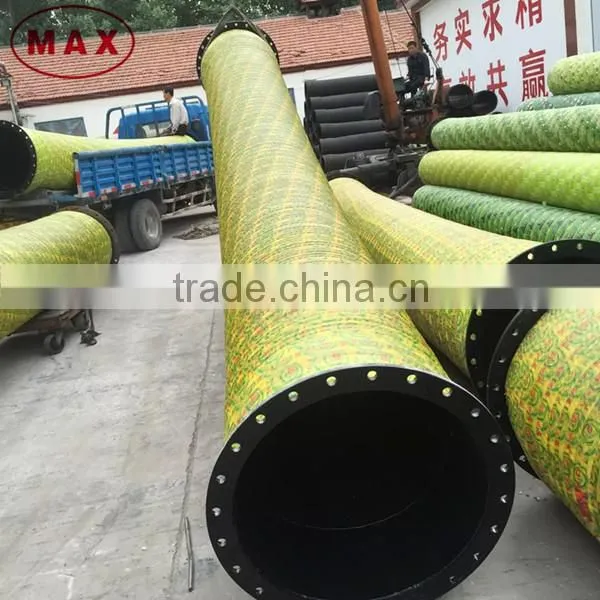

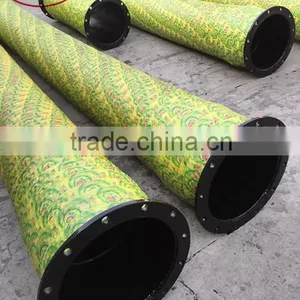

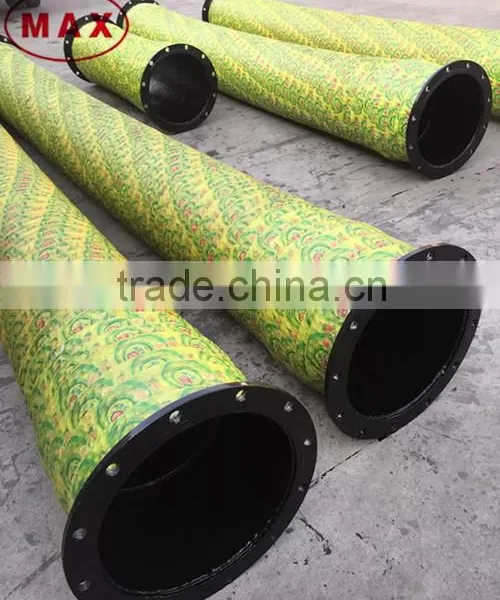

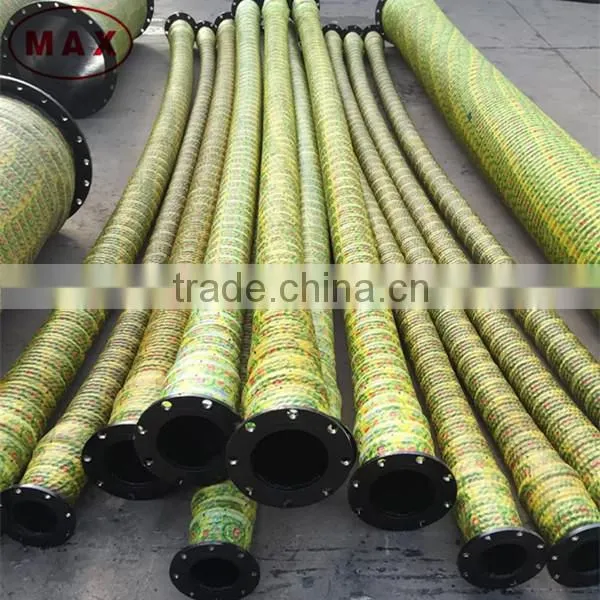

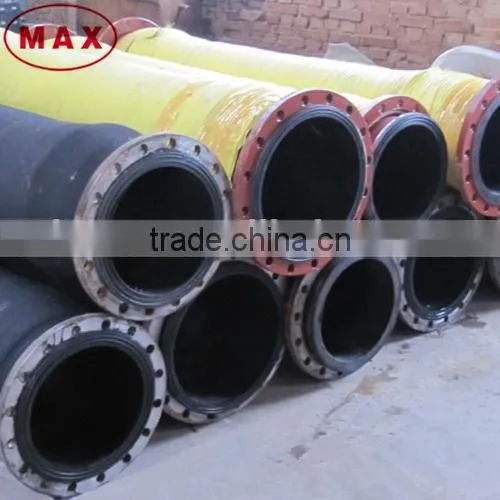

Product display:
The advantages of special wire rubber hose:
1. Rubber hose pipes are used with dredgers for silt/gravels conveyance.
2. Pipe wall thickness range: from 20mm up to 50mm.
3. The suitable working temperature: from -20°C to +50°C.
4. Abrasion-resistant and bending –resistant.
5. It is convenient to install, flexible to use and safe.

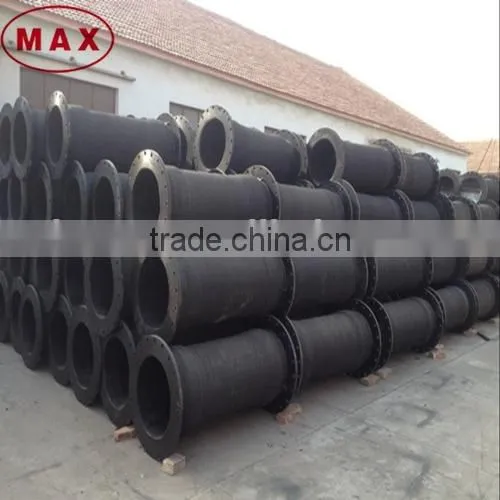

Loading & Transport
Luoyang Max Import & Export Trading Co., Ltd specialize in the production of multi size pipe and pipe fittings products of HDPE pipe, UHMWPE pipe, floater, rubber hose and so on. We have successfully exported our products to Southeast Asia, Africa, South America, Australia, Span, Columbia and other countries and regions, and gain the customers’ praise consistently. With business concept of mutual benefit and joint development, we sincerely look forward to the service for you.
Very welcome your any inquiry on our products!
