High Pressure Large Diameter Rubber Hose Pipe 560mm for Dredging
1.Rubber hose description:
Rubber Hose Pipe Materials:
Tube: Smooth NR/ synthetic rubber, generally color is black
Reinforcement: one or multilayer spiral fabric reinforcements, steel wire spiral layer,
Cover: Oil, abration and weather-resistant wrapped synthetic rubber.
Rubber Hose Pipe Structure:
1. The inner rubber liner is composed of wear-proof natural rubber and synthetic rubber
2. The reinforcement layer is composed of high strength rubber dipped chemical fiber and reinforced by spiral metal wire.
3. The rubber cover is composed of natural rubber and synthetic rubber.
4. The surface of the hose takes the shape of corrugated
Rubber Hose Pipe Performance:
1. Rubber hose pipes are used with dredgers for silt/gravels conveyance.
2. Pipe wall thickness range: from 20mm up to 50mm.
3. The suitable working temperature: from -20°C to +50°C.
4. Abrasion-resistant and bending –resistant.
5. It is convenient to install, flexible to use and safe.
Rubber Hose Pipe Applications:
1. Used for mud piping of dredge.
2. Widely used for sucking or discharging of mud,water, oil, air, and Powered in Industry, agriculture, factory, mining and building etc.
Rubber Hose Pipe Specification Table:
Ship type |
Dredging hose I.D. |
Thickness of the steel ring |
Number of tyre cord layer |
Length |
200m3 /H |
400mm |
35mm |
12 |
1400mm |
350m3/H |
560 mm |
35 mm |
12 |
1500mm |
Beaver1600 |
500 mm |
35mm |
12 |
1500mm |
Beaver3800 |
650 mm |
40mm |
15 |
1500mm |
Beaver4600 |
700 mm |
40mm |
15 |
1500mm |
Note: other size can be customized
Rubber Hose Pipe Physical Index:
Testing Item |
National Standard of Hose Lining |
Standard of the Company |
Tensile Strength at Break (MPa) |
>12 |
>150 |
Elongation at Break % |
>400 |
>500 |
Akron Abrasion cm3/1.6km |
1 |
<0.8 |
Shore Hardness |
|
63±3 |
Application Temperature °C |
|
-40~+60 |

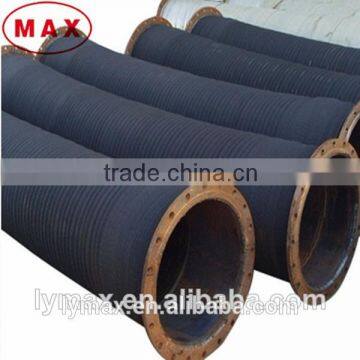

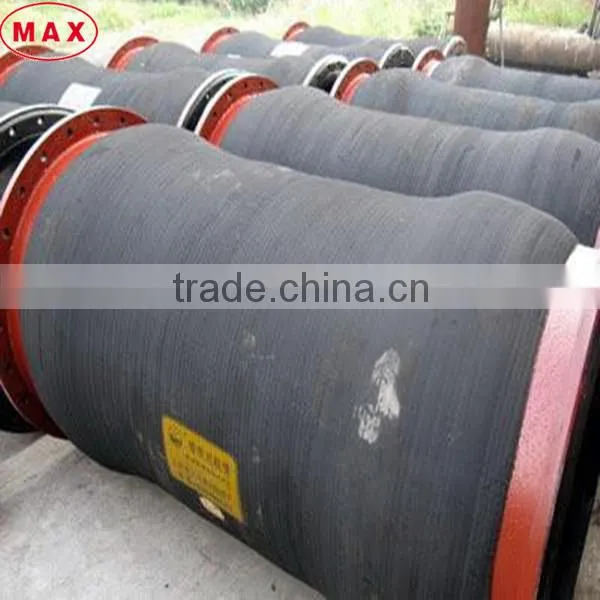

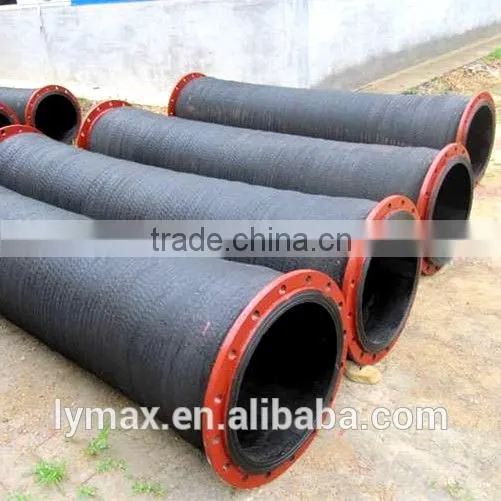

2.Product Show of flexible rubber hose :
