Sand Suction Hose With Fixed Flanges for Sea Dredging Project
US$ 30.5 - 560
MOQ: 50 Meters
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
MAX
Model Number:
Rubber Hose Pipe
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai etc
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Professional Manufacture Flange Joint Braided Flexible Suction HoseUS$ 30.5 - 560MOQ: 50 Meters -
150PSI DN500mm Diameter Water Pump Used Flange Joint Flexible HoseUS$ 30.5 - 560MOQ: 50 Meters
-
Wire Braided Flange Joint Flexible Hose for Sand Suction Dredge PumpUS$ 30.5 - 560MOQ: 50 Meters
-
150PSI DN350mm, 400mm, 500mm Flange Joint Flexible Hose for DredgingUS$ 30.5 - 560MOQ: 50 Meters
-
Flange Joint Braided Flexible Suction Hose for Dredging PumpUS$ 30.5 - 560MOQ: 50 Meters
Place of Origin
Henan, China
Brand Name
MAX
Model Number
Rubber Hose Pipe
Specifications
suction hoseWire braided flexible rubber hose pipe
Custom-made flange
More than 10 years manufacture experience
Sand suction hose with fixed flanges for sea dredging project
Rubber Hose Pipe Applications:
1. Used for mud piping of dredge.
2. Widely used for sucking or discharging of mud,water, oil, air, and Powered in Industry, agriculture, factory, mining and building etc.
1. Used for mud piping of dredge.
2. Widely used for sucking or discharging of mud,water, oil, air, and Powered in Industry, agriculture, factory, mining and building etc.
Rubber Hose Pipe Materials:
Tube: Smooth NR/ synthetic rubber, generally color is black
Reinforcement: one or multilayer spiral fabric reinforcements, steel wire spiral layer,
Cover: Oil, abration and weather-resistant wrapped synthetic rubber.
suction Hose Pipe Structure:
1. The inner rubber liner is composed of wear-proof natural rubber and synthetic rubber
2. The reinforcement layer is composed of high strength rubber dipped chemical fiber and reinforced by spiral metal wire.
3. The rubber cover is composed of natural rubber and synthetic rubber.
4. The surface of the hose takes the shape of corrugated
Performance:
1. Rubber hose pipes are used with dredgers for silt/gravels conveyance.
2. Pipe wall thickness range: from 20mm up to 50mm.
3. The suitable working temperature: from -20°C to +50°C.
4. Abrasion-resistant and bending –resistant.
5. It is convenient to install, flexible to use and safe.
Suction Hose Pipe Specification Table
Ship type |
Dredging hose I.D. |
Thickness of the steel ring |
Number of tyre cord layer |
Length |
200m3 /H |
400mm |
35mm |
12 |
1400mm |
350m3/H |
560 mm |
35 mm |
12 |
1500mm |
Beaver1600 |
500 mm |
35mm |
12 |
1500mm |
Beaver3800 |
650 mm |
40mm |
15 |
1500mm |
Beaver4600 |
700 mm |
40mm |
15 |
1500mm |
Note: other size can be customized
Hose Pipe Physical Index:
Testing Item |
National Standard of Hose Lining |
Standard of the Company |
Tensile Strength at Break (MPa) |
>12 |
>150 |
Elongation at Break % |
>400 |
>500 |
Akron Abrasion cm3/1.6km |
1 |
<0.8 |
Shore Hardness |
|
63±3 |
Application Temperature °C |
|
-40~+60 |

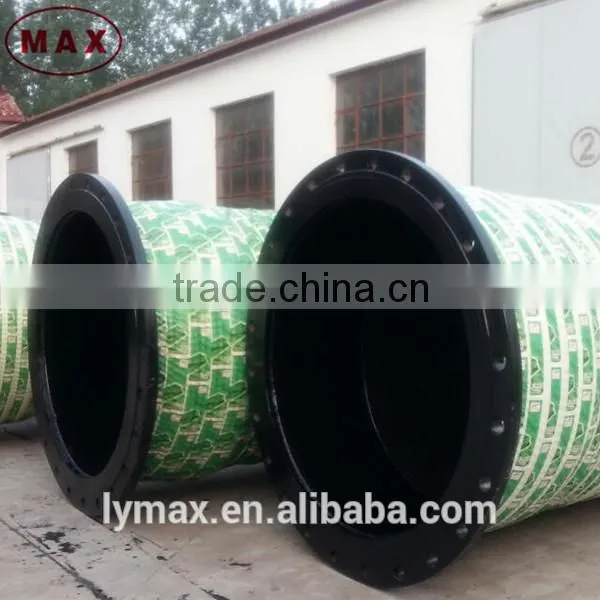

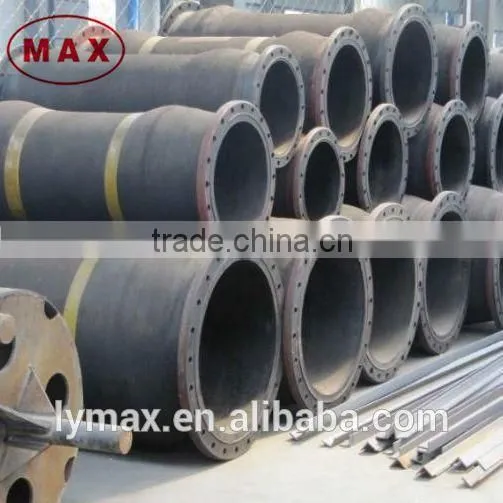

Finished Products
Loading & Transport
Widely Application for Water Pump & Dredging Operation
