Home > Chemicals > Rubber & Rubber Products > Rubber Tube, Pipe & Hose > Wire Braided Flange Joint Flexible Hose for Sand Suction Dredge Pump

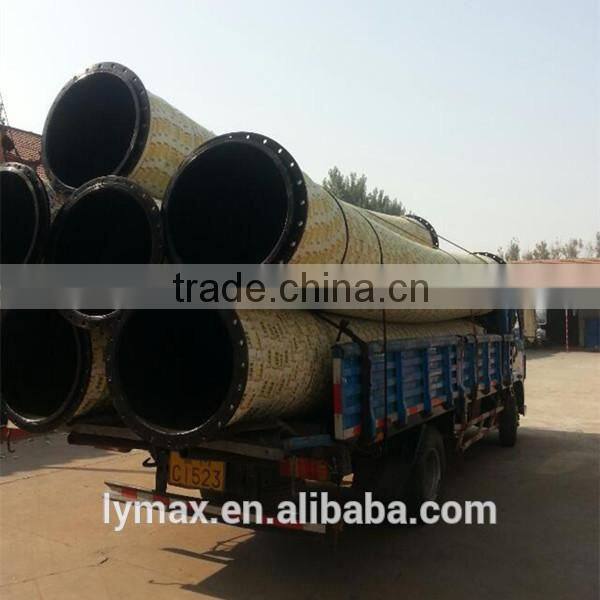

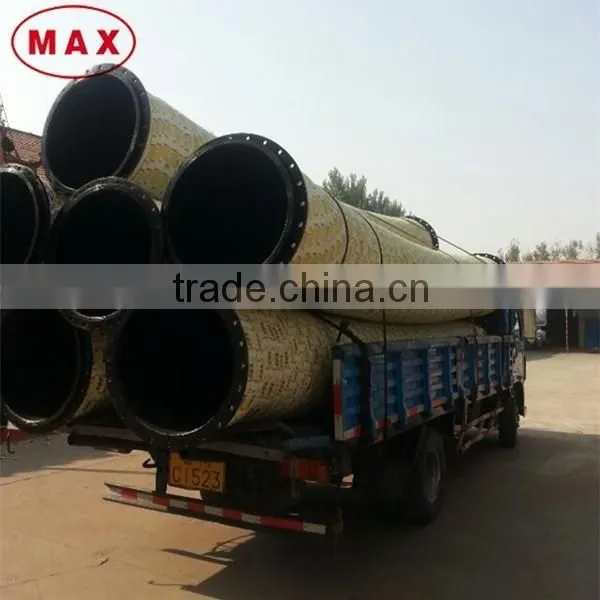

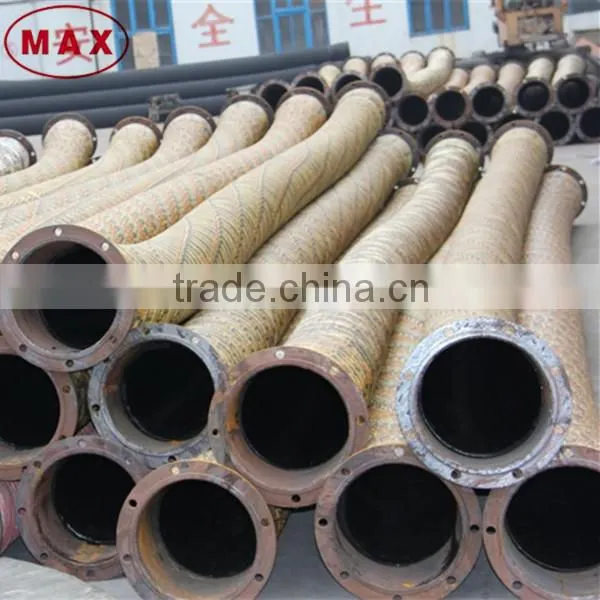

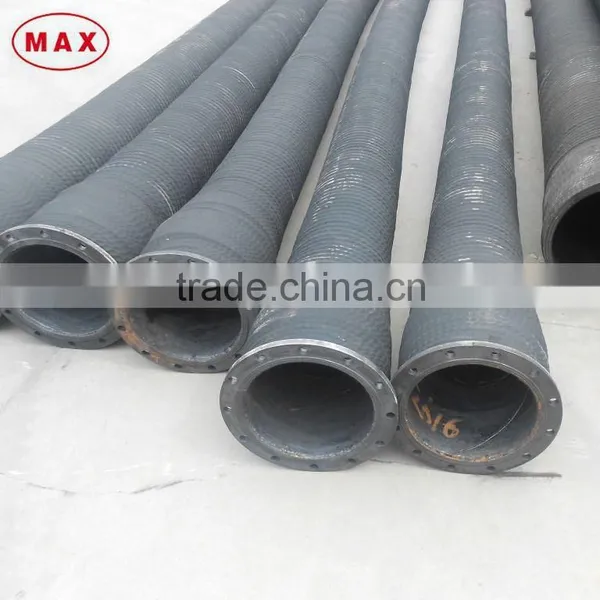

Wire Braided Flange Joint Flexible Hose for Sand Suction Dredge Pump
US$ 30.5 - 560
MOQ: 50 Meters
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
MAX
Model Number:
Rubber Hose Pipe
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai etc
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
150PSI DN350mm, 400mm, 500mm Flange Joint Flexible Hose for DredgingUS$ 30.5 - 560MOQ: 50 Meters -
Flange Joint Braided Flexible Suction Hose for Dredging PumpUS$ 30.5 - 560MOQ: 50 Meters
-
Big Bore of Mud Suction & Discharge Rubber Hose Pipe for DredgingUS$ 30.5 - 560MOQ: 50 Meters
-
Flanged Nipple Type Discharge Rubber Hose for Transportation of SlurryUS$ 30.5 - 560MOQ: 50 Meters
-
15 Bar Dredging Rubber Hose DN500mm for Transportation of SlurryUS$ 30.5 - 560MOQ: 50 Meters
Place of Origin
Henan, China
Brand Name
MAX
Model Number
Rubber Hose Pipe
Specifications
flange joint flexible hoseWire braided flexible rubber hose
Custom-made flange
More than 10 years manufacture experience
Wire braided flange joint flexible hose for sand suction dredge pump
Product Description
Rubber Hose Pipe Applications:
1. Used for mud piping of dredge.
2. Widely used for sucking or discharging of mud,water, oil, air, and Powered in Industry, agriculture, factory, mining and building etc.
1. Used for mud piping of dredge.
2. Widely used for sucking or discharging of mud,water, oil, air, and Powered in Industry, agriculture, factory, mining and building etc.
Rubber Hose Pipe Materials:
Tube: Smooth NR/ synthetic rubber, generally color is black
Reinforcement: one or multilayer spiral fabric reinforcements, steel wire spiral layer,
Cover: Oil, abration and weather-resistant wrapped synthetic rubber.
suction Hose Pipe Structure:
1. The inner rubber liner is composed of wear-proof natural rubber and synthetic rubber
2. The reinforcement layer is composed of high strength rubber dipped chemical fiber and reinforced by spiral metal wire.
3. The rubber cover is composed of natural rubber and synthetic rubber.
4. The surface of the hose takes the shape of corrugated
Performance:
1. Rubber hose pipes are used with dredgers for silt/gravels conveyance.
2. Pipe wall thickness range: from 20mm up to 50mm.
3. The suitable working temperature: from -20°C to +50°C.
4. Abrasion-resistant and bending –resistant.
5. It is convenient to install, flexible to use and safe.
Suction Hose Pipe Specification Table
Ship type | Dredging hose I.D. | Thickness of the steel ring | Number of tyre cord layer | Length |
200m3 /H | 400mm | 35mm | 12 | 1400mm |
350m3/H | 560 mm | 35 mm | 12 | 1500mm |
Beaver1600 | 500 mm | 35mm | 12 | 1500mm |
Beaver3800 | 650 mm | 40mm | 15 | 1500mm |
Beaver4600 | 700 mm | 40mm | 15 | 1500mm |
Note: other size can be customized
Hose Pipe Physical Index:
Testing Item | National Standard of Hose Lining | Standard of the Company |
Tensile Strength at Break (MPa) | >12 | >150 |
Elongation at Break % | >400 | >500 |
Akron Abrasion cm3/1.6km | 1 | <0.8 |
Shore Hardness |
| 63±3 |
Application Temperature °C |
| -40~+60 |
