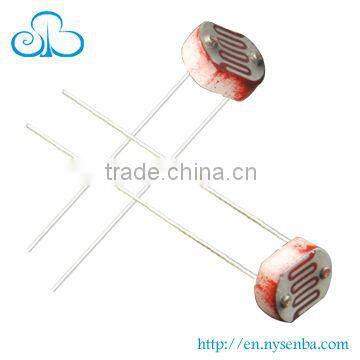

5mm Good Reliability Cds LDR Sensor GL5637-2 From Senba

Name: 5mm Good Reliability Cds LDR Sensor GL5637-2 From Senba
Brand: senba
Availability: InStock

FOB Price

US$ 0.018 - 0.08 / Piece

1000 Pieces(Min. Order)

Port SHENZHEN
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	senba
Model Number	GL5637-2	Type	Photoresistor
Technology	Other, cds	Package Type	Throught Hole
Resistance	30-50Kohms	Resistance Tolerance	0.1
Rated Power	see following	Operating Temperature	-30~70

Product Description

Specifications

1.Good reliability
2.Fast response
3.High sensitivity
4.Coated with epoxy
5.Good spectrum characteristics

GL5637-2 5mm cds GL56 Series Photoresistor

Photoresistor is a resistor which made of semi-conductor material,and the conductance changes with luminance variation .The photoresistor can be manufactured with different figures and illuminate area based on this characteristic.

Performances and Features

Coated with epoxy

Good Reliability

High Sensitivity

Small Volume

Fast Response

Good Spectrum Characteristic

Applications

Switch

Light control

Electronic toy

Light control lamp

Photoelectric control

Industrial control

Camera automatic photometry

Annunciator

Types and Specifications

Specification	Type	Max. Voltage (VDC)	Max. power (mw)	Environmental temp.	Spectrum peak value (nm)
φ5 series	GL5606	150	100	-30~+70	560
	GL5616	150	100	-30~+70	560
	GL5626	150	100	-30~+70	560
	GL5637-1	150	100	-30~+70	560
	GL5637-2	150	100	-30~+70	560
	GL5639	150	100	-30~+70	560
	GL5649	150	100	-30~+70	560

Specification	Light resistance (10Lux) (KΩ)	Dark resistance (MΩ)	r100/10	Response time (ms)		luminance resistance Fig. No.
Specification	Light resistance (10Lux) (KΩ)	Dark resistance (MΩ)	r100/10	Increase	Decrease	luminance resistance Fig. No.
φ5 series	4-7	0.5	0.5	30	30	2
	5-10	0.8	0.6	30	30	2
	10-20	2	0.6	30	30	3
	20-30	3	0.7	30	30	4
	30-50	4	0.8	30	30	4
	50-100	8	0.9	30	30	5
	100-200	15	0.95	30	30	6
