Specifications

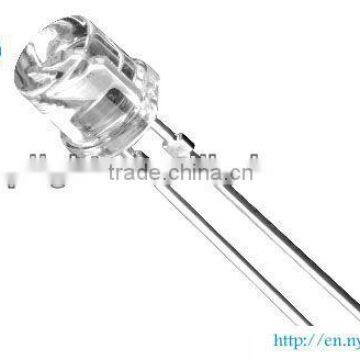

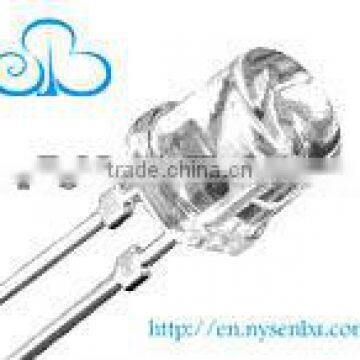

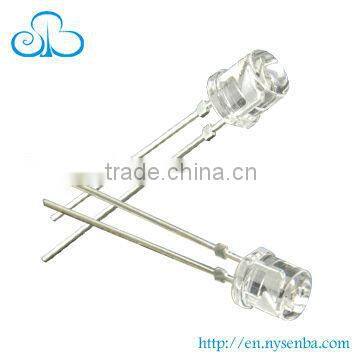

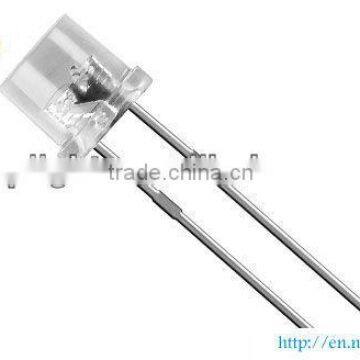

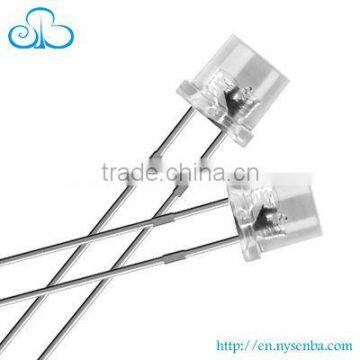

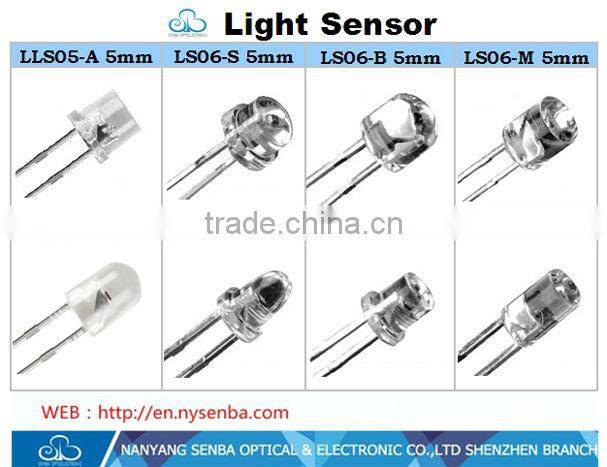

Light Sensor LLS05-ASize: 5.0*4.3mm
Lens Color: Water Clear
Response: 450-700nm
Half Angle: 80degrees
Low Dark Light Sensor with ROHS Approval Biggest Manufacturer
TYPICAL APPLICATIONS
Replacement of Photoresistor (CdS).
Control of backlight brightness for LCD Monitors,TV sets,
PDA ,Cameras and Mobile Phones.
Switch for lighting equipments and Toys.
Testing for daylight.
FEATURES
Linear output conforming to illuminance.
Built-in optical filter for spectral response similar to
that of the human eye.
High Gain Photocurrent Amplifiers IC
Temperature Stable.
Low dark current and Low working Lux.
RoHS Compliant / Pb-free / Cd-free.
Specification
Size: 5.0*4.3mm
Lens Color: Water Clear
Collect Light Current(Vdd=5V, Ev=10Lux): 10uA
Dark Current C-E(Vdd=5V, Ev=0Lux): <50uA
C-E breakdown Voltage(100uA, IB=0): 7.5V
E-C breakdown Voltage(100uA, IB=0): 5V
Response: 450-700nm
Half Angle: 80°
