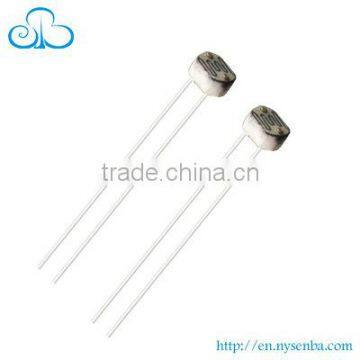

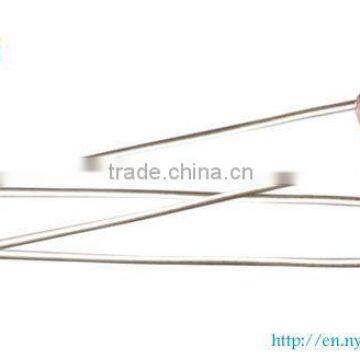

4mm CDS LDR Photoresistor With Good Quality GL4526
- SHENZHEN
- T/T Credit Card
You May Like
-
Low Dark Light Sensor With ROHS Approval Biggest Manufacturer
-
Small Volume Different Light Resistance Dia.3mm Outdoor Photocell GL3516
-
20mm LDR Photo Sensor With Best Price , Fast Shipping
-
5mm Metal Cover Ldr Photo Sensor , Best Price From Largest Manufacurer
-
3mm Photo Light Sensor for Lighting System
-
Super Quality Light Sensor for Sensitive Switch,camera,TV
Product Details
| Place of Origin | Guangdong, China | Brand Name | senba | |
| Model Number | GL4526 | Usage | Other, Metal Oxide | |
| Theory | Optical Sensor | Output | Analog Sensor |
Product Description
Specifications
4mm CDS LDR Photoresistor with good quality1.Good reliability
2.Small volume
3.High sensitivity and Fast response
CDS Photoresistor GL4526
Photoresistor is a resistor which made of semi-conductor material,and the conductance changes
with luminance variation .The photoresistor can be manufactured with different figures and illuminated
area based on this characteristic.Photoresistor is widely used in many industries, such as
toys,lamps,camera,etc.
Performances and Features
Coated with epoxy
Good reliability
Small volume
High sensitivity
Fast response
Good spectrum
Typical Applications
Camera automatic photometry
Photoelectric control
Indoor ray control
Annunciator
Industrial control
Light control switch
Light control lamp
Electronic toy
Specifications
Specification | Type | Max. Voltage (VDC) | Max. power (mw) | Environmental temp. | Spectrum peak value (nm) |
φ4 series | GL4516 | 150 | 50 | -30~+70°C | 540 |
GL4526 | 150 | 50 | -30~+70°C | 540 | |
GL4537-1 | 150 | 50 | -30~+70°C | 540 | |
GL4537-2 | 150 | 50 | -30~+70°C | 540 | |
GL4548-1 | 150 | 50 | -30~+70°C | 540 |
Specification | Light resistance (10Lux) (KΩ) | Dark resistance (MΩ) |
r100/10 | Response time (ms) | Illuminance resistance Fig. No. | |
Increase | Decrease | |||||
φ4 series | 5-10 | 0.6 | 0.5 | 30 | 30 | 3 |
10-20 | 1 | 0.6 | 30 | 30 | 3 | |
20-30 | 2 | 0.6 | 20 | 30 | 4 | |
30-50 | 3 | 0.7 | 20 | 30 | 4 | |
50-100 | 5 | 0.8 | 20 | 30 | 6 | |
