Diameter 63mm-1400mm HDPE Pipe Field Welder Hydraulic
Brief Introduction of HDPE Pipe Field Welder Hydraulic
The welding machine is a butt fusion welding machine featuring automatic alignment, light weight, firmness and portability. It is available for welding of PE, PP and plastic pipes and pipe fittings, widely applied in welding of high-pressure water and gas delivery, chemical engineering and other liquid pipelines.
The host has double-side double-chuck device whose functions can be realized through two hydraulic cylinderse. It is equipped with non-leakage quick connector. The main body can be fixed through the position movement of the pinch plate to achieve the welding of the straight welding pipe and T pipe fittings.
The hydraulic system is lightweight, adopting the open structure, convenient for maintenance, equipped with a chuck open/close control operation lever. The pressure control valve can offer the accurate welding pressure.
The plane cutter can carry out the work through the electric-driven chain and implement the outward cutting.
The heating plate adopts the PTPE coating with the separated-type t emperature digital display,equipped with timer, a voltage meter, a digital display control switch, a group of safety protection switches and two powder sockets.
Milling cutter/heating plate support is equipped with a placement box in order to protect the plane cutter & heating plate. It is also furnished with a wooden delivery box so as to take care of the equipment.
Equipment Parameters of HDPE Pipe Field Welder Hydraulic
| Specification and Model | DRJ-160 | DRJ-250 | DRJ-315 | DRJ-450 | DRJ-630 | DRJ-800 | DRJ-1000 | DRJ-1200 |
|
Surface Temperature Difference of the Heating Plate |
≤±3℃ | ≤±3℃ | ≤±4℃ | ≤±5℃ | ≤±5℃ | ≤±7℃ | ≤±7℃ | ≤±7℃ |
|
Operating Pressure Range of Hydraulic System |
0-10.0MPa | 0-10.0MPa | 0-10.0MPa | 0-10.0MPa | 0-10.0MPa | 0-16.0MPa | 0-16.0MPa | 0-16.0MPa |
| Power of Heating Plate | 1.2KW | 1.8KW | 2.2KW | 4.8KW | 6.8KW | 10.0KW | 11.5KW | 13KW |
| Power of Milling Cutter | 0.75KW | 1.0KW | 1.0KW | 1.1KW | 1.5KW | 2.2KW | 3.0KW | 3.0KW |
|
Power of Hydraulic Pump Station |
0.75KW | 0.75KW | 0.75KW | 1.1KW | 1.1KW | 1.5KW | 1.5KW | 1.5KW |
| Input Voltage | 220V 50-60HZ | 220V 50-60HZ | 220V 50-60HZ | 380V 50-60HZ | 220V 50-60HZ | 380V 50-60HZ | 380V 50-60HZ | 220V 50-60HZ |
| Input Power | 3.0KW | 3.6KW | 4.0KW | 7KW | 9.5KW | 13.7KW | 16KW | 17.5KW |
|
Welding Specification Range(mm) |
63-160 | 110-250 | 160-315 | 280-450 | 450-630 | 560-800 | 710-1000 | 800-1200 |
| Equipment Weight | 110KG | 130KG | 190KG | 400KG | 600KG | 700KG | 2200KG | 3000KG |

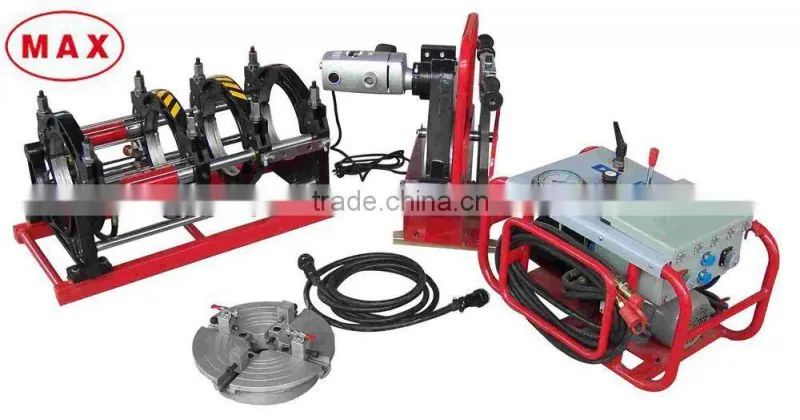

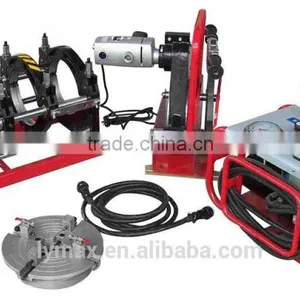

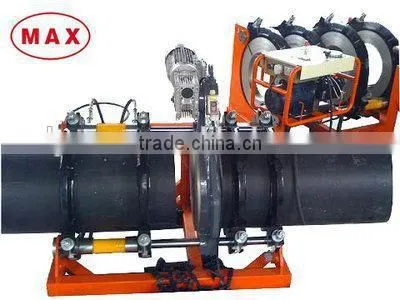

Product Show of HDPE Pipe Field Welder Hydraulic

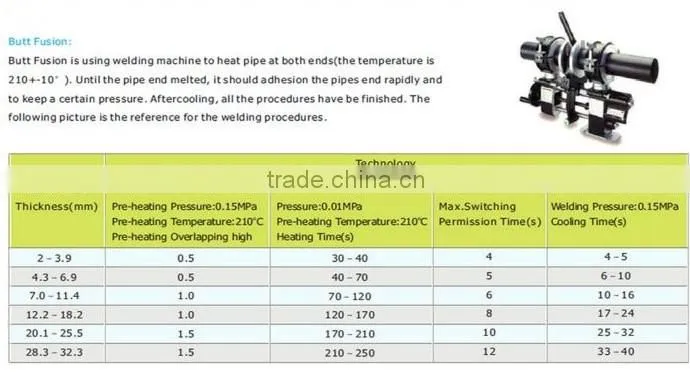

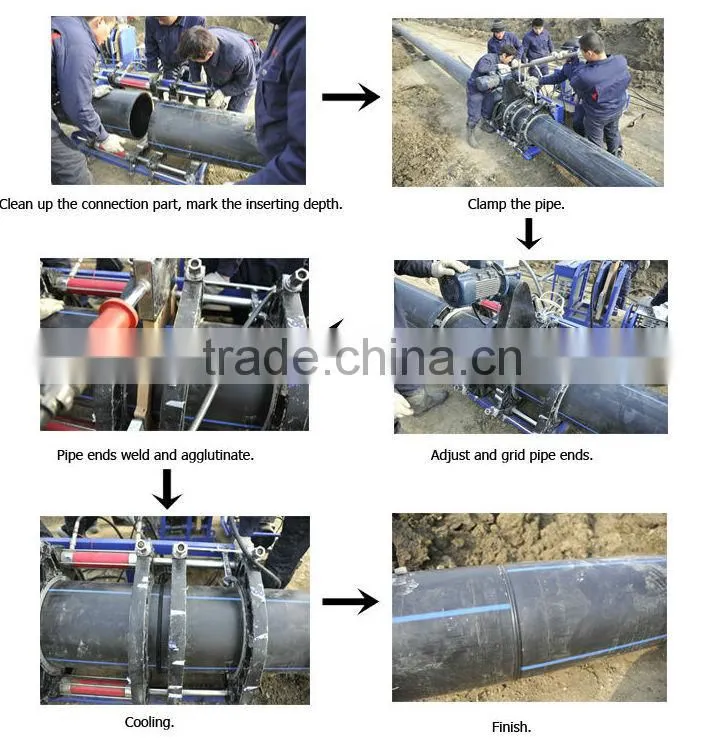

Installation of HDPE Pipe Field Welder Hydraulic

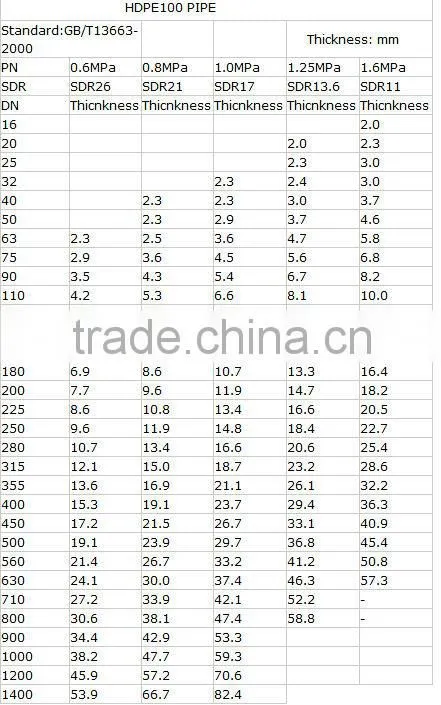

The size of HDPE pipe:
HDPE Pipes and Fittings

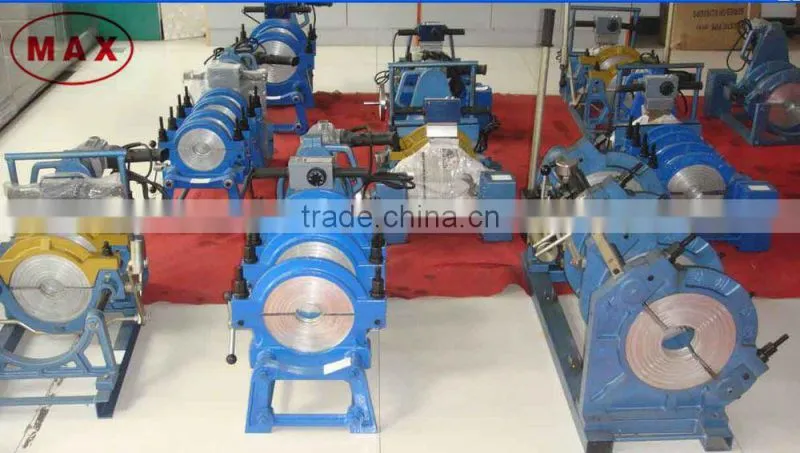

Main Products
Customer Visit
Thanks for concentrating your attention on our products,
we shall make you feel satisfied in return
