HDPE Pipes And HDPE Pipe Fitting Fusion Welding Machine
Brief Introduction of HDPE Pipe Butt Fusion Machine
The welding machine is a butt fusion welding machine featuring automatic alignment, light weight, firmness and portability.It is available for the 63- 315mm welding of PE, PP and plastic pipes and pipe fittings, widely applied in welding of high-pressure water and gas delivery, chemical engineering and other
liquid pipelines.
The host has double-side double-chuck device whose functions can be realized
through two hydraulic cylinderse. It is equipped with non-leakage quick connector.
The main body can be fixed through the position movement of the pinch plate to achieve the welding of the straight welding pipe and T pipe fittings.
The hydraulic system is lightweight, adopting the open structure, convenient for maintenance, equipped with a chuck open/close control operation lever. The pressure control valve can offer the accurate welding pressure.
The plane cutter can carry out the work through the electric-driven chain and implement the outward cutting.
The heating plate adopts the PTPE coating with the separated-type t emperature digital display,equipped with timer, a voltage meter, a digital display control switch, a group of safety protection switches and two powder sockets.
Milling cutter/heating plate support is equipped with a placement box in order to protect the plane cutter & heating plate. It is also furnished with a wooden delivery box so as to take care of the equipment.
Equipment Parameters of HDPE Pipe Welding Machine
| Specification and Model | DRJ-160 | DRJ-250 | DRJ-315 | DRJ-450 | DRJ-630 | DRJ-800 | DRJ-1000 | DRJ-1200 |
|
Surface Temperature Difference of the Heating Plate |
≤±3℃ | ≤±3℃ | ≤±4℃ | ≤±5℃ | ≤±5℃ | ≤±7℃ | ≤±7℃ | ≤±7℃ |
|
Operating Pressure Range of Hydraulic System |
0-10.0MPa | 0-10.0MPa | 0-10.0MPa | 0-10.0MPa | 0-10.0MPa | 0-16.0MPa | 0-16.0MPa | 0-16.0MPa |
| Power of Heating Plate | 1.2KW | 1.8KW | 2.2KW | 4.8KW | 6.8KW | 10.0KW | 11.5KW | 13KW |
| Power of Milling Cutter | 0.75KW | 1.0KW | 1.0KW | 1.1KW | 1.5KW | 2.2KW | 3.0KW | 3.0KW |
|
Power of Hydraulic Pump Station |
0.75KW | 0.75KW | 0.75KW | 1.1KW | 1.1KW | 1.5KW | 1.5KW | 1.5KW |
| Input Voltage | 220V 50-60HZ | 220V 50-60HZ | 220V 50-60HZ | 380V 50-60HZ | 220V 50-60HZ | 380V 50-60HZ | 380V 50-60HZ | 220V 50-60HZ |
| Input Power | 3.0KW | 3.6KW | 4.0KW | 7KW | 9.5KW | 13.7KW | 16KW | 17.5KW |
|
Welding Specification Range(mm) |
63-160 | 110-250 | 160-315 | 280-450 | 450-630 | 560-800 | 710-1000 | 800-1200 |
| Equipment Weight | 110KG | 130KG | 190KG | 400KG | 600KG | 700KG | 2200KG | 3000KG |

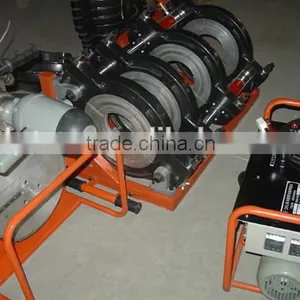

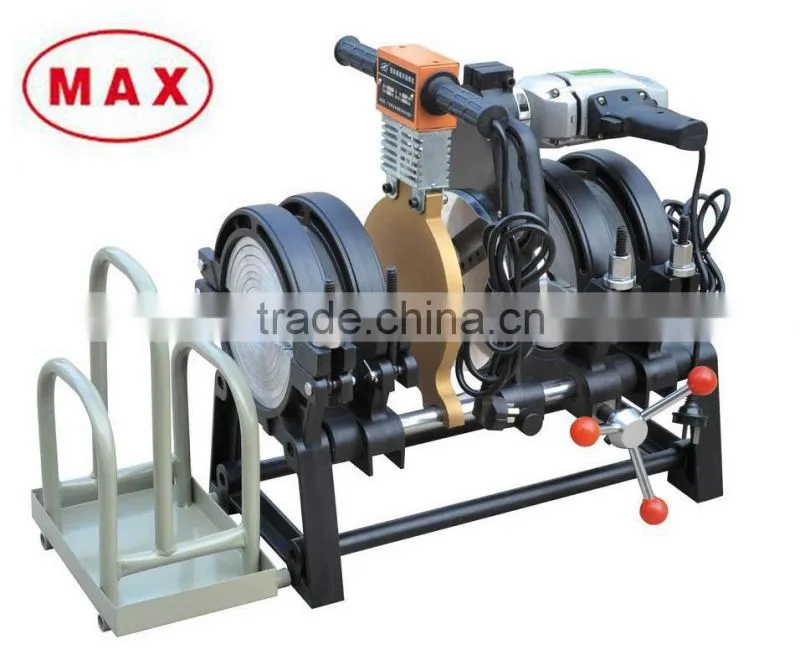

Product Show of HDPE Pipe Butt Fusion Machine

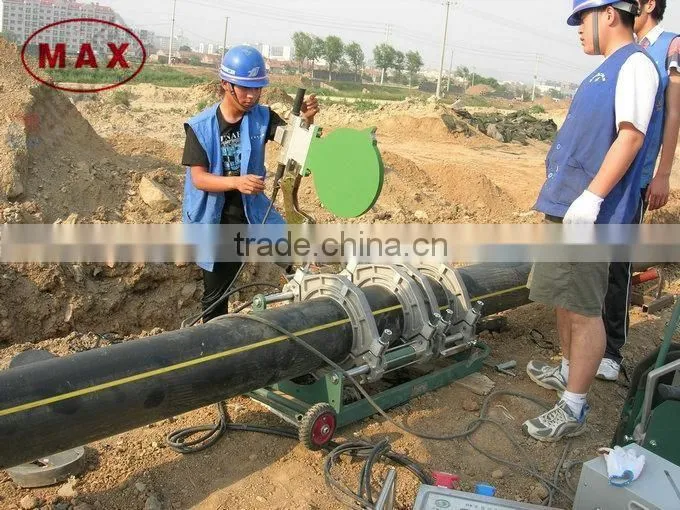

Installation of HDPE Pipe Butt Fusion Machine
The size of HDPE pipe:
HDPE Pipes and Fittings
