Automatic Hydraulic HDPE Pipe Fusion Machine Price
Related Products Of HDPE Pipes
If you are interested in the HDPE pipes, pls click the following HDPE pipe picture for the details.
Brief Introduction of HDPE Pipe Welding Machine
HDPE pipe welding machine is a butt fusion welding machine featuring automatic alignment, light weight, firmness and portability.
HDPE pipe welding machine is available for welding of PE, PP and plastic pipes and pipe fittings, widely applied in welding of high-pressure water and gas delivery, chemical engineering and other liquid pipelines.
The host has double-side double-chuck device whose functions can be realized through two hydraulic cylinderse.
HDPE pipe welding machine is equipped with non-leakage quick connector. The main body can be fixed through the position movement of the pinch plate to achieve the welding of the straight welding pipe and T pipe fittings.
The hydraulic system is lightweight, adopting the open structure, convenient for maintenance, equipped with a chuck open/close control operation lever. The pressure control valve can offer the accurate welding pressure.
The plane cutter can carry out the work through the electric-driven chain and implement the outward cutting.
The heating plate adopts the PTPE coating with the separated-type t emperature digital display,equipped with timer, a voltage meter, a digital display control switch, a group of safety protection switches and two powder sockets.
Milling cutter/heating plate support is equipped with a placement box in order to protect the plane cutter & heating plate. It is also furnished with a wooden delivery box so as to take care of the equipment.
We have many types of HDPE pipes welding machines used for welding different sizes HDPE pipes.
The HDPE pipe welding machine is semi-automatic and hydraulic type.
Used for HDPE pipes sizes range 63-1400mm.
Equipment Parameters of HDPE Pipe Welding Machine
| Specification and Model | DRJ-160 | DRJ-250 | DRJ-315 | DRJ-450 | DRJ-630 | DRJ-800 | DRJ-1000 | DRJ-1200 |
|
Surface Temperature Difference of the Heating Plate |
≤±3℃ | ≤±3℃ | ≤±4℃ | ≤±5℃ | ≤±5℃ | ≤±7℃ | ≤±7℃ | ≤±7℃ |
|
Operating Pressure Range of Hydraulic System |
0-10.0MPa | 0-10.0MPa | 0-10.0MPa | 0-10.0MPa | 0-10.0MPa | 0-16.0MPa | 0-16.0MPa | 0-16.0MPa |
| Power of Heating Plate | 1.2KW | 1.8KW | 2.2KW | 4.8KW | 6.8KW | 10.0KW | 11.5KW | 13KW |
| Power of Milling Cutter | 0.75KW | 1.0KW | 1.0KW | 1.1KW | 1.5KW | 2.2KW | 3.0KW | 3.0KW |
|
Power of Hydraulic Pump Station |
0.75KW | 0.75KW | 0.75KW | 1.1KW | 1.1KW | 1.5KW | 1.5KW | 1.5KW |
| Input Voltage | 220V 50-60HZ | 220V 50-60HZ | 220V 50-60HZ | 380V 50-60HZ | 220V 50-60HZ | 380V 50-60HZ | 380V 50-60HZ | 220V 50-60HZ |
| Input Power | 3.0KW | 3.6KW | 4.0KW | 7KW | 9.5KW | 13.7KW | 16KW | 17.5KW |
|
Welding Specification Range(mm) |
63-160 | 110-250 | 160-315 | 280-450 | 450-630 | 560-800 | 710-1000 | 800-1200 |
| Equipment Weight | 110KG | 130KG | 190KG | 400KG | 600KG | 700KG | 2200KG | 3000KG |

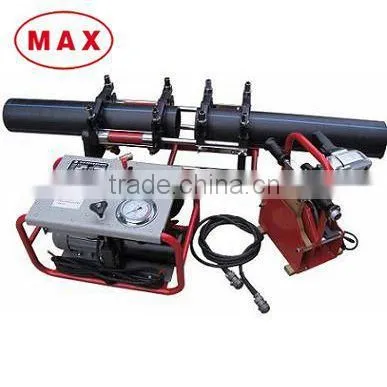

Product Show of HDPE Pipe Welding Machine
Installation of HDPE Pipes Welding Machine
Application of HDPE Pipe Welding Machine On Construction Site
HDPE Pipe Welding Machines Types Based on the Following Specification of HDPE Pipes
|
Outer Diameter (mm) |
Standard Dimensions |
||||
SDR33 |
SDR21 |
SDR17 |
SDR13.6 |
SDR11 |
|
Normal Pressure(Mpa) | |||||
0.6 |
0.8 |
1 |
1.25 |
1.6 |
|
Thickness(mm) |
Thickness(mm) |
Thickness(mm) |
Thickness(mm) |
Thickness(mm) |
|
20 |
2.3 |
||||
25 |
2.0 |
2.3 |
|||
32 |
2.3 |
2.4 |
3.0 |
||
40 |
2.3 |
2.3 |
3.0 |
3.7 |
|
50 |
2.3 |
2.9 |
3.7 |
4.6 |
|
63 |
2.3 |
2.5 |
3.6 |
4.7 |
5.8 |
75 |
2.9 |
3.6 |
4.5 |
5.6 |
6.8 |
90 |
2.8 |
4.3 |
5.4 |
6.7 |
8.2 |
110 |
3.4 |
5.3 |
6.6 |
8.1 |
10.0 |
125 |
3.9 |
6.0 |
7.4 |
9.2 |
11.4 |
140 |
4.3 |
6.7 |
8.3 |
10.3 |
12.7 |
160 |
4.9 |
7.7 |
9.5 |
11.8 |
14.6 |
180 |
5.5 |
8.6 |
10.7 |
13.3 |
16.4 |
200 |
6.2 |
9.6 |
11.9 |
14.7 |
18.2 |
225 |
6.9 |
10.8 |
13.4 |
16.6 |
20.5 |
250 |
7.7 |
11.9 |
14.8 |
18.4 |
22.7 |
280 |
8.6 |
13.4 |
16.6 |
20.6 |
25.4 |
315 |
9.7 |
15.0 |
18.7 |
23.2 |
28.6 |
355 |
10.9 |
16.9 |
21.1 |
26.1 |
32.2 |
400 |
12.3 |
19.1 |
23.7 |
29.4 |
36.3 |
450 |
13.8 |
21.5 |
26.7 |
33.1 |
40.9 |
500 |
15.3 |
23.9 |
29.7 |
36.8 |
45.4 |
560 |
17.2 |
26.7 |
33.2 |
41.2 |
50.8 |
630 |
19.3 |
30.0 |
37.4 |
46.3 |
57.2 |
710 |
21.8 |
33.9 |
42.1 |
52.2 |
- |
800 |
24.5 |
38.1 |
47.4 |
58.8 |
- |
900 |
27.6 |
42.9 |
53.3 |
||
1000 |
30.6 |
47.7 |
59.3 |
||
1200 |
36.4 |
57.2 |
70.6 |
||
1400 |
42.4 |
66.7 |
82.4 |
||
Main Products
Customer Visit
Thanks for concentrating your attention on our products---HDPE Pipe Welding Machine, we shall make you feel satisfied in return.
