Specifications
pe gas pipeMaterial: PE80, PE100
PN Grade: SDR17.6 PN<=6,SDR11 PN<=10
working temperature: -20~40 degree
High-density Polyethylene Gas Supply Pipe /PE Gas Pipe
1.Corrosion resistant: corrosion resistance of chemical mediator , no electrochemical corrosion
2.Low friction drag: smooth interior walls leads to low friction drag
3.Excellent flexibility: can be coiled
4.Excellent workability: be convenient for transporting and installing because of light weight
5.Longevity: more than 50 years under proper use
6.Various joint availability: butt fusion joint and electrofusion joint available to make sure the identity of interfaces, structure and pipe body Safety and health.

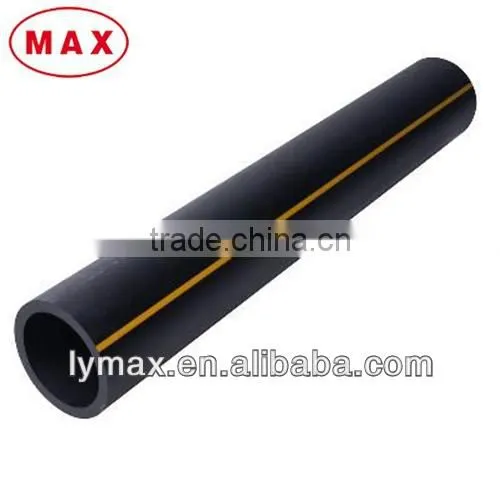

Black HDPE Gas Pipe with Yellow Strip
|
Nominal External Diameter dn, mm |
PE80 |
PE100 |
||
SDR17.6 |
SDR11 |
SDR17.6 |
SDR11 |
|
|
Pressure Nominal PN≤0.2 MPa |
Pressure Nominal PN≤0.4 MPa |
Pressure Nominal PN≤0.6 MPa |
Pressure Nominal PN≤1.0 MPa |
|
|
Nominal Thickness en,mm |
Nominal Thickness en,mm |
Nominal Thickness en,mm |
Nominal Thickness en,mm |
|
20 |
2.3 |
3 |
2.3 |
3 |
25 |
2.3 |
3 |
2.3 |
3 |
32 |
2.3 |
3 |
2.3 |
3 |
40 |
2.3 |
3.7 |
2.3 |
3.7 |
50 |
2.9 |
4.6 |
2.9 |
4.6 |
63 |
3.6 |
5.8 |
3.6 |
5.8 |
75 |
4.3 |
6.8 |
4.3 |
6.8 |
90 |
5.2 |
8.2 |
5.2 |
8.2 |
110 |
6.3 |
10 |
6.3 |
10 |
160 |
9.1 |
14.6 |
9.1 |
14.6 |
200 |
11.4 |
18.2 |
11.4 |
18.2 |
250 |
14.2 |
22.7 |
14.2 |
22.7 |
280 |
15.9 |
25.4 |
15.9 |
25.4 |
315 |
17.9 |
28.6 |
17.9 |
28.6 |
355 |
20.2 |
32.3 |
20.2 |
32.3 |
400 |
22.8 |
36.4 |
22.8 |
36.4 |
450 |
25.6 |
40.9 |
25.6 |
40.9 |
500 |
28.4 |
45.5 |
28.4 |
45.5 |
560 |
31.9 |
50.9 |
31.9 |
50.9 |
630 |
35.8 |
57.3 |
35.8 |
57.3 |
High-desity Polyethylene Pipe Series
