HDPE oil and gas pipe pe fittings
HDPE gas pipe features:
1. Health: nontoxic, not scaling. It does not contain heavy metal additive and will not breed
bacterium
2. Chemical resistance
3.Size: 20mm to 630mm
4.Thickness:2.3-35.8mm
5.Pressure Rating:0.6Mpa,0.8Mpa,1.0Mpa,1.25Mpa,1.60Mpa
6. Color: Black,black or other colors on request
7.Connection:socket fusion joint,butt fusion joint,electro fusion joint,flanged joint
8.Standard:GB/T13663-2000
9.Certification:ISO9001:2008
HDPE gas pipe Advantages:
1.Nontoxic: no heavy metal additives, would not be covered with dirt or contaminated by
bacterium
2.Corrosion Resistant: resist chemical matters or electron chemical corrosion
3.Lower Installation Costs: light weight and ease of installation can reduce installation costs by as
much as 50% over metal piping system
4.Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than
metal pipe
5.Longevity: more than 50 years under proper use
6.Recycled and Environment-friendly
HDPE gas pipe characteristics:
- Chemical stability, resistant to different kinds of acids, alkali, and salt;
- Good RCP performance and SCP performance;
- Long working life, and convenient installation and maintenance;
- Excellent shock resistance, anti-earthquake and –twists;
Application: delivery of natural gas, liquefied petroleum gas (LPG), and artificial coal gas.
Category: according to raw materials—PE 80 and PE 100; each category has two working pressure: SDR11 and SDR17.6; nominal diameter: 16~630mm;
Technical parameter: conform the national standard: GB 15558.1-2003
HDPE gas pipe specification:
| SDR17.6 | SDR 11 | |||
| Diameter (mm) | WALL THICKNESS | approx. weight | WALL THICKNESS | approx. weight |
| (mm) | (per meter) | (mm) | (per meter) | |
| 16 | 2.3 | 0.109 | 3 | 0.124 |
| 20 | 2.3 | 0.135 | 3 | 0.162 |
| 25 | 2.3 | 0.173 | 3 | 0.211 |
| 32 | 2.3 | 0.229 | 3 | 0.29 |
| 40 | 2.3 | 0.29 | 3.7 | 0.449 |
| 50 | 2.9 | 0.46 | 4.6 | 0.684 |
| 63 | 3.6 | 0.72 | 5.8 | 1.08 |
| 75 | 4.3 | 1.01 | 6.8 | 1.51 |
| 90 | 5.2 | 1.53 | 8.2 | 2.2 |
| 110 | 6.3 | 2.15 | 10 | 3.28 |
| 125 | 7.1 | 2.73 | 11.4 | 4.23 |
| 140 | 8 | 3.48 | 12.7 | 5.27 |
| 160 | 9.1 | 4.52 | 14.6 | 6.88 |
| 180 | 10.3 | 5.75 | 16.4 | 8.75 |
| 200 | 11.4 | 5.69 | 18.2 | 10.98 |
| 225 | 12.8 | 8.82 | 20.5 | 13.98 |
| 250 | 14.2 | 10.91 | 22.7 | 17.5 |
| 280 | 15.9 | 13.64 | 25.4 | 21.86 |
| 315 | 17.9 | 17.77 | 28.6 | 27.55 |
| 355 | 20.2 | 22.78 | 32.3 | 34.98 |
| 400 | 22.8 | 29.43 | 36.4 | 44.33 |
| 450 | 25.6 | 36.79 | 40.9 | 55.58 |
| 500 | 28.4 | 45.32 | 45.5 | 69.12 |
| 560 | 31.9 | 56.98 | 50.9 | 87.45 |
| 630 | 35.8 | 72.94 | 57.3 | 97.24 |

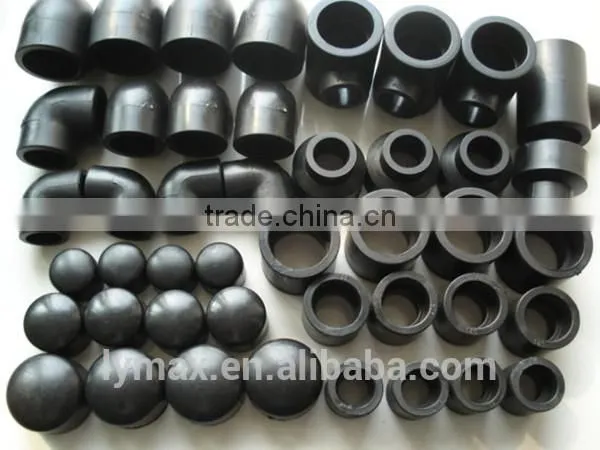

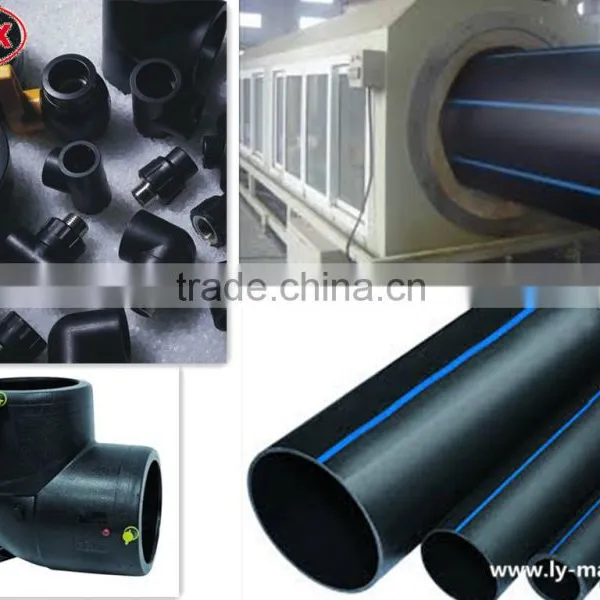

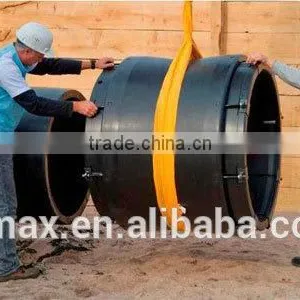

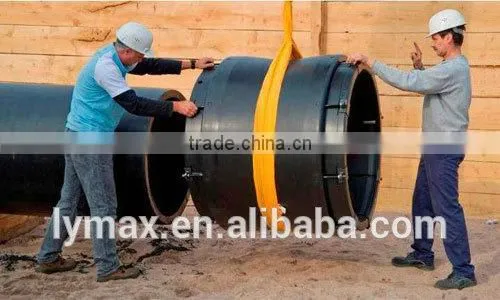

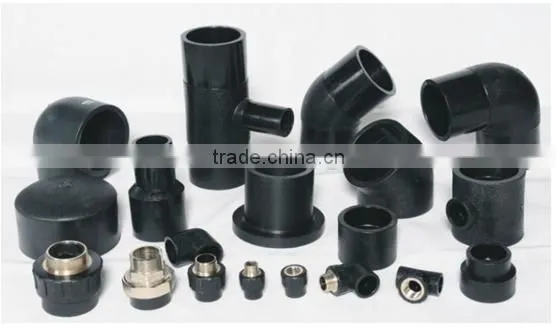

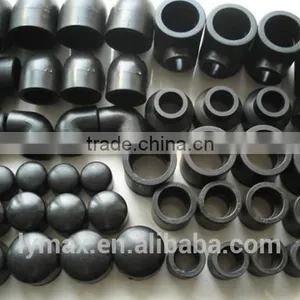

HDPE gas pipe photo:
Product line:
Work shop:
Our customers:

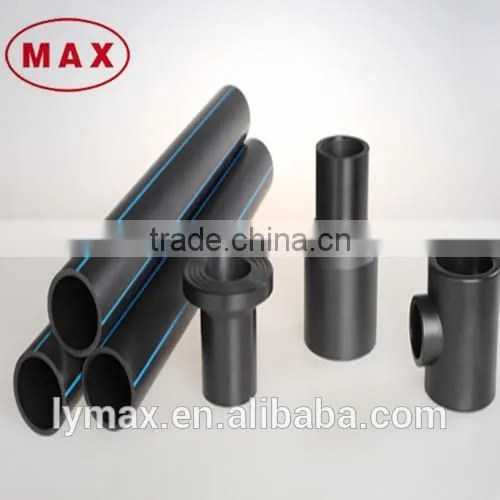

Main product:
If you have any questions, you can feel free to contact me in anytime ! welcome to our company!
