medium frequency induction melting gold furnance

Specifications

1. USD2300-USD30K
2. 15-340KW, 1-20KHZ
3. Capacity:1-800KGS
4. ISO9001:2000; CE
5. Adjustable power,Freq.etc

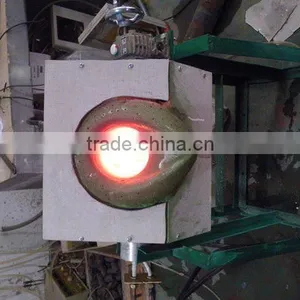

Medium frequency induction metal melting furnance DDZP-35







The device operating frequency (1~ 20KHz) higher than the operating frequency induction melting furnace, melting furnace, compared with the ordinary higher thermal efficiency.



Features: Suitable for small accessories, precision casting process.



1, the installation and operation is very easy to learn and use.

2, ultra-small size, light weight, removable, covers an area of less than 2 square meters.

3, 24 hours a day melting capacity.

4, high thermal efficiency, energy saving.

5, to facilitate replacement of different weight, different materials, different from the way the furnace furnace to meet the requirements of various melting







 Purpose:





Appropriate to precious metals such as gold, platinum, silver and other metals smelting. University laboratories, research institutes, jewelry processing, casting the ideal equipment for processing.



the main model and application:



Specification	Smelting capacity
DDZP-1 15KW Melting furnace	4KG
DDZP-25 25KW Melting furnace	5KG or 10KG
DDZP-35 35KW Melting furnace	10KG or 15KG
DDZP-45 45KW Melting furnace	25KG or 30KG
DDZP-70 70KW Melting furnace	40KG or 50KG







Welcome to contact me, Dongda Industrial Co., Ltd



...
