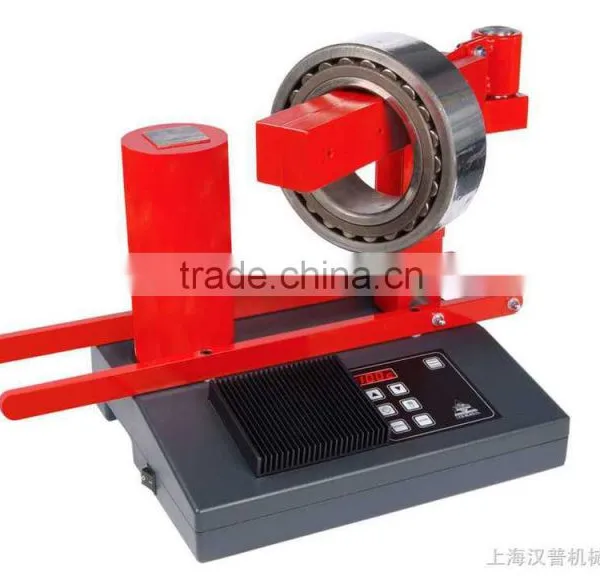

bearing heater machine /bear heater
this is the technology data for the bearing heating machine working demands
it could be show the bearing heating machine suitable for the bearing inner diameters 20-120mm
this is the bearing heating machine for the bearing heating working demands it could be best design for those machine working
this is the bearing heating machine for the machine
Advantages of BHM Serious Induction Heaters: | |
Control Method and Display for Users |
A Solid Industrial Design |
Power |
0.5-1.0kw |
Temperature control |
0-180℃ |
Voltage |
220V |
Time control |
0-99,59,, |
Current |
2.3-4.5A |
Continuous installation |
Yes |
adapt bearing inner diameter |
20-120mm |
Maintain temperature |
Yes |
largest bearing outside diameter |
260mm |
Automatic demagnetization |
Yes |
largest bearing width |
120mm |
Self-adjusting power |
Yes |
Largest bearing weight (kg ) |
15 |
Control panel (display) |
Digital Display |
Other parts (kg ) |
10 |
Forced air-cooled design |
Yes |
The host weight |
3kg |
Dimensions(cm) |
40*21*30 |
Frequency |
50Hz |
Overheatingprotection |
Yes |
this is the bearing heating use , it could be best suitable for the bear heating working demands
1, Connect the power (220V/380V) and instrument lights on.
2, Instructions in accordance with the instrument temperature, press“∧”or“∨”Set the heating to the desired temperature,Then Press"START"to Start,press"STOP"to stop.
3, Indicated by the instrument time,press “∧”or“∨”Set the heating time required,press the "START", and start the heating. Press the "STOP" to stop.
4, According to the work piece diameter select heating yoke, the work piece is heated sleeve on the yoke (or set the pole), the yoke on the transformer two pillars end face and pressed activities of yoke. (Note: in the column end face of the to wipe butter.)
5, Sensor sucked into the work piece, press the "START", and start the heating. Press the "STOP" to stop.
6, When the set heating temperature (time) reaches the set value, the machine automatically stops working.
7, Remove the work piece after the end of the installation.
this is the advantege for the bearing heating machine working demands it could be best suitable for the induction heating machine working demands use
this is the shipping and express for the bearing heating working
