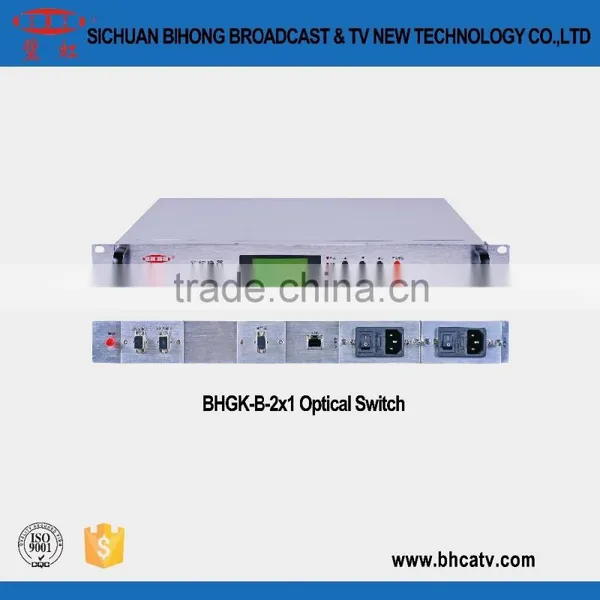

BHGK-B-2x1 Optical Switch
The Main Features
- Adopting advanced 32bit processors, together with improved auto monitoring system circuits.
- 1U standard structure, luxury aluminum alloy case and built-in LCD on front panel
- Ethernet RJ45 network management interface in conformity with 1EEE802.3 10Base-1T
- Short response time, alarm signal output and display;
- Quality efficient plug-in hot-backup dual switch power supplies can work with 110~264V commercial supply.
Main Technical Parameters of BHGK-B-2x1 Optical Switch | ||
| Items | unit | Parameter |
| Working wavelength | nm | 1310±50 & 1550±50 |
| Monitor light power range | dBm |
Type B + 23 ~ - 10; Type D + 3 ~ -30 |
| Accuracy of monitoring optical power | dBm | ±0.25 |
| Resolution of monitor optical power | dB | ≤0.3 |
| Return loss | dB | ≥50 |
| Polarization dependent loss | dB | ≤0.1 |
| Wavelength related loss | dB | ≤0.25 |
| Insertion loss | dB | ≤1.3 |
| Switch time | ms | ≤10 |
| The working life | time | >1,000,0000 |
| Working temperature | ℃ | -5~+50 |
| Storage temperature | ℃ | -10~+60 |
| The power supply | V | AC220 |
| interface | SC/APC, FC/APC or user-defined | |
| ewhole machine power consumption | ≤8 | |
| Installation dimensions | 1U standard case | |
1, If product has any quality problem caused by our reason would be replaced for free.
2, 24 hours telephone service for after-sales technical support.
