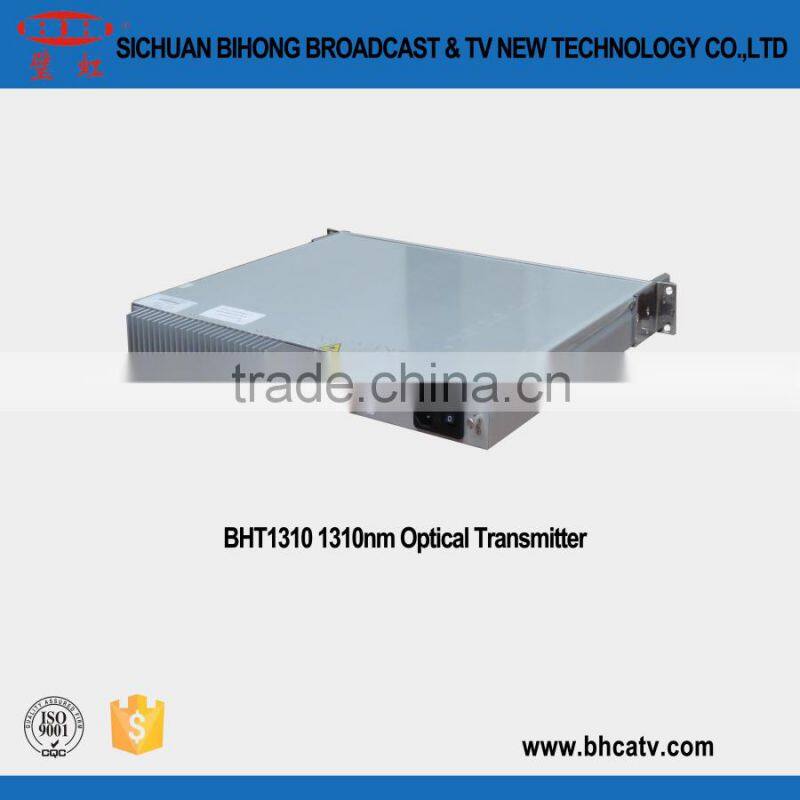

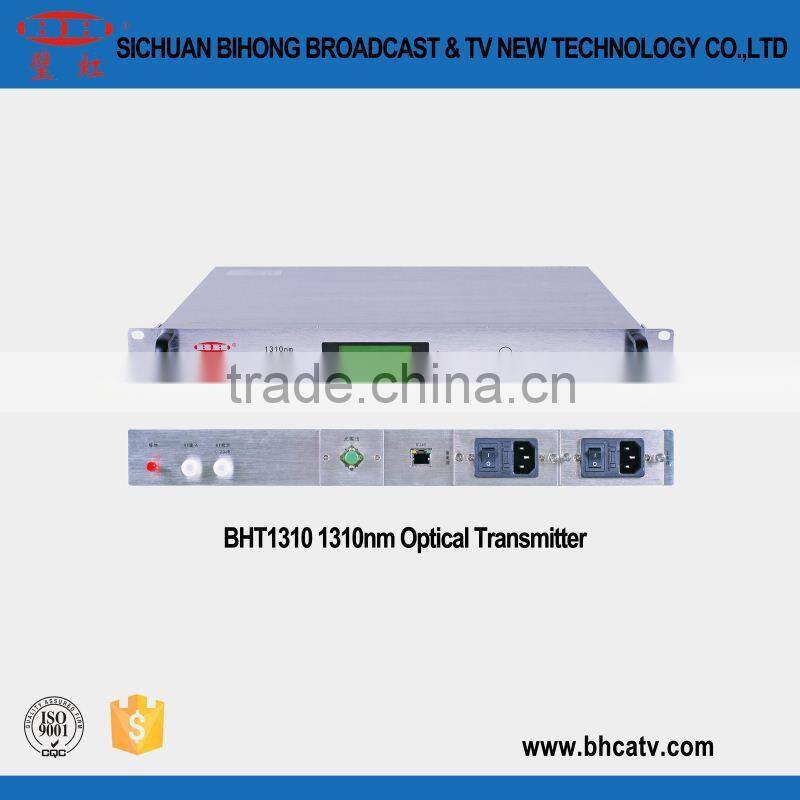

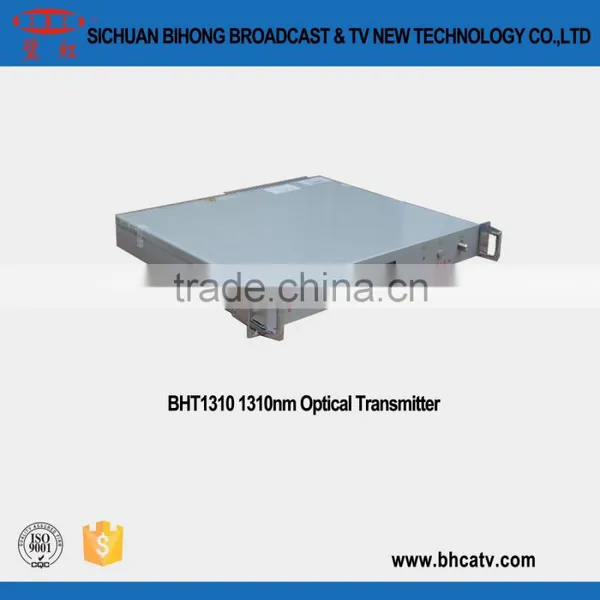

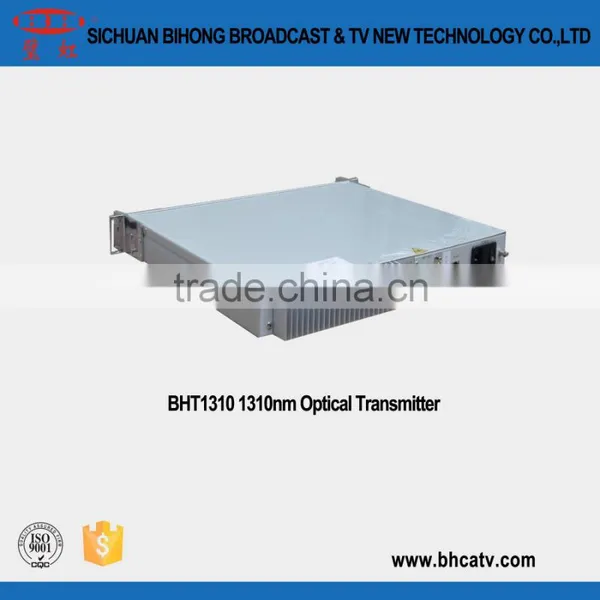

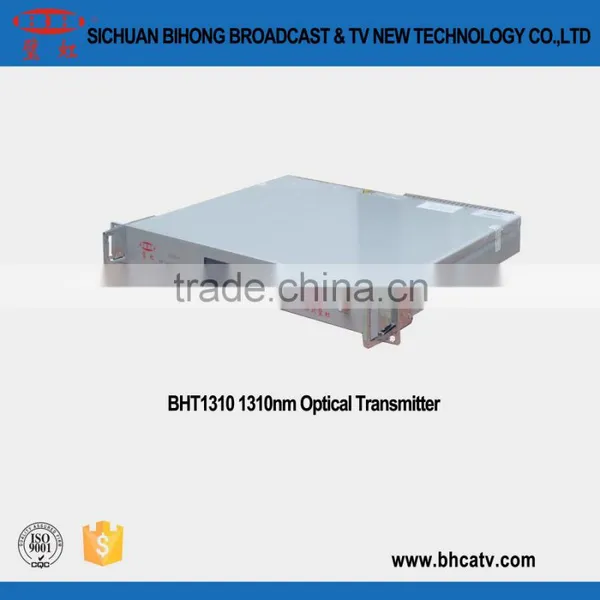

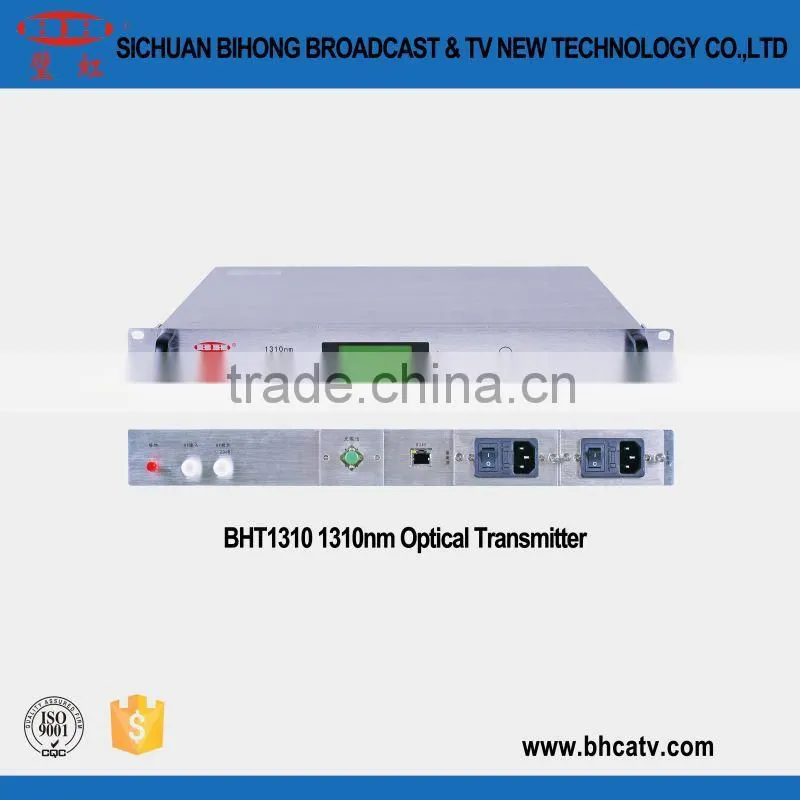

1310nm optical transmitter
The Main Features
1, Adopt DFB laser like American Agere (ORTEL, Luncent), MITSUBISHI, Fujitsu, AOI, BLD, etc.;
2, The high-performance RF signal predistortion circuit design ;
3, RJ45 standard network management interface conforms to GB/T20030-2005 hybrid fiber coax equipment management system specification;
4, Luxury 1U standard case and quality efficient plug-in hot-backup dual switch power supplies can work with 110~264V commercial supply.
| The main technical indicators | ||||||||||
| Model | BHT1310 | |||||||||
| Optical power (mW) | 02 | 04 | 06 | 08 | 10 | 12 | 14 | 16 | 18 | 20 |
| Optical power (dBm) | 3.0 | 6.0 | 7.8 | 9.0 | 10.0 | 10.8 | 11.5 | 12.0 | 12.6 | 13.0 |
| Optical wavelength (nm) | 1310±20 | |||||||||
| Optical fiber connector | FC/APC or SC/APC | |||||||||
| Working bandwidth (MHz) | 45~750/860/1000 | |||||||||
| Channel number (road) | 84 | |||||||||
| CNR (dB) | 51 | |||||||||
| CTB(dBc) | ≤-65 | |||||||||
| CSO dBc) | ≤-60 | |||||||||
| RF input level (dB mu V) | 78 | |||||||||
| In-band roughness (dB) | ≤0.75 | |||||||||
| AGC control area (dB) | ±4 | |||||||||
| Power consumption (W) | ≤30 | |||||||||
| Power supply voltage (VAC) | 220V(110~264) | |||||||||
| Working temperature (℃) | -10~50 | |||||||||
| Installation dimensions | 1U standard case | |||||||||
1, If product has any quality problem caused by our reason would be replaced for free.
2, 24 hours telephone service for after-sales technical support.
